AR68.30-P-4700K Remove/Install B-Pillar Paneling



AR68.30-P-4700K Remove/Install B-pillar Paneling

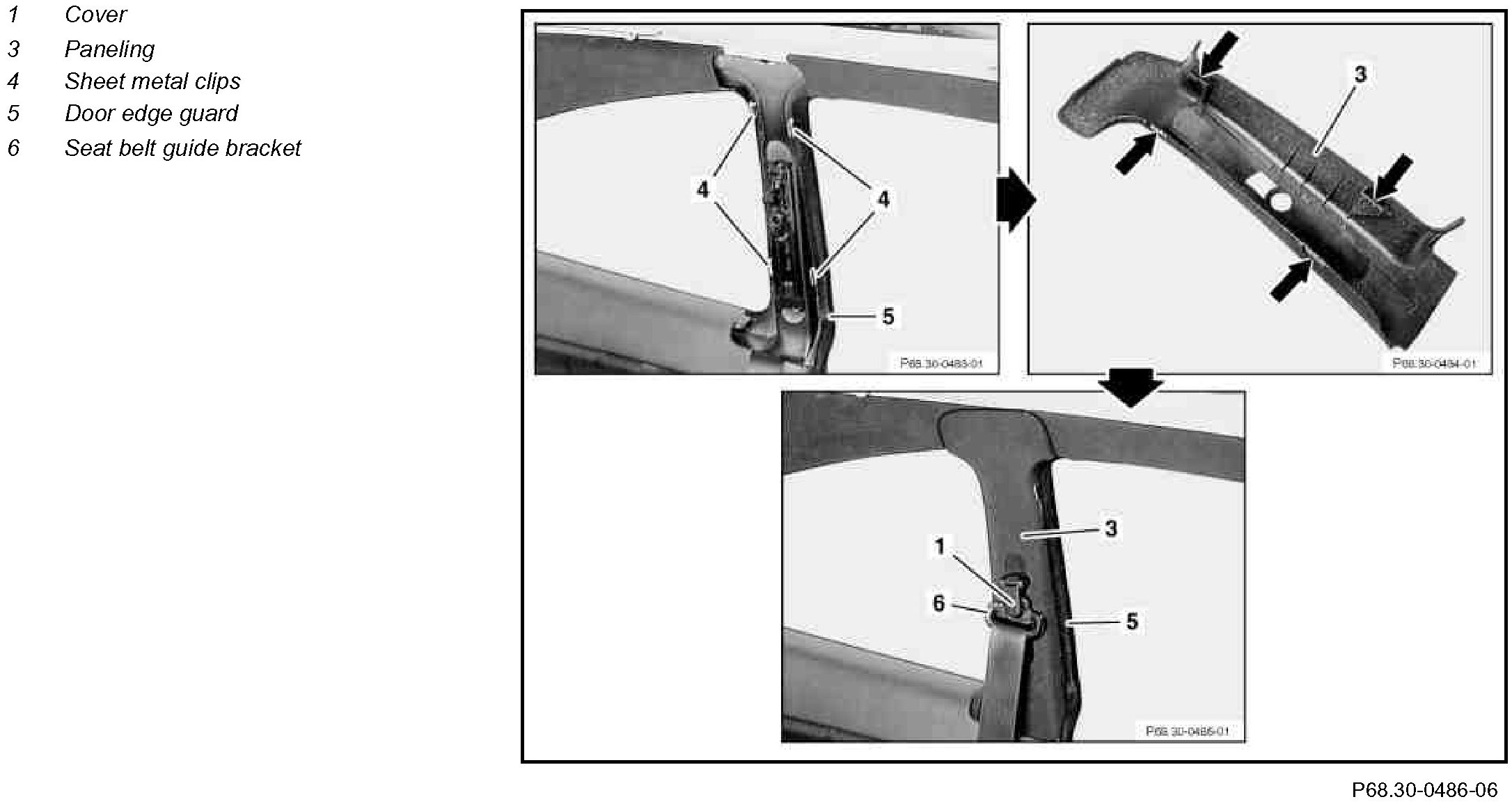

Component Identification:

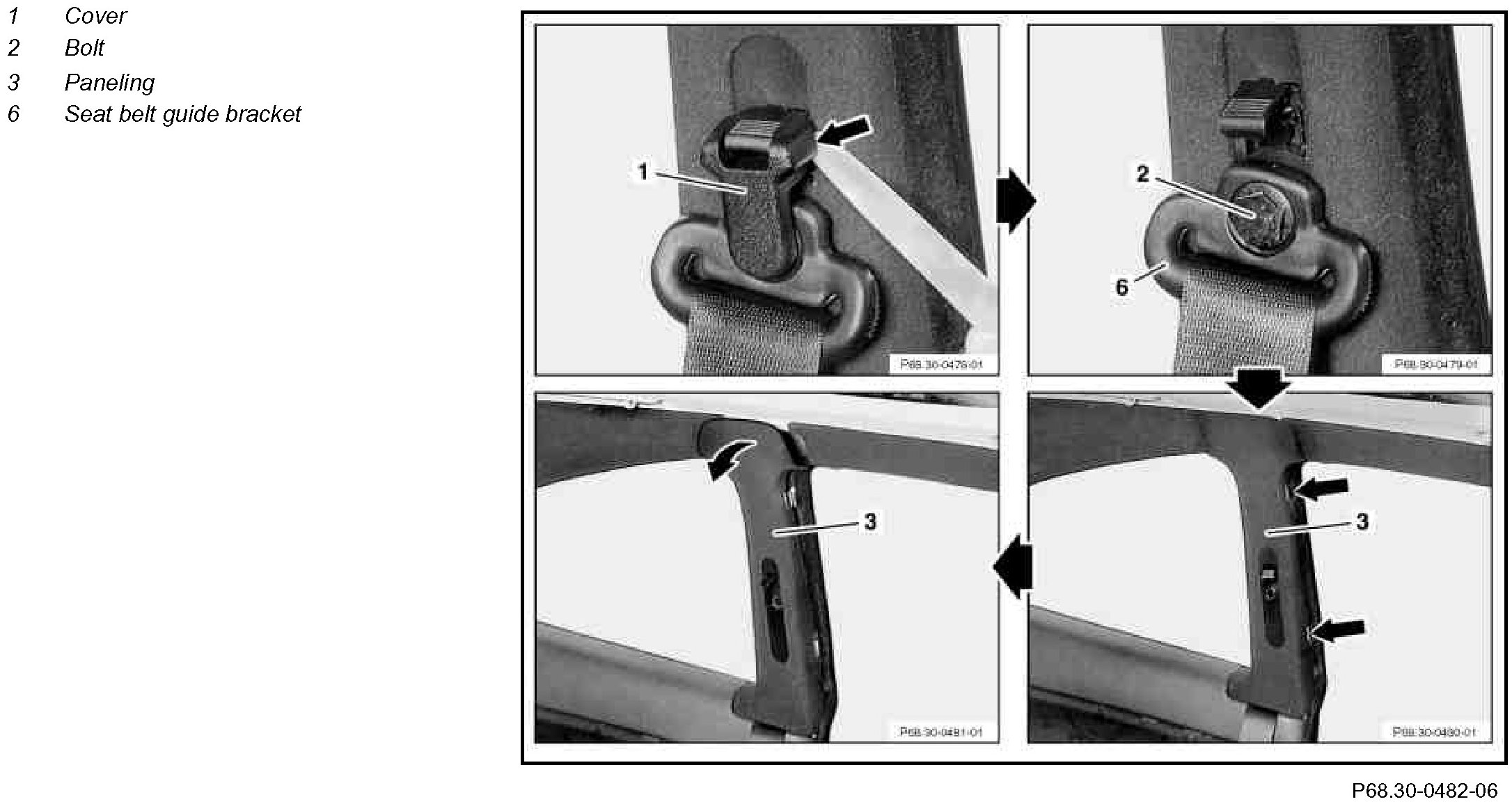

Component Identification:

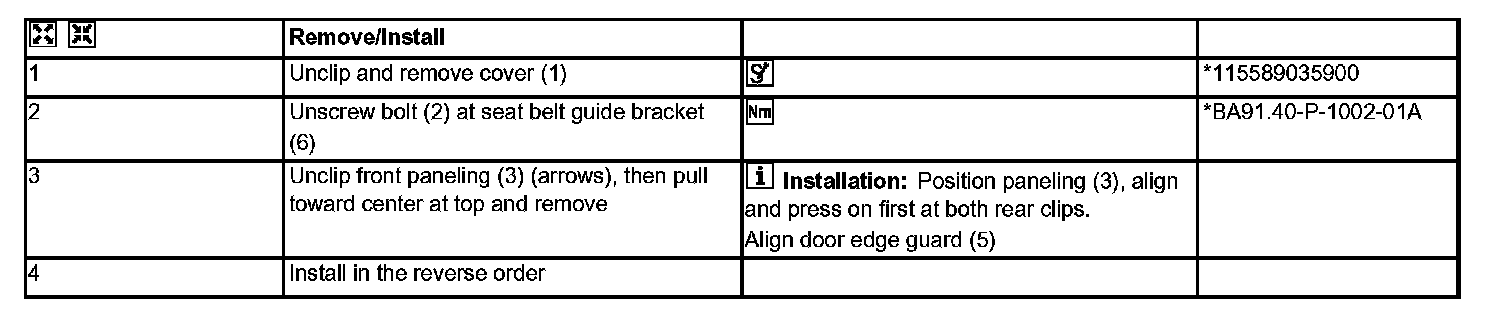

Steps 1 - 4:

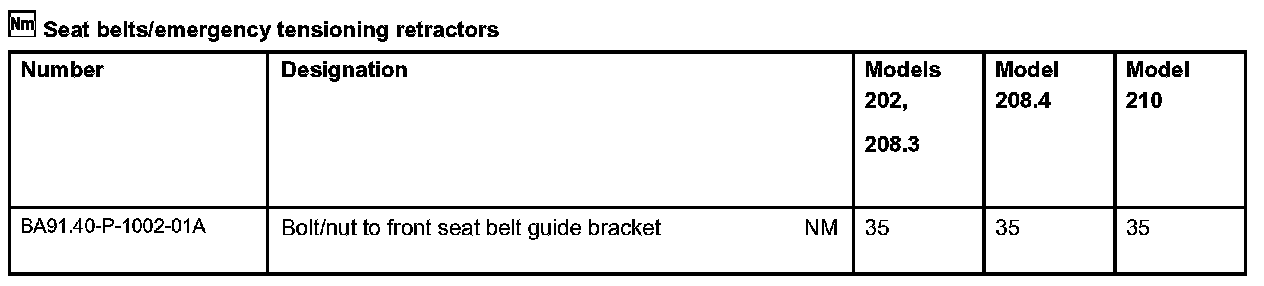

Seat Belts/Emergency Tensioning Retractors:

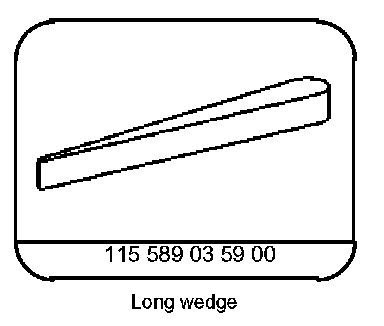

Special Tools:
