AR68.30-P-4050K Remove/Install Paneling on A-Pillar
AR68.30-P-4050K Remove/Install Paneling on A-Pillar
AR68.30-P-4050K Removing And Installing Paneling On A-pillar

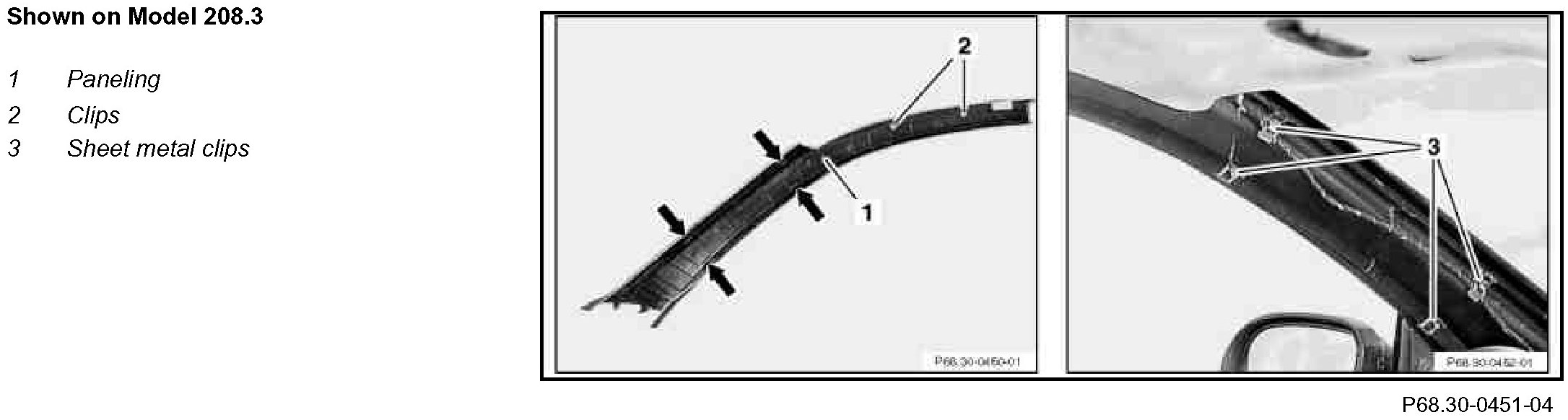

Component Identification:

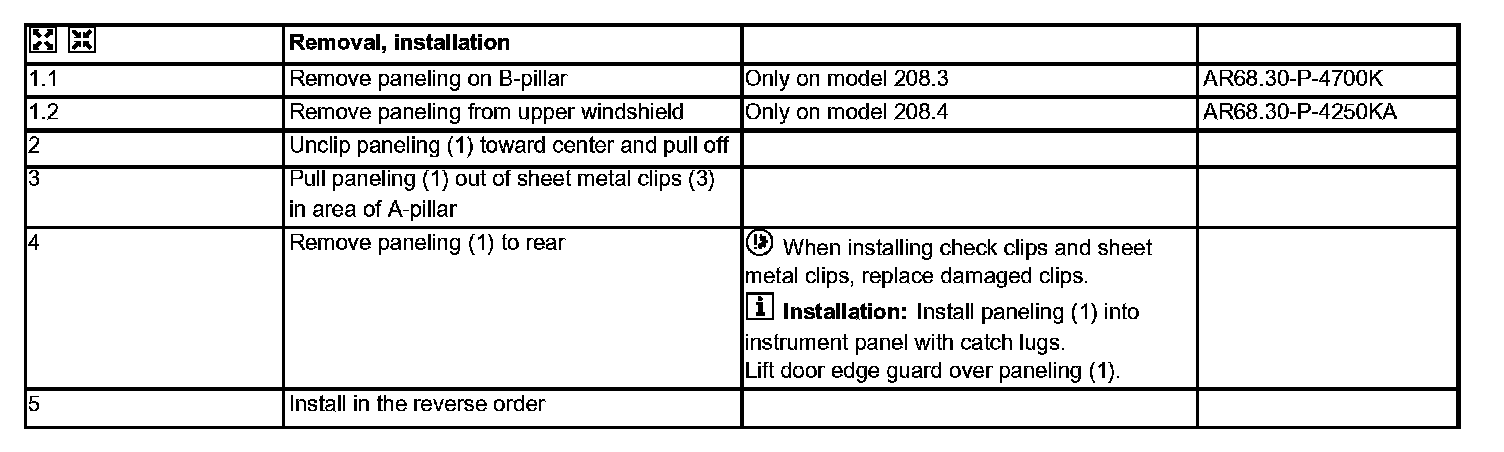

Steps 1 - 5:
