Glove Compartment Lock Cylinder: Service and Repair

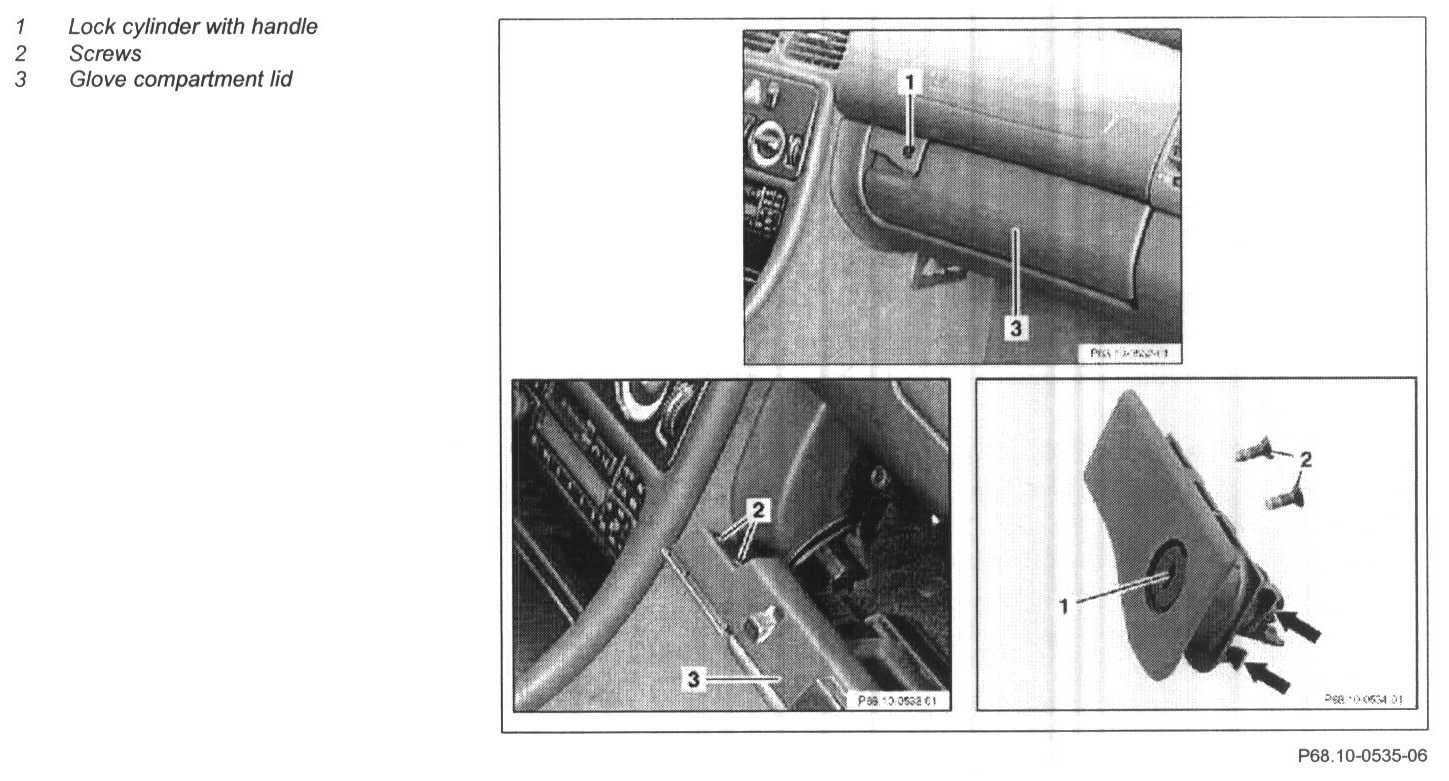

AR68.10-P-1250K Remove/Install Lock Cylinder on Glove Compartment Lid







1 Open glove compartment lid (1)
2 Unscrew screws (2)
3 Remove lock cylinder (1) with handle

NOTE: For installing insert lock cylinder housing behind cover with the two hooks (arrows)

4 Reinstall in opposite order
5 Check lock cylinder and handle on glove compartment lid for proper function
