AN31.10-P-8080KB Retrofitting Trailer Hitch



AN31.10-P-8080KB Retrofitting Trailer Hitch
- except CODE (772) AMG styling package

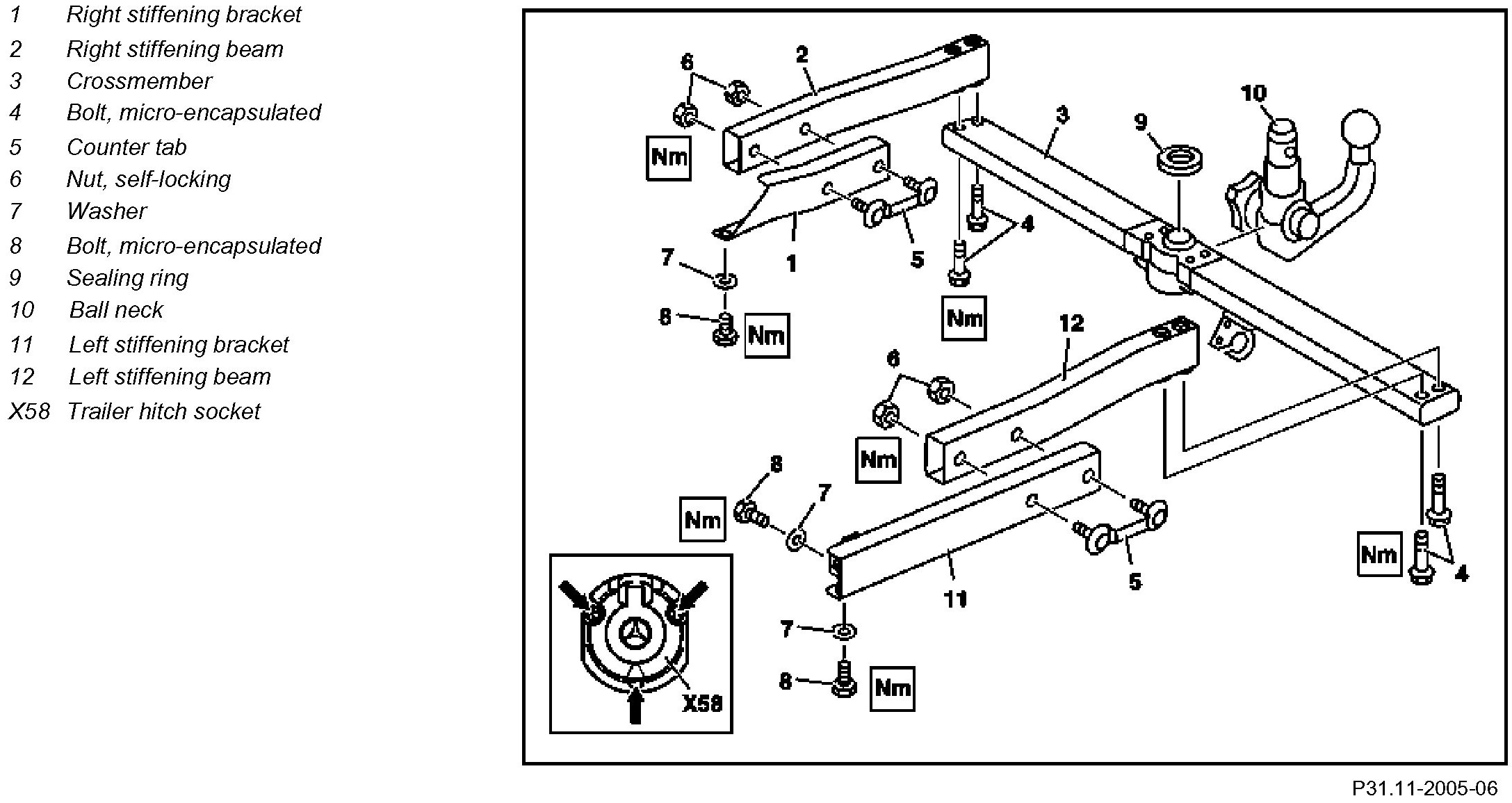

Component Identification:

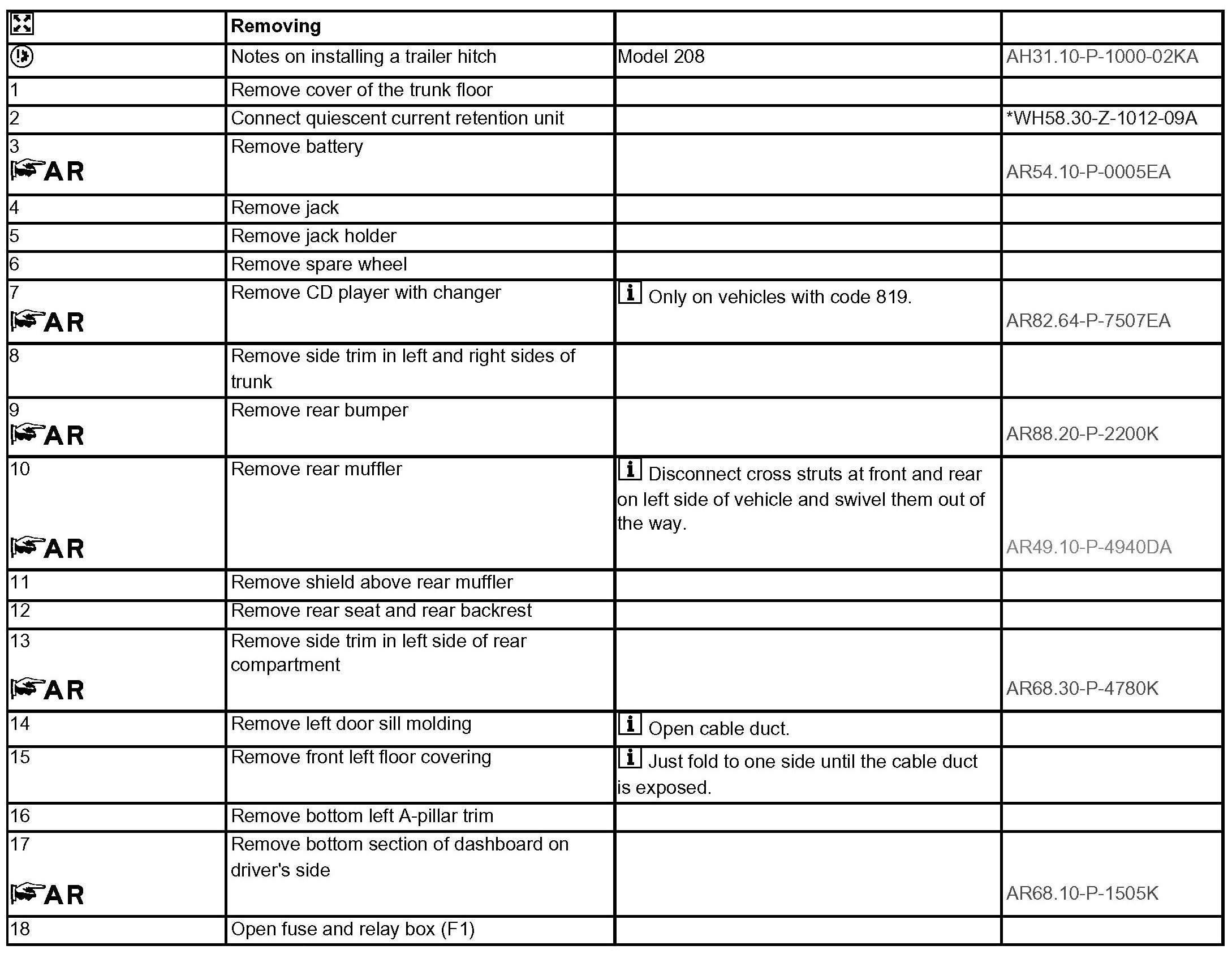

Steps 1 - 18:

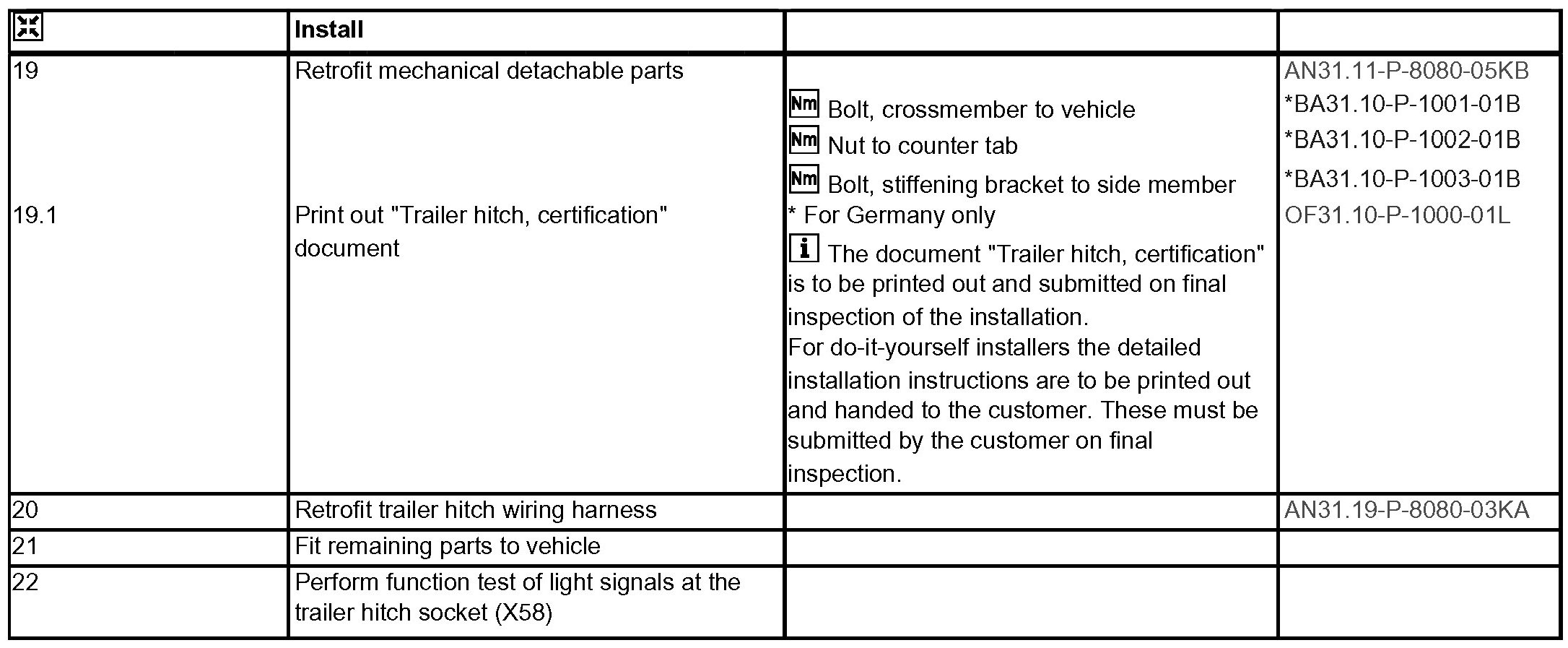

Step 19 - 22:

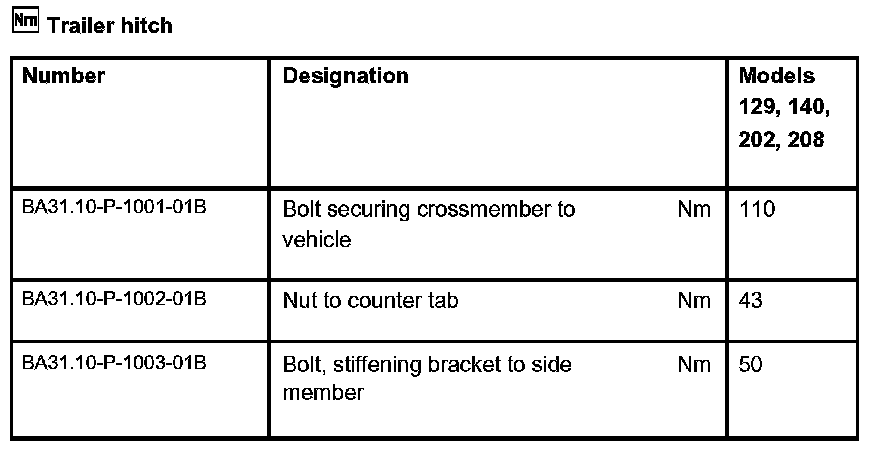

Trailer Hitch:

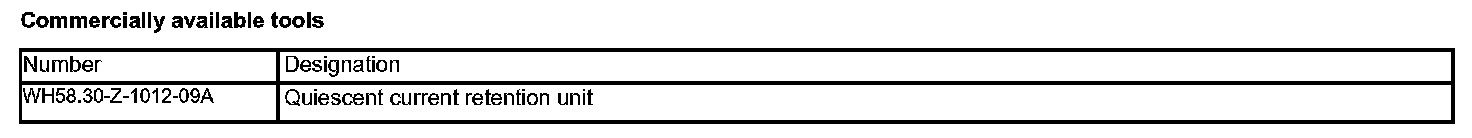

Commercially Available Tools:

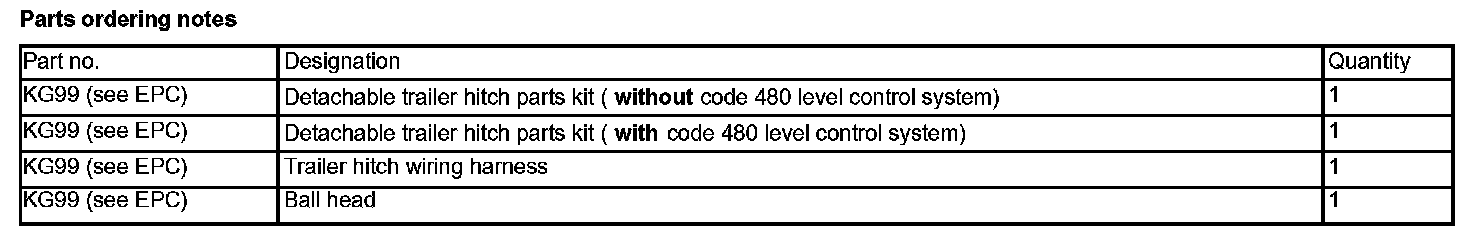

Parts Ordering Notes:
