Home >> Mercedes Benz >> 1998 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Body and Frame >> Fender >> Front Fender >> Service and Repair

Front Fender: Service and Repair

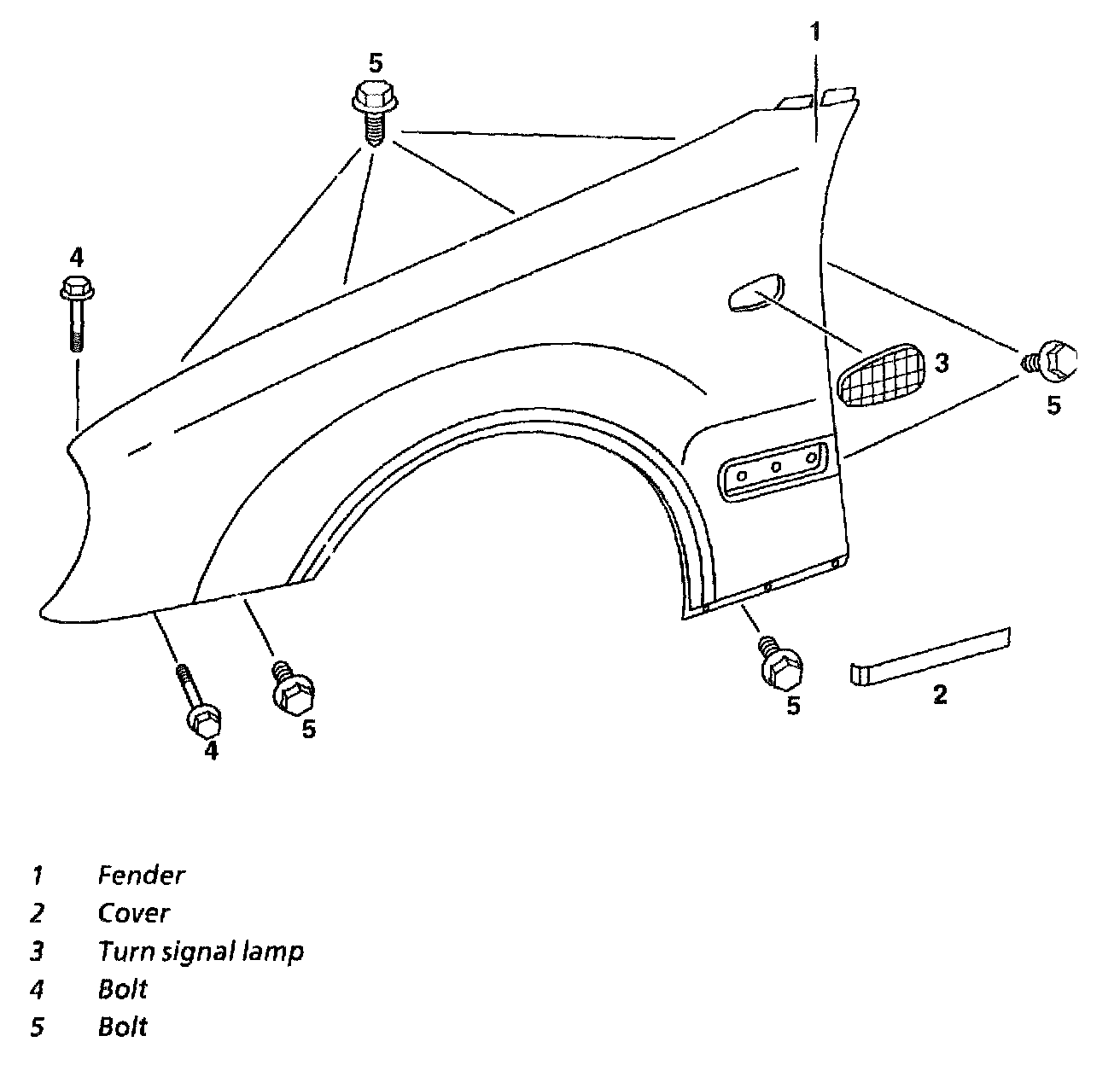

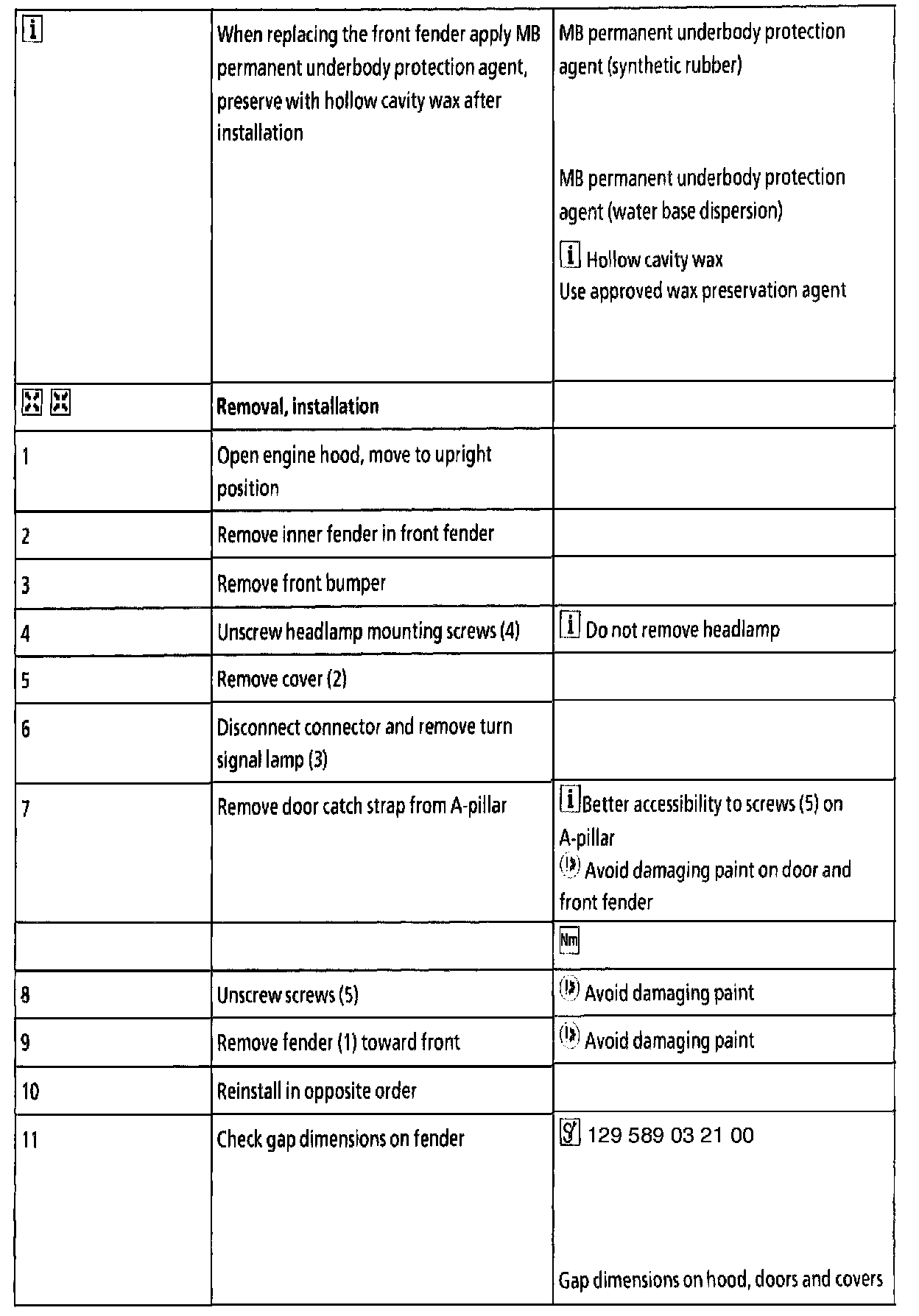

AR88.10-P-1000K Remove/Install Front Fenders

















Tightening Specifications
Screws on Door Arrester (Catch Strap): 25 Nm
