Home >> Mercedes Benz >> 1998 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Hood >> Hood Latch >> Service and Repair

Hood Latch: Service and Repair

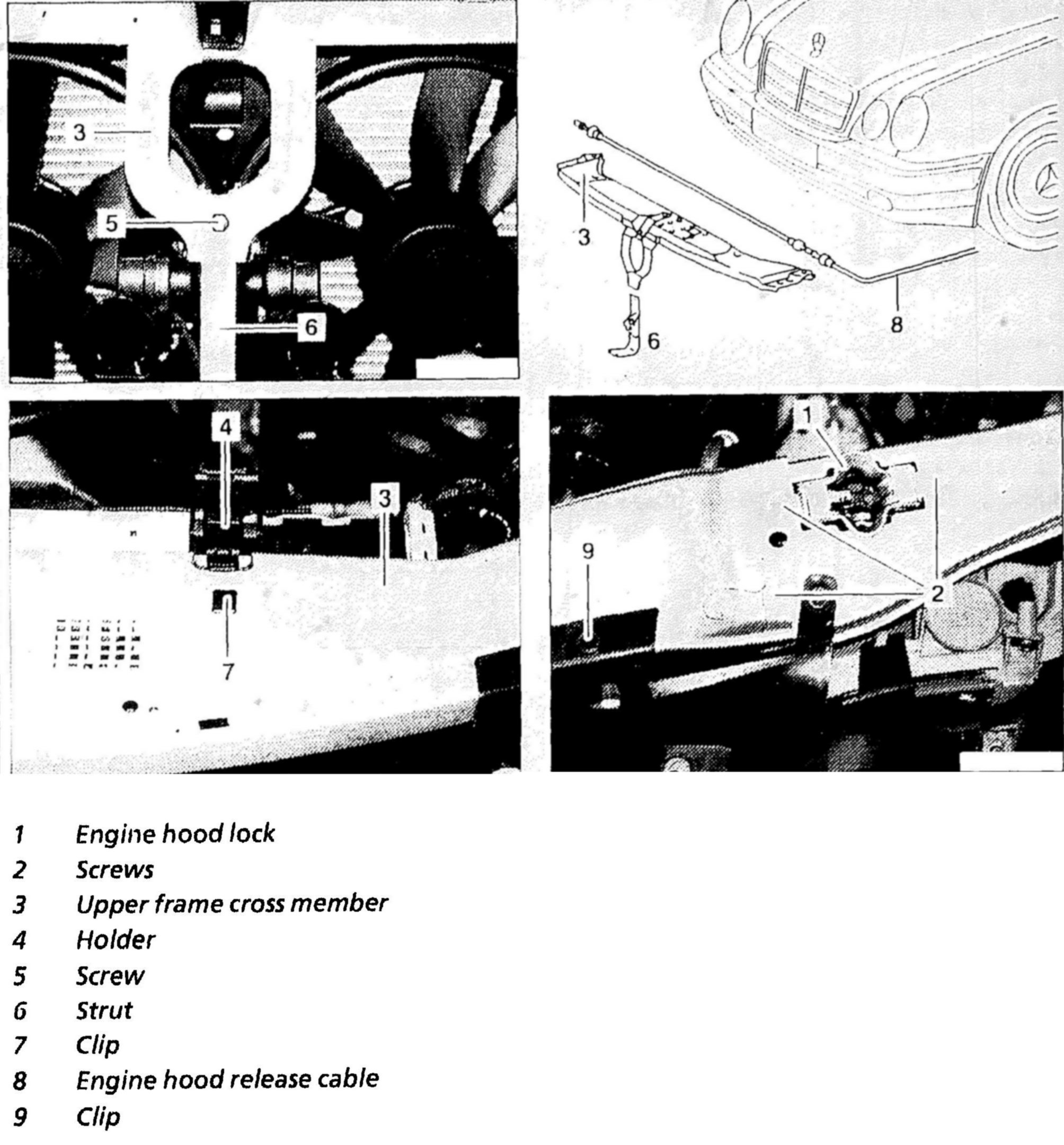

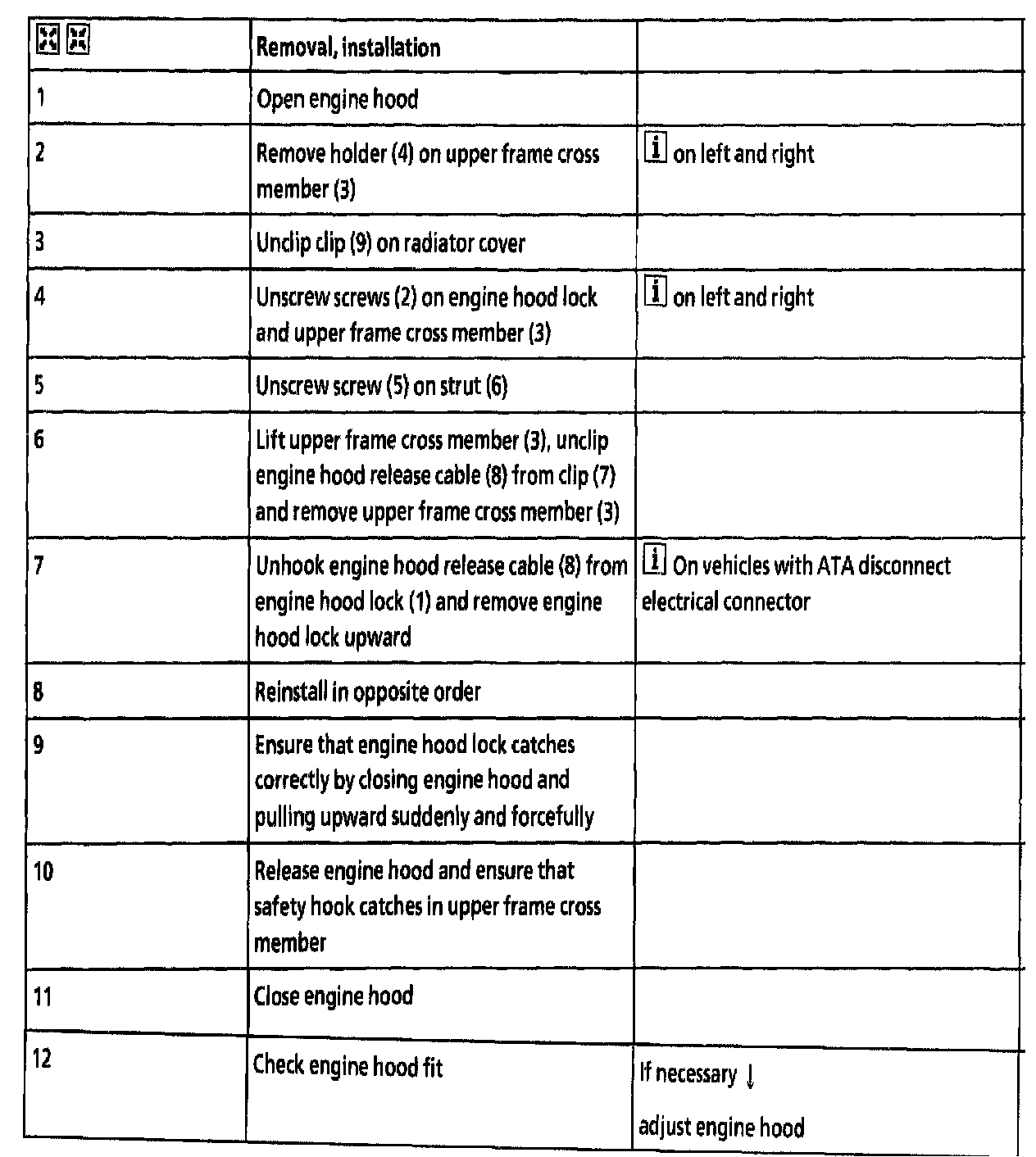

AR88.40-P-3200K Remove/Install Engine Hood Catch












Tightening Specifications
Screws (2) on engine hood lock: 8 Nm
