Rear Bumper: Service and Repair

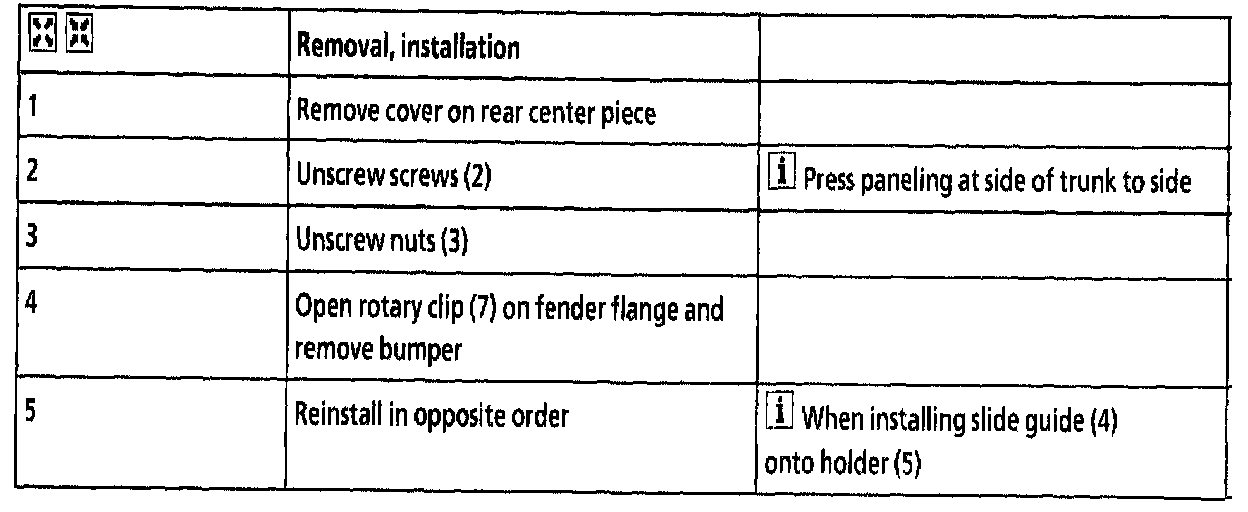

AR88.20-P-2200K Remove/Install Rear Bumper











Tightening Specifications
Nuts (3) for rear bumper on rear center piece: 8 Nm
Screw (2) with sealing washer for rear bumper on side of fender: 5 Nm
