Front Bumper: Service and Repair

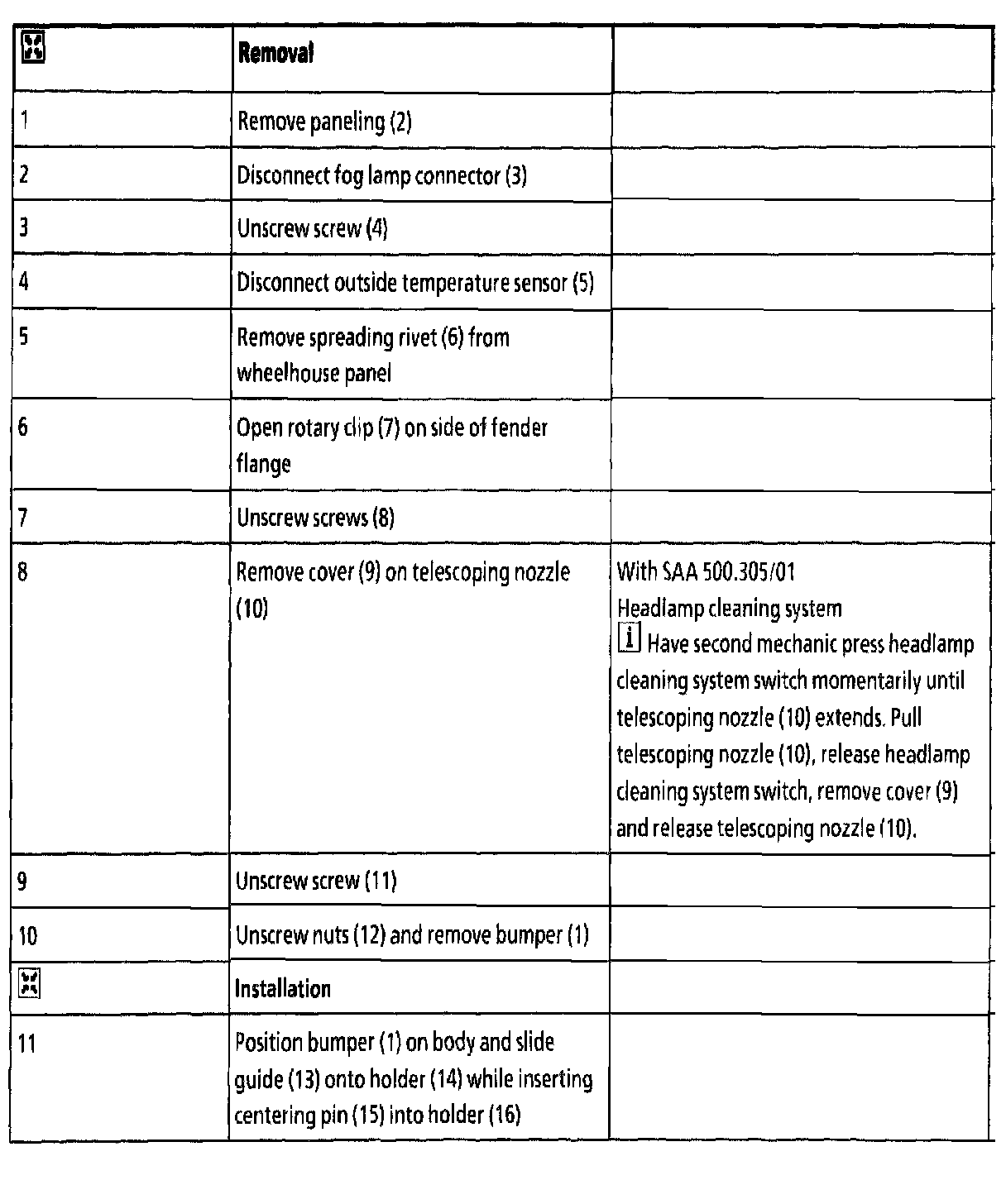

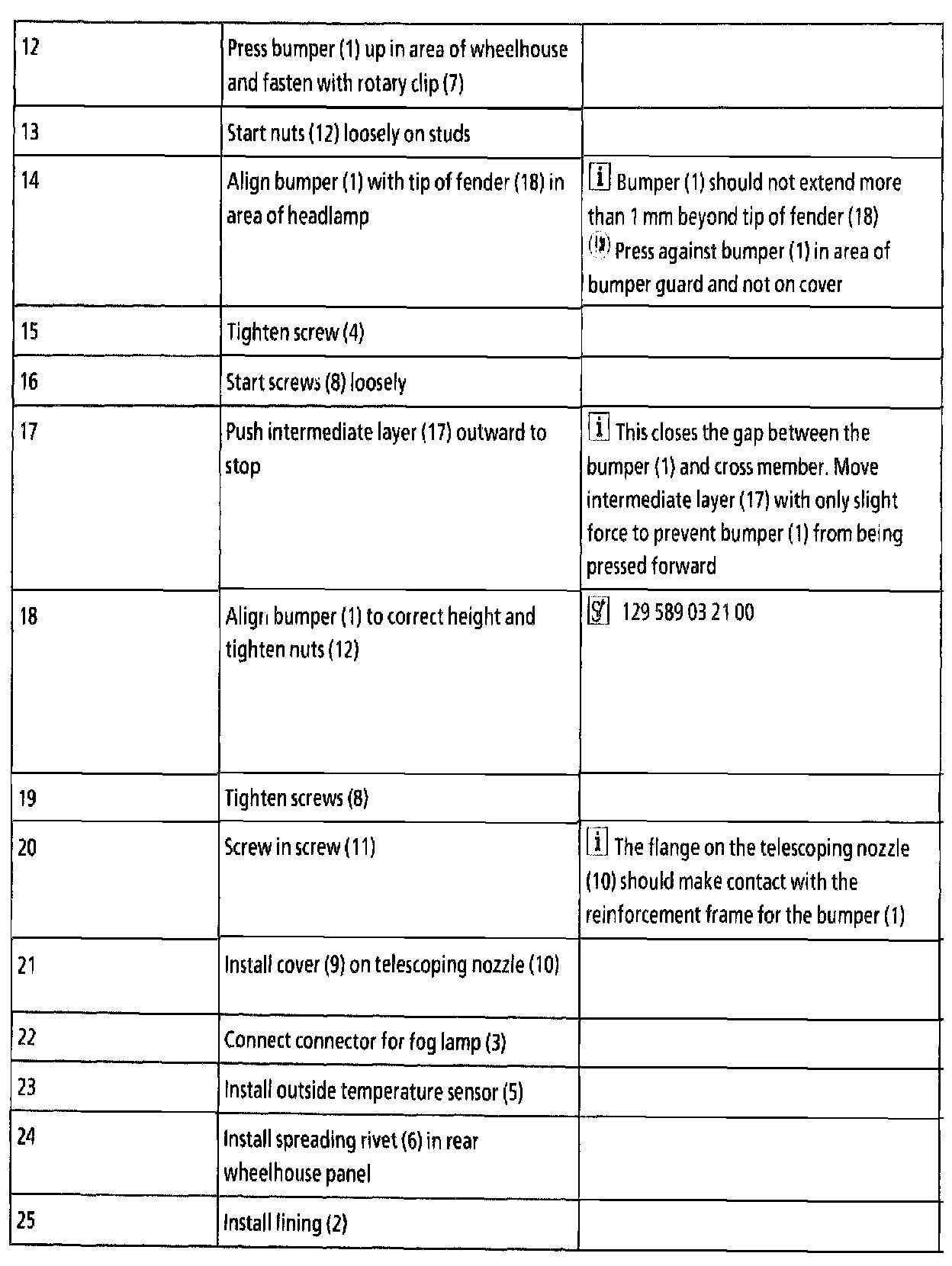

AR88.20-P-2000K Remove/Install Front Bumper



























Bumper gap dimension "C" (headlamp Lens to Cover): 6 mm


Tightening Specifications
Front bumper nuts (12) on cross member 20 Nm
Front bumper screw (8) on headlamp housing 2 Nm
Front bumper screw (4) on inside of fender 3 Nm
