Remove/Install Loudspeaker In Rear Shelf

Removing And Installing Loudspeakers In The Rear Shelf

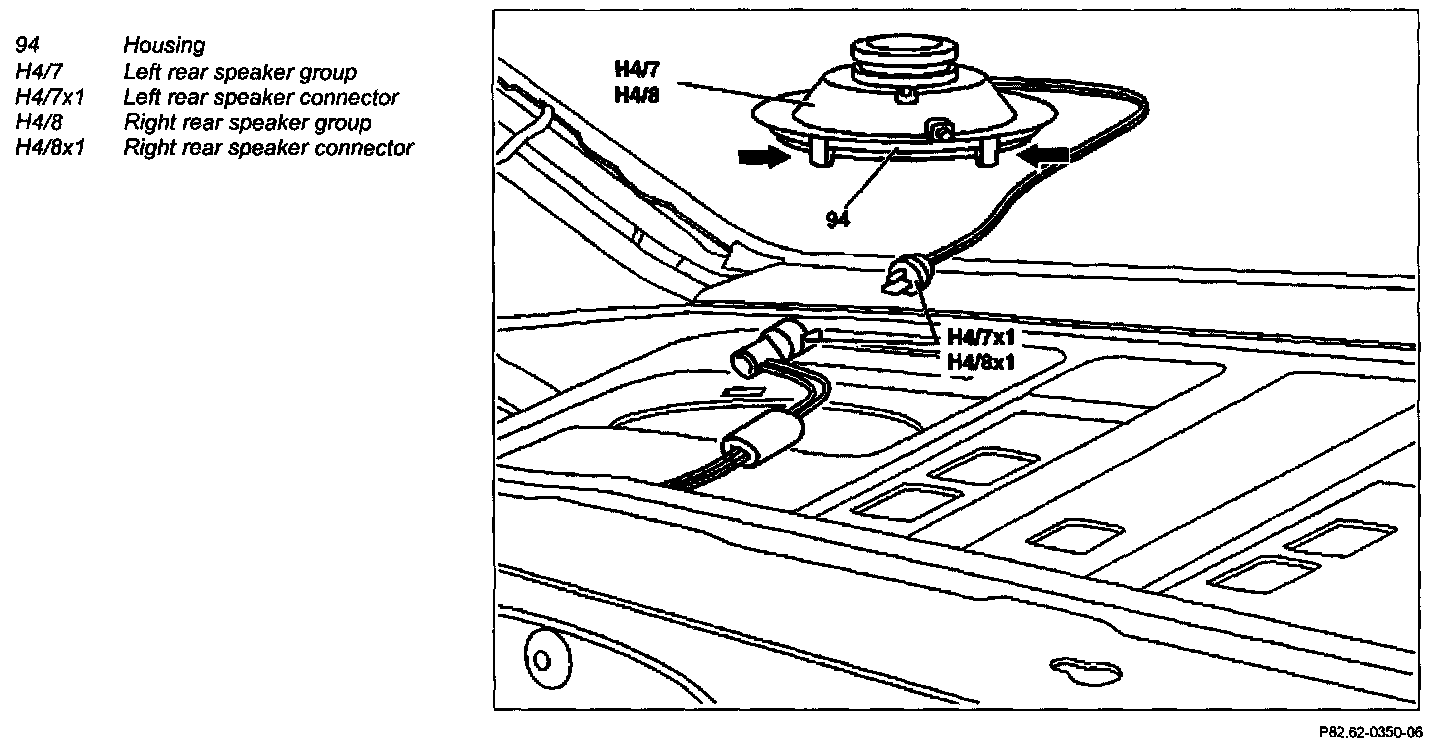

1 Remove rear shelf
2 Disconnect connectors (H4/7x1,H4/8x1)

NOTE: Installation: Position foam sleeves on top of connectors

3 Unclip housing (94) from trunk

NOTE: For this purpose press back retaining lugs (arrows)

4 Remove speakers (H4/7, H4/8)
5 Reinstall in opposite order
