Remove/Install Loudspeaker In Front Door

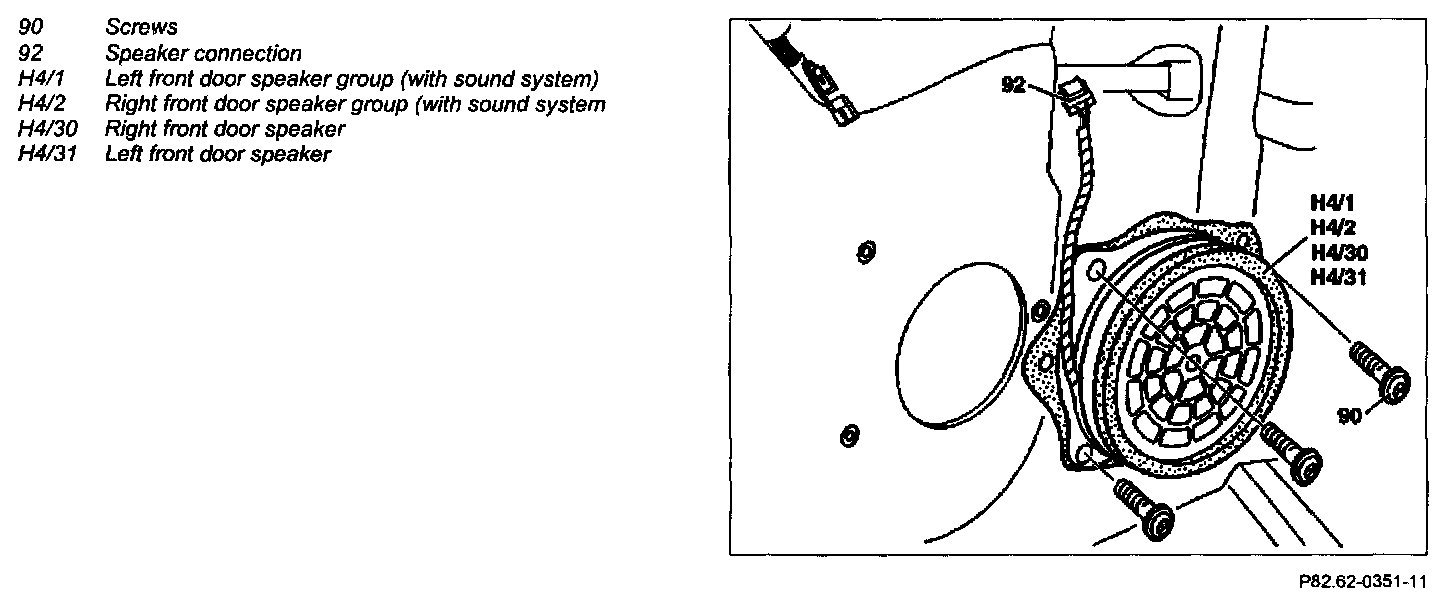

Removing And Installing Loudspeakers In Front Doors












1 Remove door liners on front doors
2 Disconnect loudspeaker connectors (92)
3 Unscrew screws (90)
4 Remove speakers (H4/1, H4/2, H4/30, H4/31 and H4/5, H4/6)
5 Reinstall in opposite order
6 Check for proper function
