Home >> Mercedes Benz >> 1998 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations >> Component Locations >> Loudspeaker System (LS) >> With Bose (R) Sound System

With Bose (R) Sound System

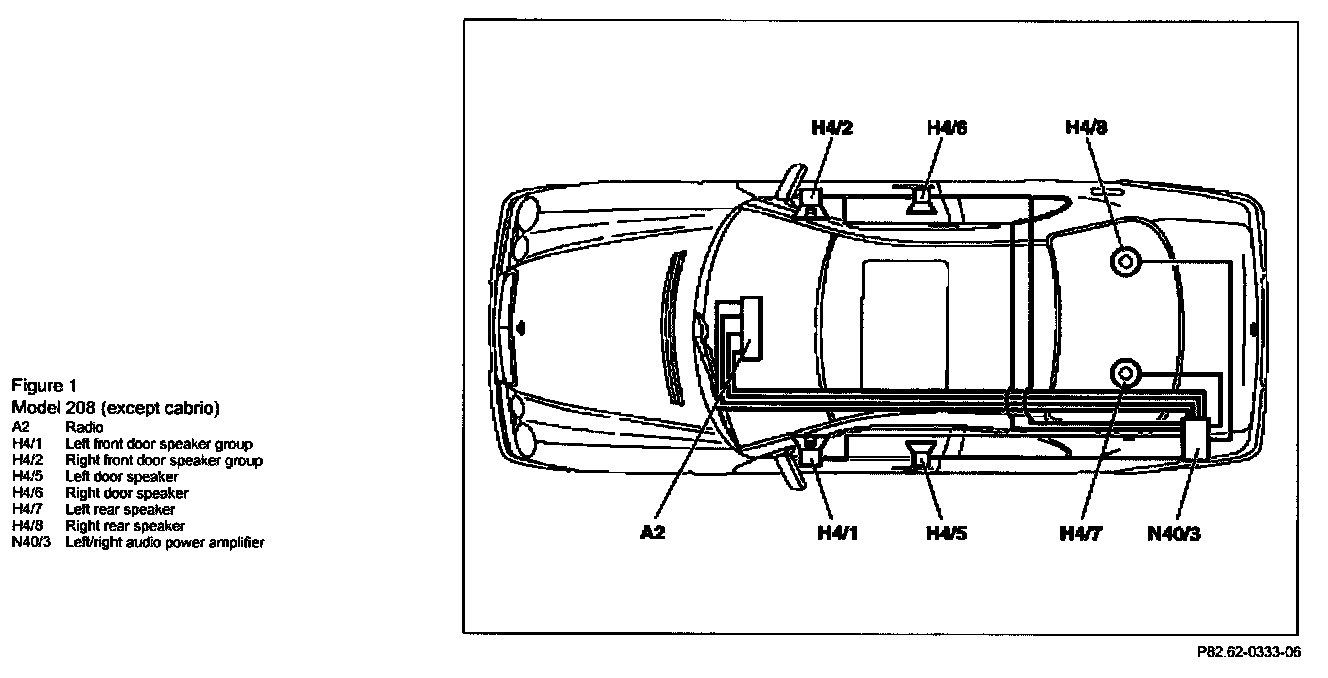

Figure 1 - Model 208 (Except 208 Except Cabrio):

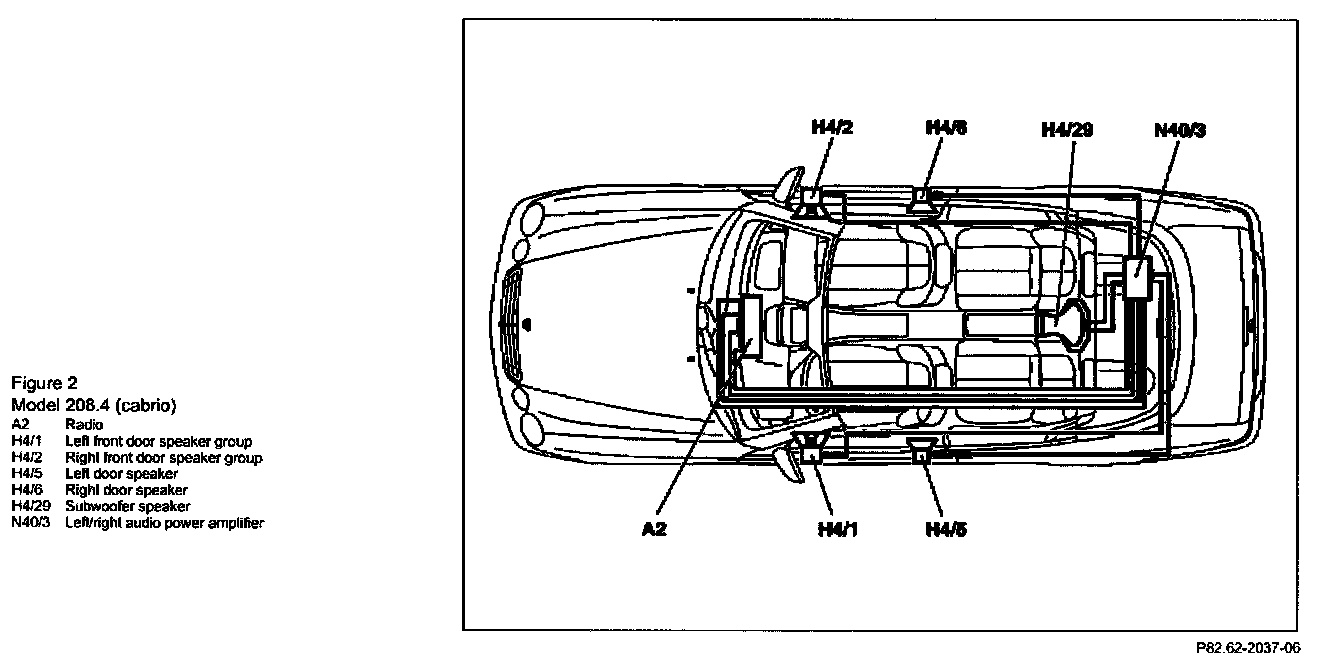

Figure 2 - Model 208.4 (Cabrio):

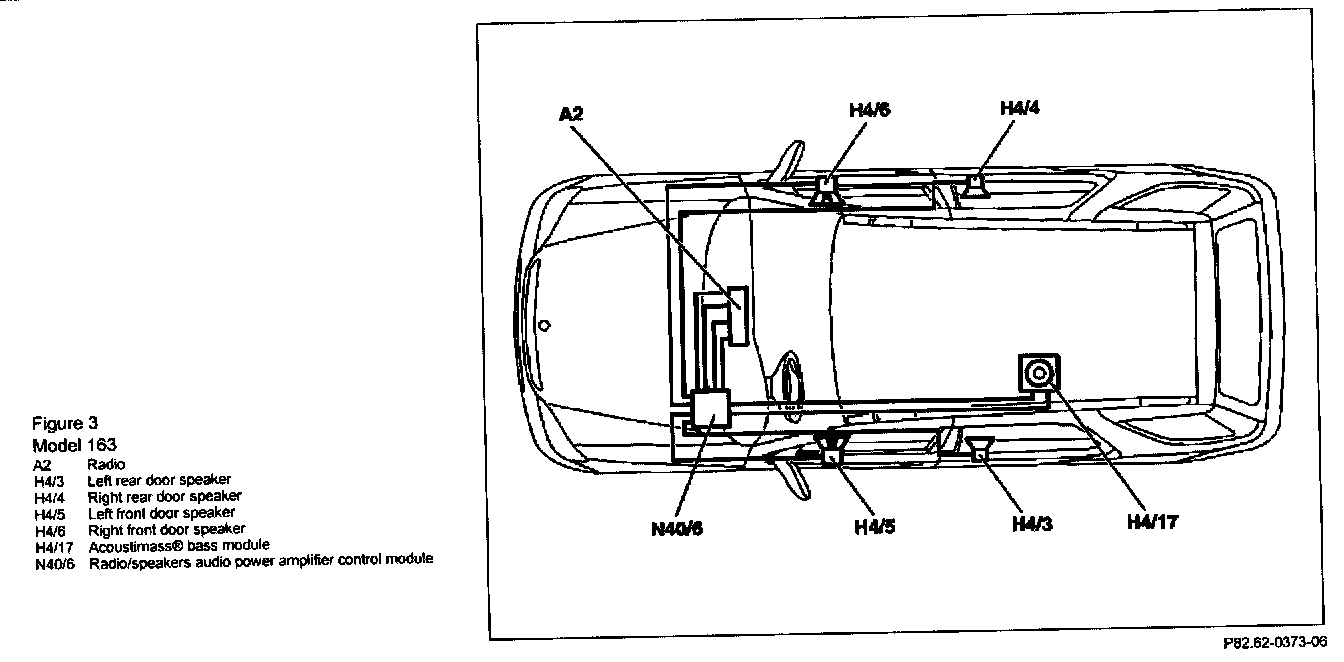

Figure 3 (Model 163):
