Radio - Installation of CD Changer
Date: November 1997Order No.: S-SI-MBNA-82/106
Supersedes: -
Group: 82
SUBJECT:
MODELS 202 AND 208
MODEL YEAR 1998
INSTALLATION OF CD CHANGER
The Work Instructions (W.I. no. 381) describe the installation of the CD changer in model 202 and 208 vehicles as of Model Year 1998.
Note:
The transfer of units from one vehicle to another, voids the warranty.
1. Remove hardware from shipping box and verify contents.

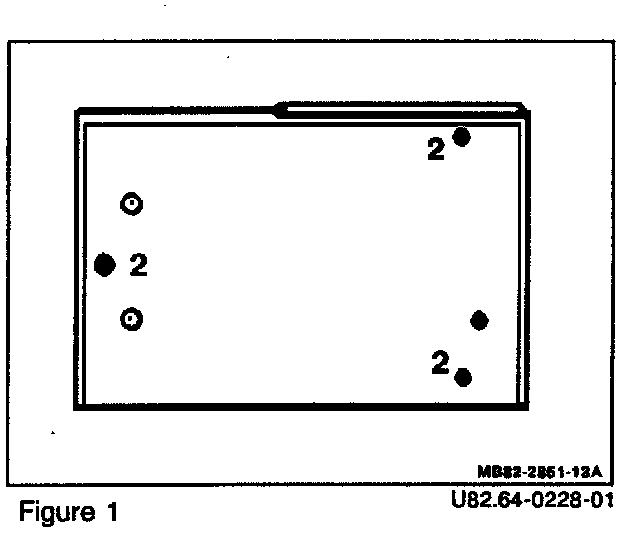

2. Remove shipping screws (2, Figure 1) from CD changer. Place shipping screws in ID card bag. Cover screws holes with dust covers.
2a. Set orientation adjustments on sides of CD changer to vertical (V). Secure with adhesive covers.
3. Remove trunk floor mat.
4. Locate factory bus cable in right wheel well.
5. Attach CD changer to CD mounting bracket using four screws.
6. Connect bus cable to CD changer.

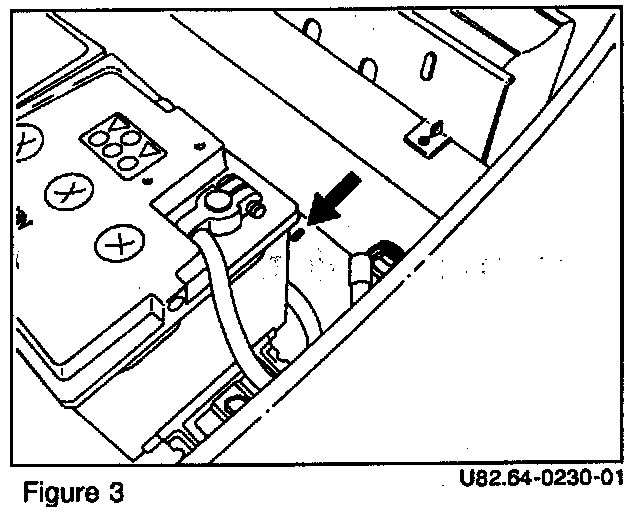

7. Position CD changer unit into right wheel well so that the stud on the bottom of the mounting bracket fits into the pre - drilled mounting point located on side member behind battery (arrow, Figure 3).
8. Continue to position the CD changer unit so that the tabs on mounting bracket align over pre-drilled factory mounting locations.
9. Secure top mounts with screws. Secure bottom mount (stud) with 6 mm nut using a 1/4" drive.
10. Install CD changer cover.
11. Install CD magazine in to CD changer unit.
12. Reinstall trunk floor mat.
13. Test function.
Parts Information
Part Name Part Number / Exchange
CD changer Main Unit 002 820 5989 (new)
002 820 5989 90 (exchange)
1 Card
1 CD magazine 002 820 62 89
1 pr. Orientation covers (H/V) Q 6 82 0179
Installation kit contains: Q 6 69 0024
Main bracket
Hardware package
Cover
Recommended Labor Time
Description Time (hrs.) Model(s)
CD changer, 0.6 202, 208
install(1)
(1) The installation cost is the responsibility of the customer
