Remove/Install AM/FM Amplifier

Removing And Installing FM/AM Amplifier

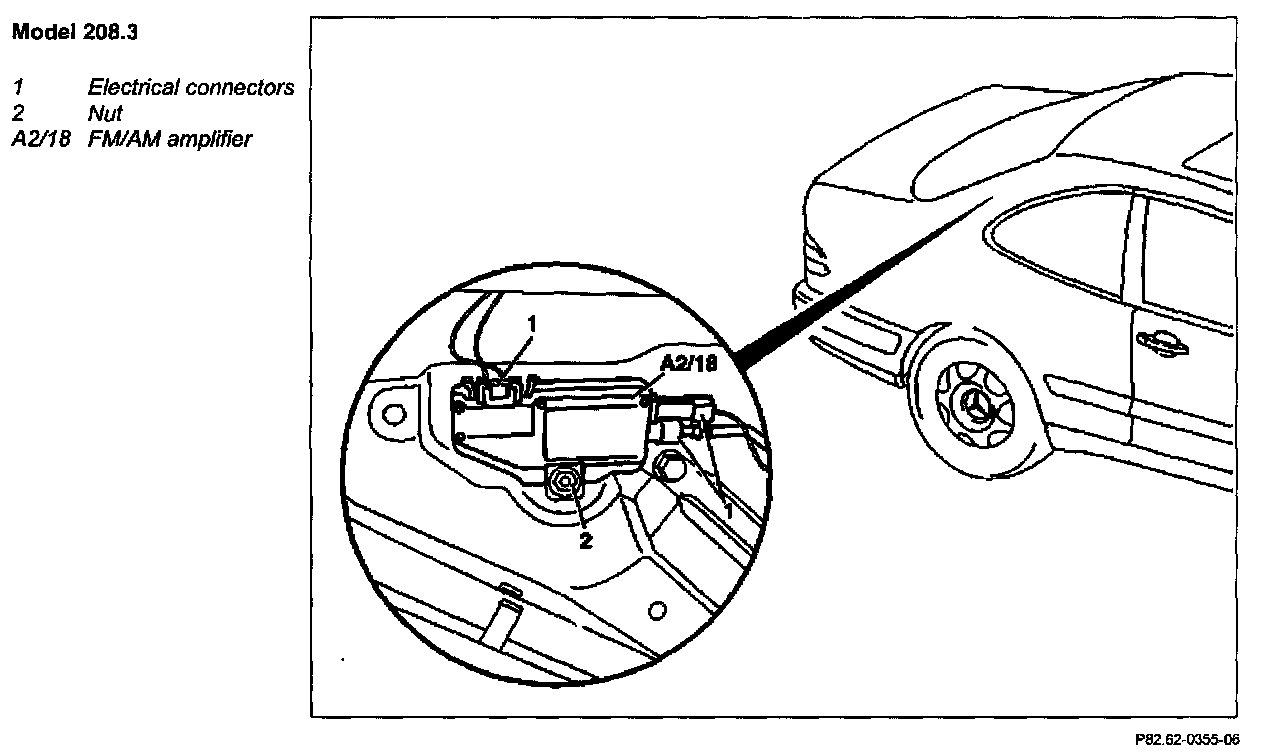

Model 208.3:

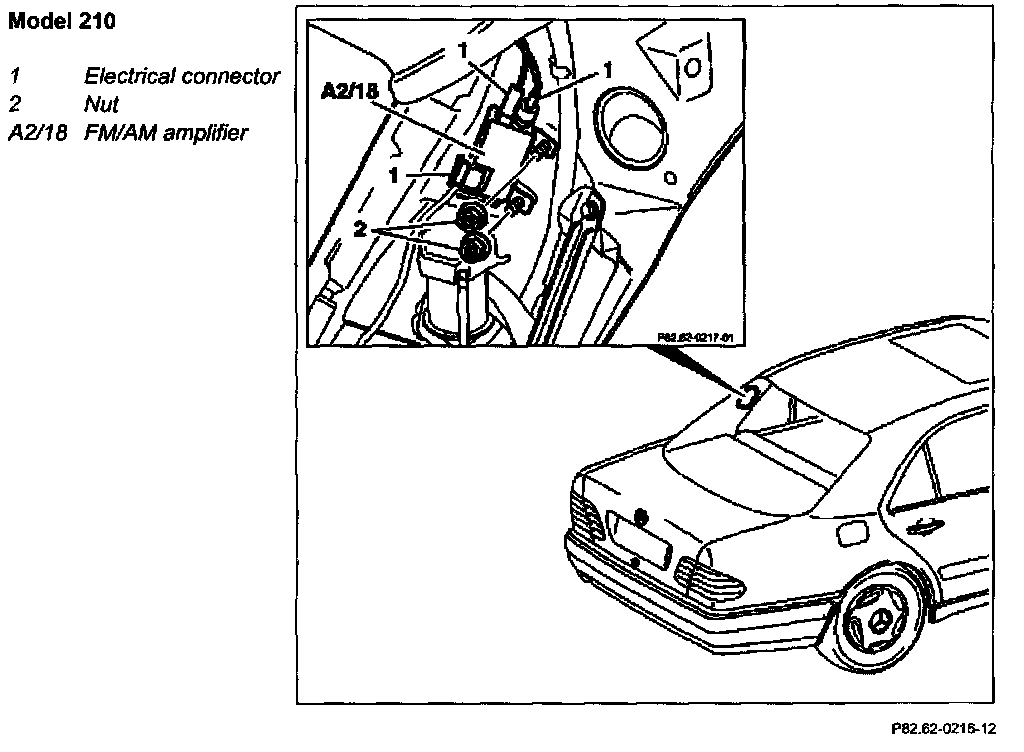

Model 210:

1 Remove rear seat and rear backrest
2 Remove paneling on C-pillar
3 Disconnect electrical connectors (1) on FM/AM rear window antenna amplifier (A2/18)
4 Unscrew nuts (2) and remove FM/AM amplifier
5 Reinstall in opposite order
