In Instrument Panel



Removing And Installing Parktronic System (PTS) Warning Indicator On Instrument Panel












Work instructions
1 Disconnect Electrical connections

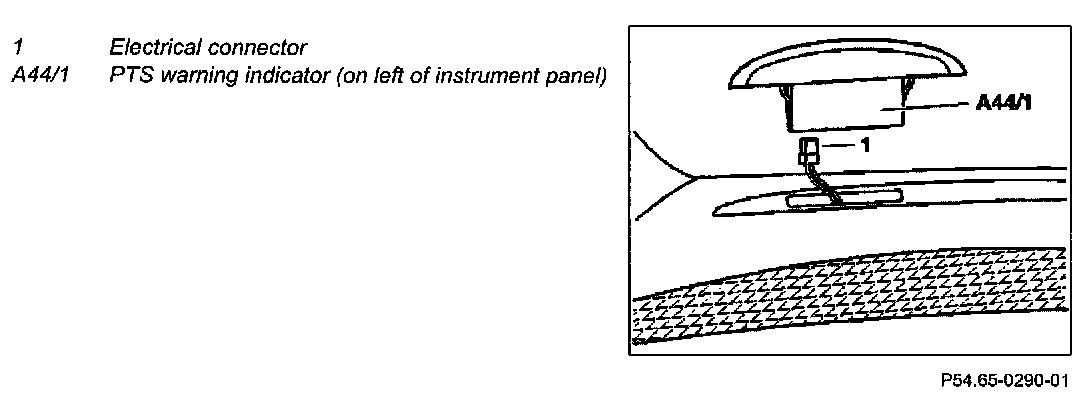

A44/1 PTS warning indicator (on left of instrument panel)
- pull out upward

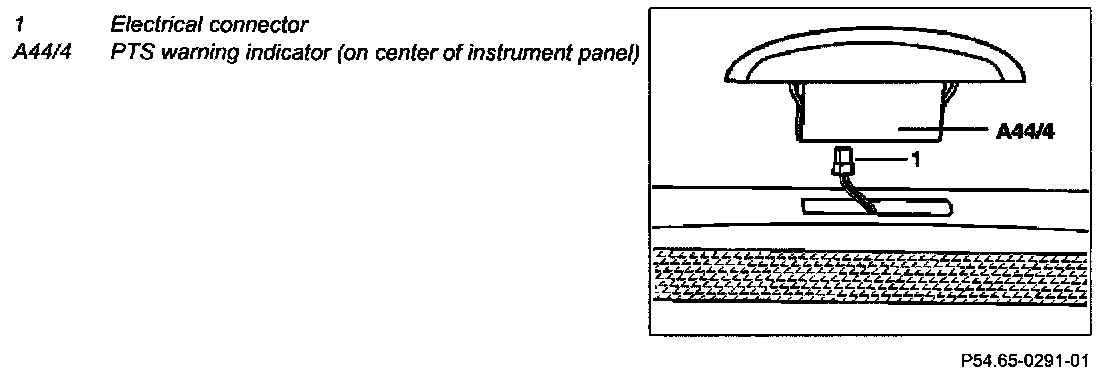

A44/4 PTS warning indicator (on center of instrument panel)
- pull out upward
