AR82.70-P-8915E Remove/Install Handset In Armrest or Stowage Compartment

Removing And Installing Handset In Armrest Or Stowage Compartment
- With CODE (316)

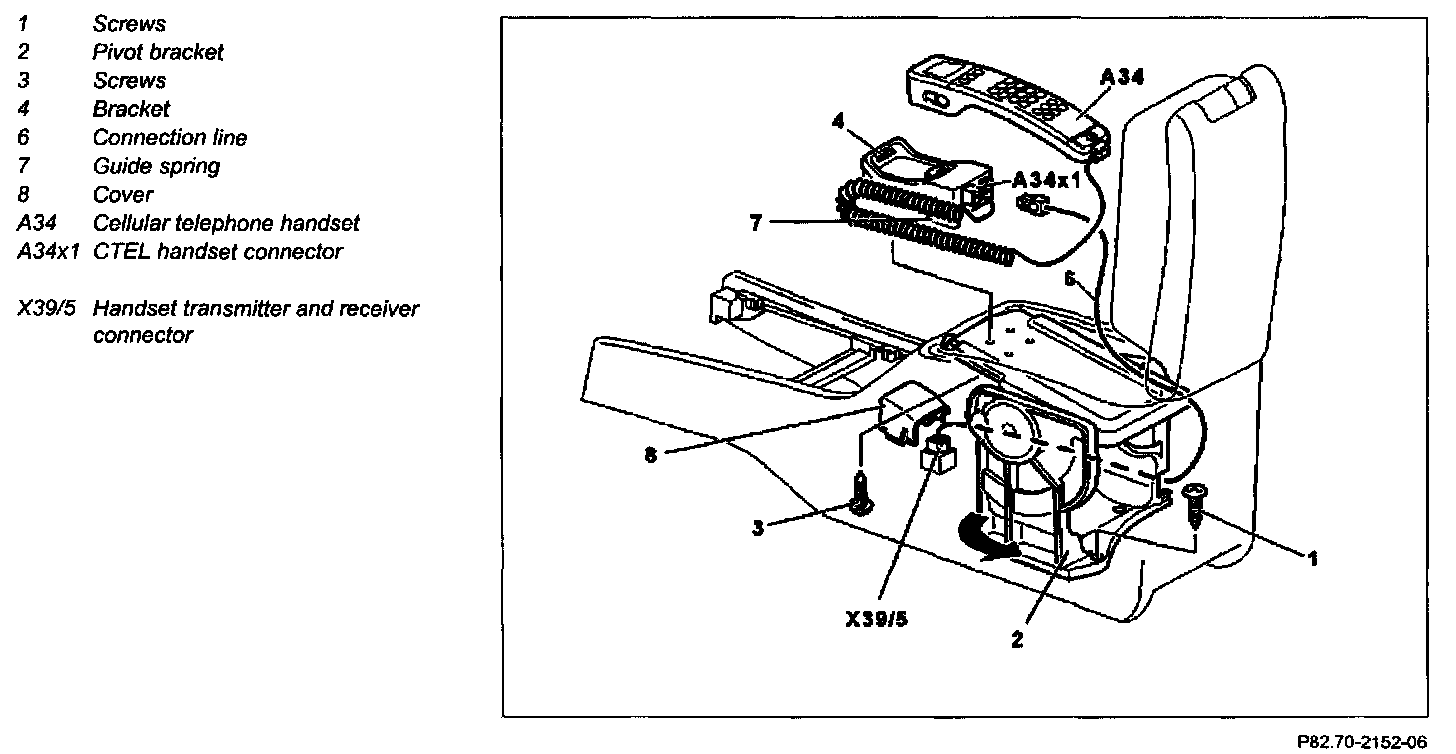

1 Disconnect CTEL handset connector (A34x1) and unhook guide spring (7). Remove CTEL handset (A34)
2 Pull off cover (8)
3 Disconnect handset transmitter and receiver connector (X39/5)

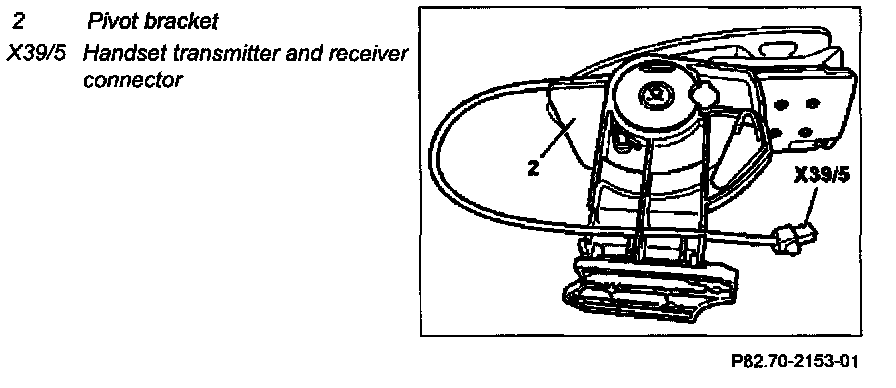

4 Unscrew screws (1) and turn pivot bracket (2) to left (arrow) and lift out
5 Unscrew screws (3)
6 Remove bracket (4)

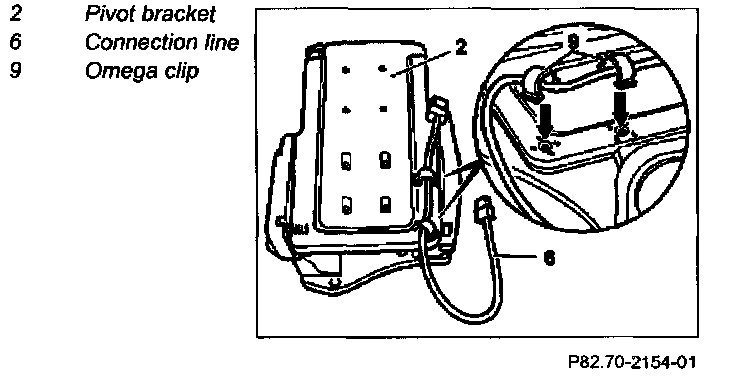

7 Unclip connection line (6) and loosen omega clip (9)
