Up to 6/98

(Shown on model 210 with interior motion sensor [IRS] [(not (USA)]

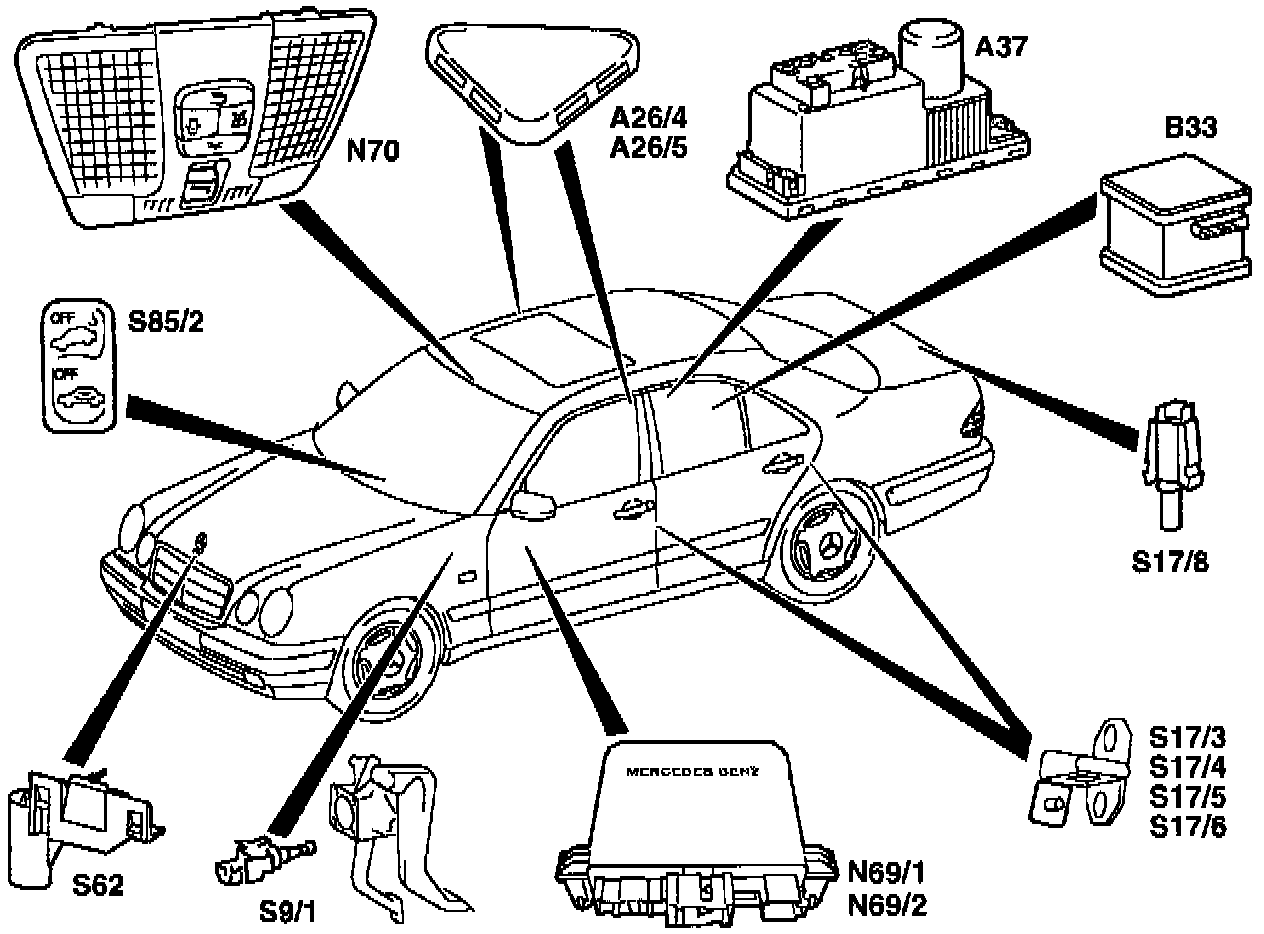

Figure 1:
A26/4 Left infrared transmitter and receiver (interior protection system) (not (USA))
A26/5 Right infrared transmitter and receiver (interior protection system) (not (USA))
A37 PSE control module, combined functions
B33 ATA tow sensor
E15/3 Rear dome lamp
N69/1 Front driver-side door control module
N69/2 Front passenger-side door control module
N70 Roof control panel control module
S9/1 Stop lamp switch (4-pole)
S17/3 Left front door switch
S17/4 Right front door switch
S17/5 Left rear door switch
S17/6 Right rear door switch
S17/8 Trunk lamp switch
S62 Engine hood switch (ATA)
S85/2 ATA status/towing/interior protection switch
