Preparation For Test

Preliminary work: Diagnosis - Diagnostic Trouble Code Memory. Testing and Inspection

1. Ignition: OFF.
2. Connect socket box according to connection diagram (Figure 1 to 3).

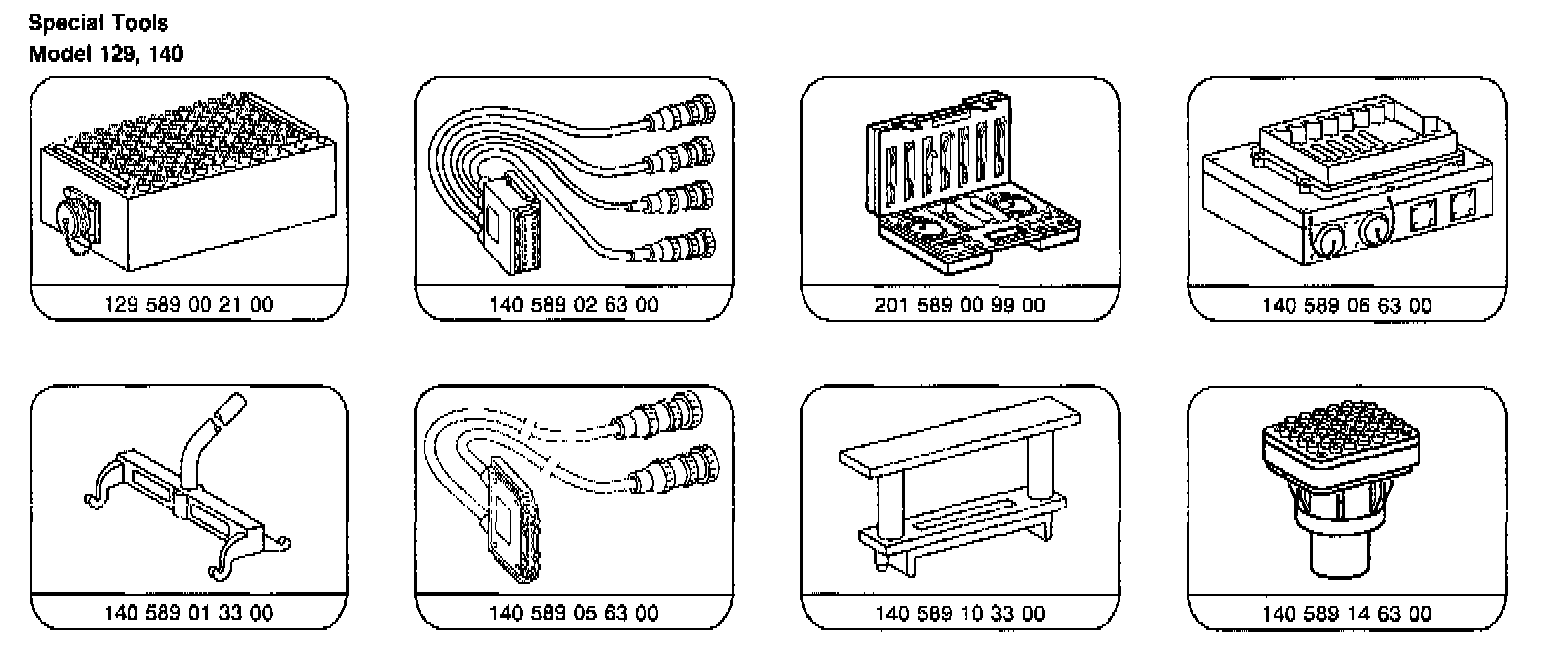

Special Tools - Models 129, 140:

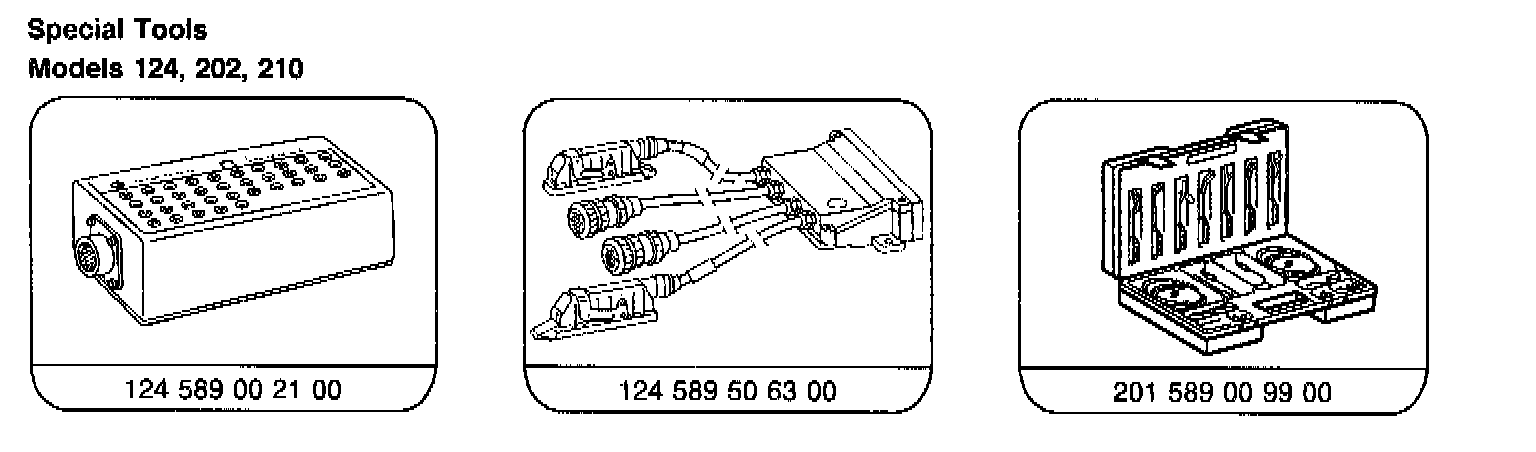

Special Tools - Models 124, 202, 210:

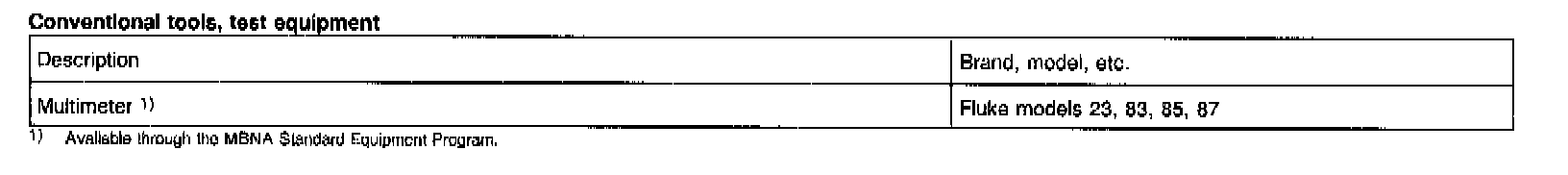

Conventional Tools, Test Equipment:

Connection Diagrams

Application:
- Figure 1 = Models 124, 202, 210
- Figure 2 = Model 129
- Figure 3 = Model 140

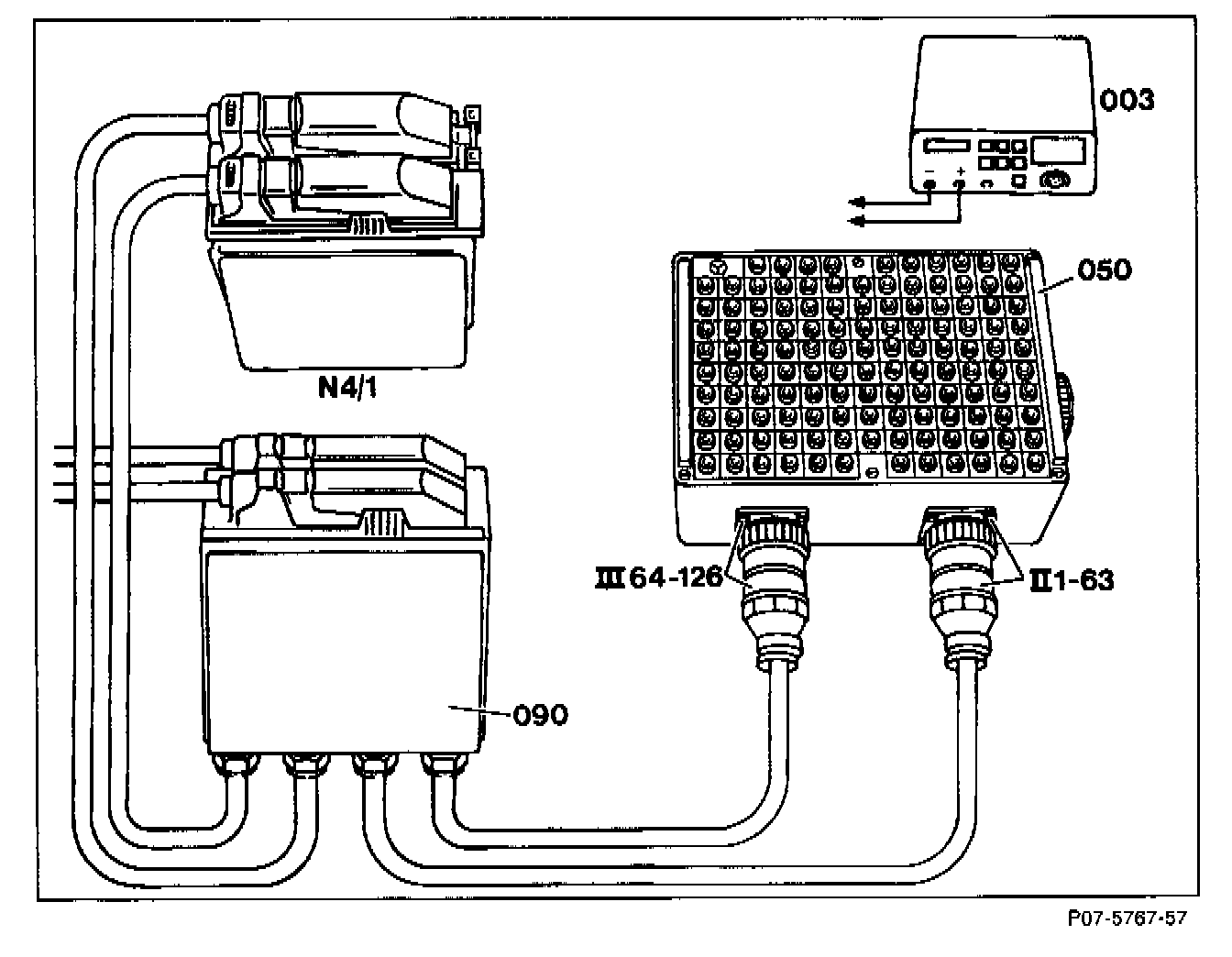

Figure 1:

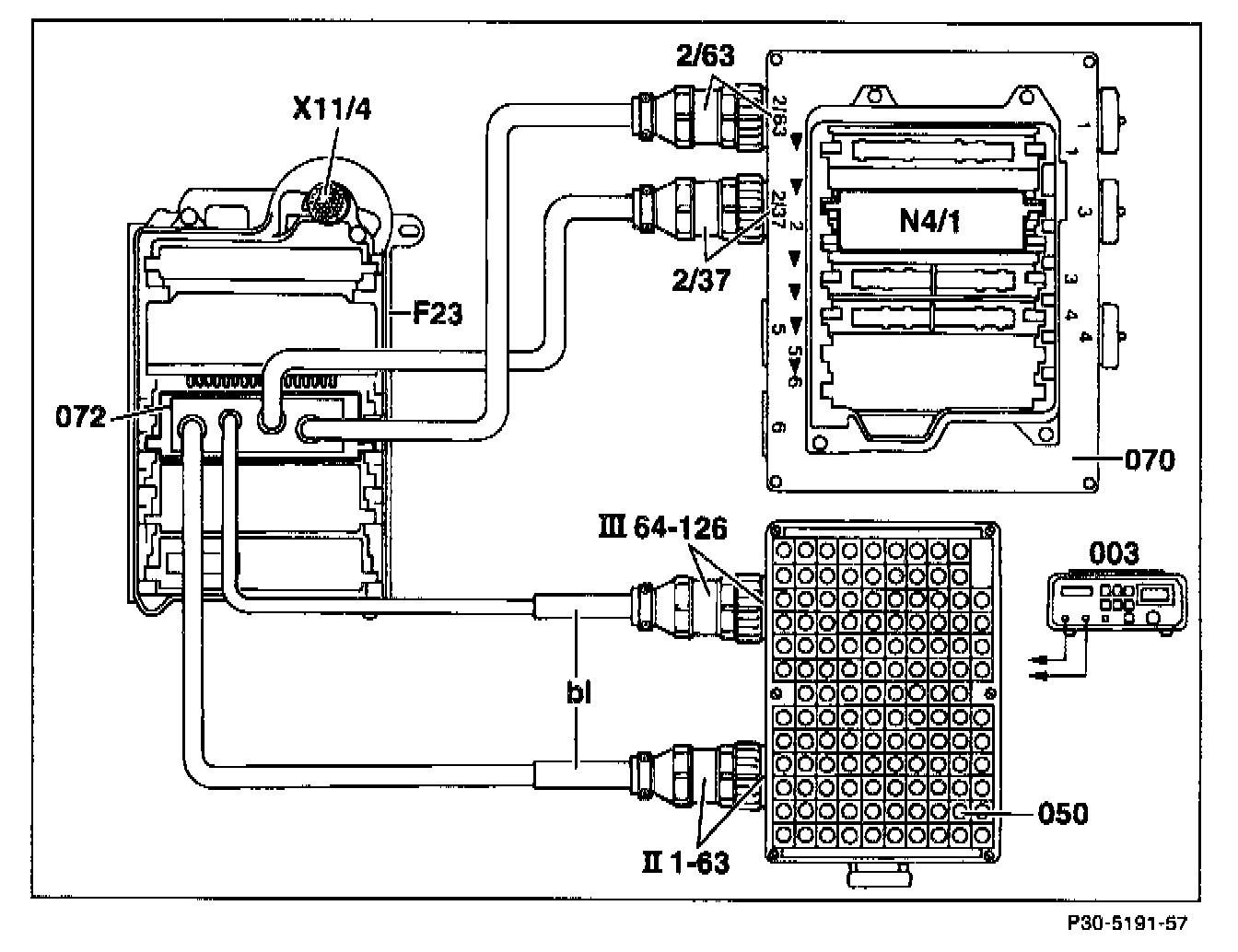

Figure 2:

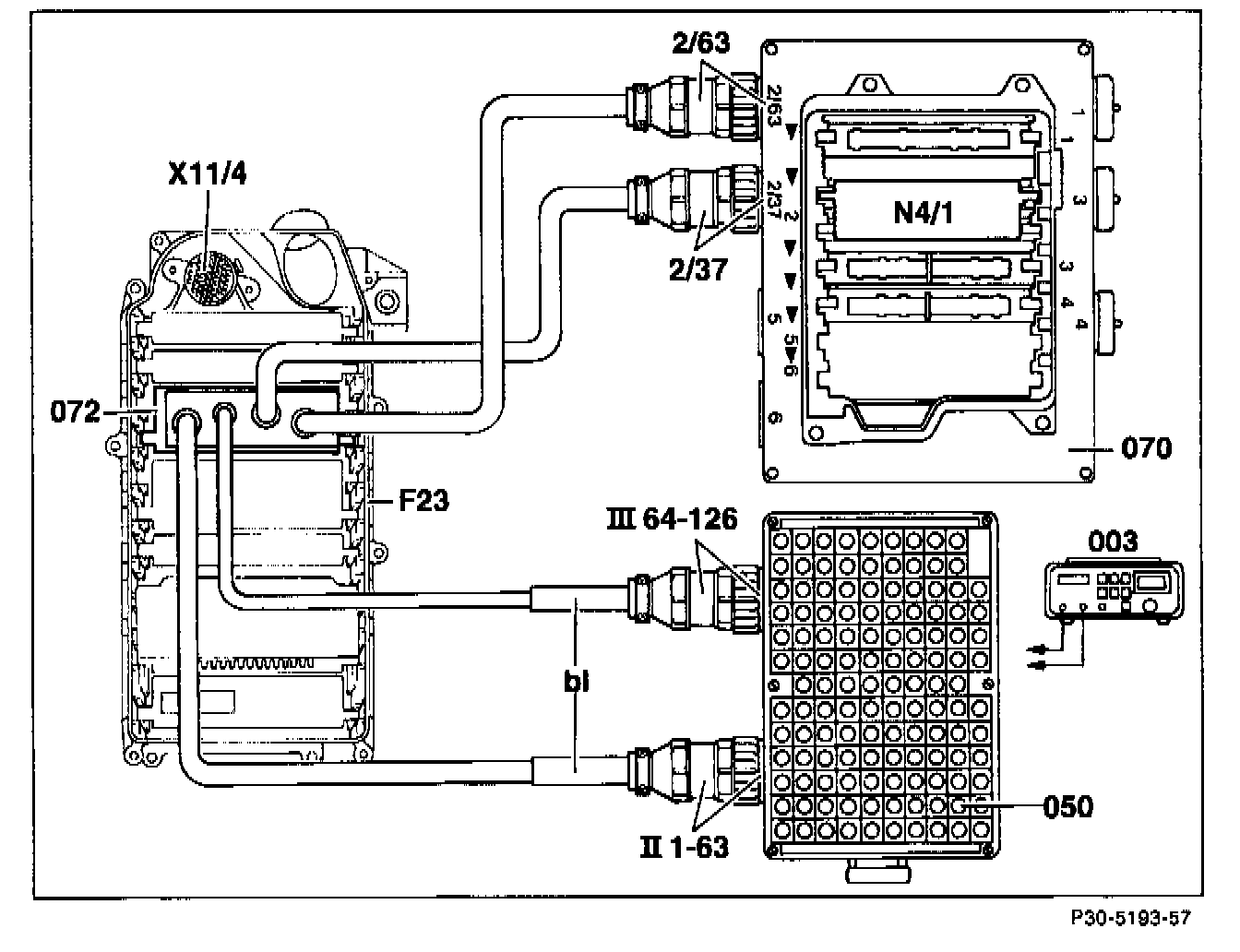

Figure 3:

N4/1 EA/CC/ISC Control Module
003 Digital Multimeter
050 Socket Box, 126-pole
070 Contact Box
072 Contact Module 2
090 Diagnostic Test Cable
X11/4 Data Link Connector (DTC Readout)
F23 Module Box
bl blue


Connector Pin-out Views of EA/CC/ISC Control Module Connectors

Application:
- Figure 4 = Connector 1, Models 124, 202, 210
- Figure 5 = Connector 2, Models 124, 202, 210
- Figure 6 = Connector 1, Models 129, 140
- Figure 7 = Connector 2, Models 129, 140

Figure 4:

Figure 5:

Figure 6:

Figure 7:
