E 320 Cabriolet (124.066) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Powertrain Management
>>
EA/CC (Electronic Accelerator/Cruise Control) - With ASR
>>
Codes Using Impulse Counter Scan Tool
Codes Using Impulse Counter Scan Tool

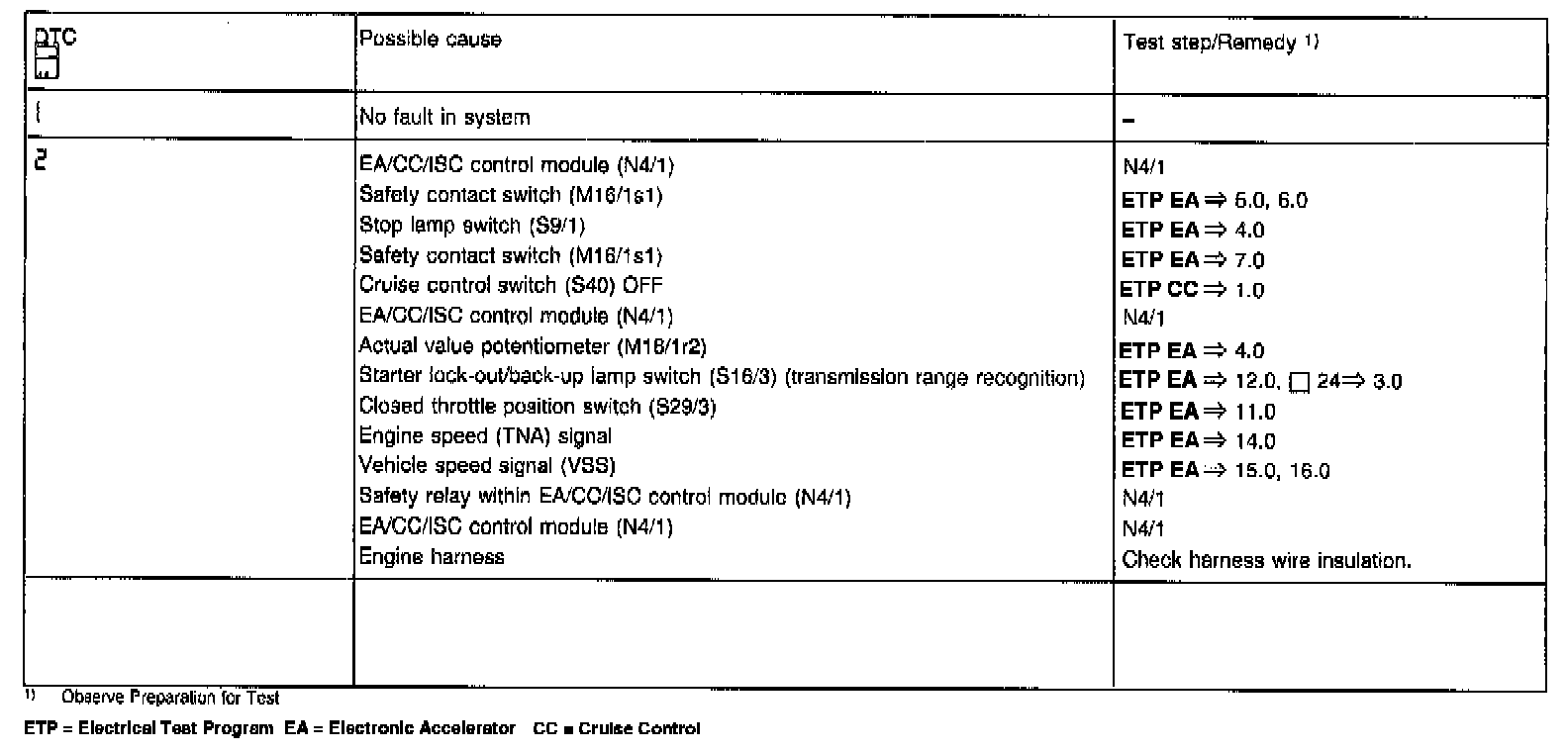

DTC 1, 2:

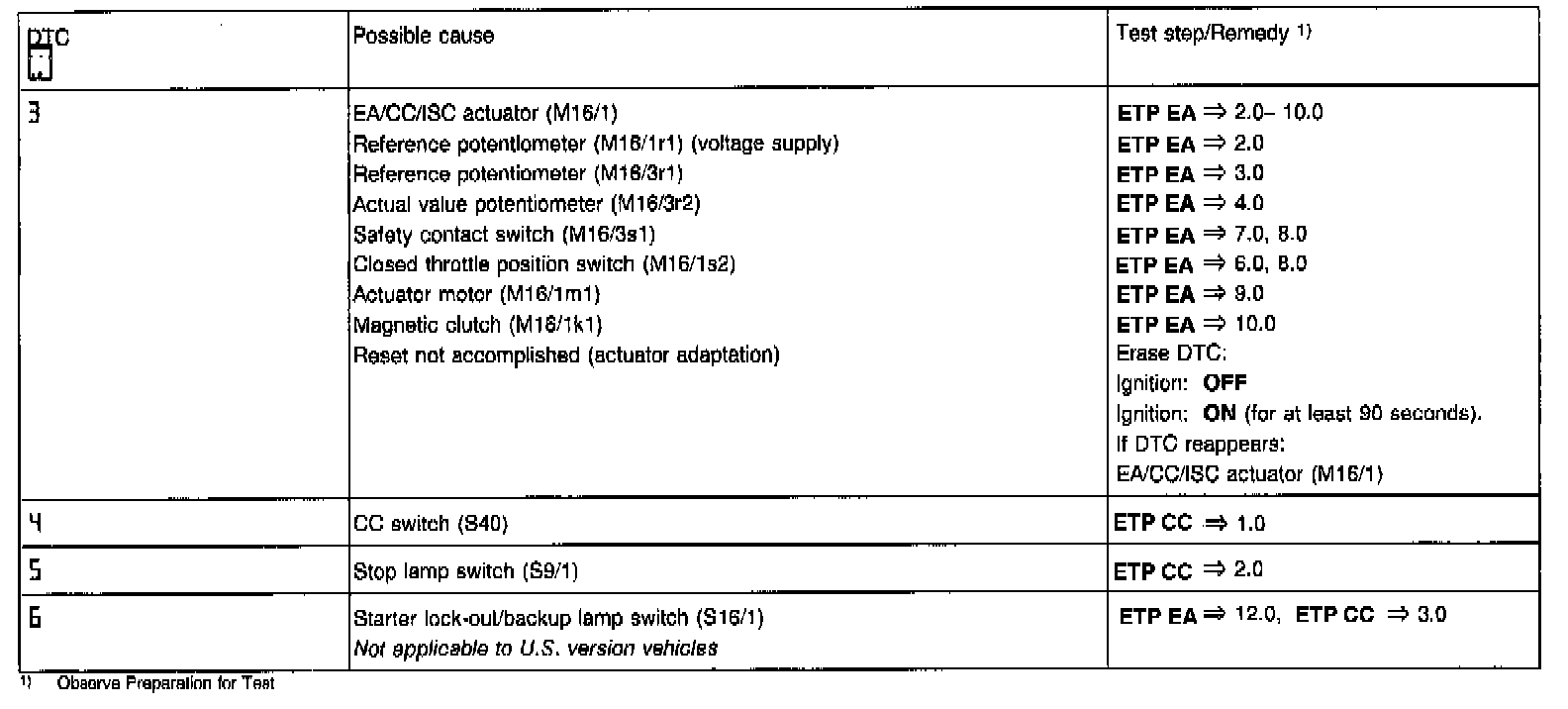

DTC 3, 4, 5, 6:

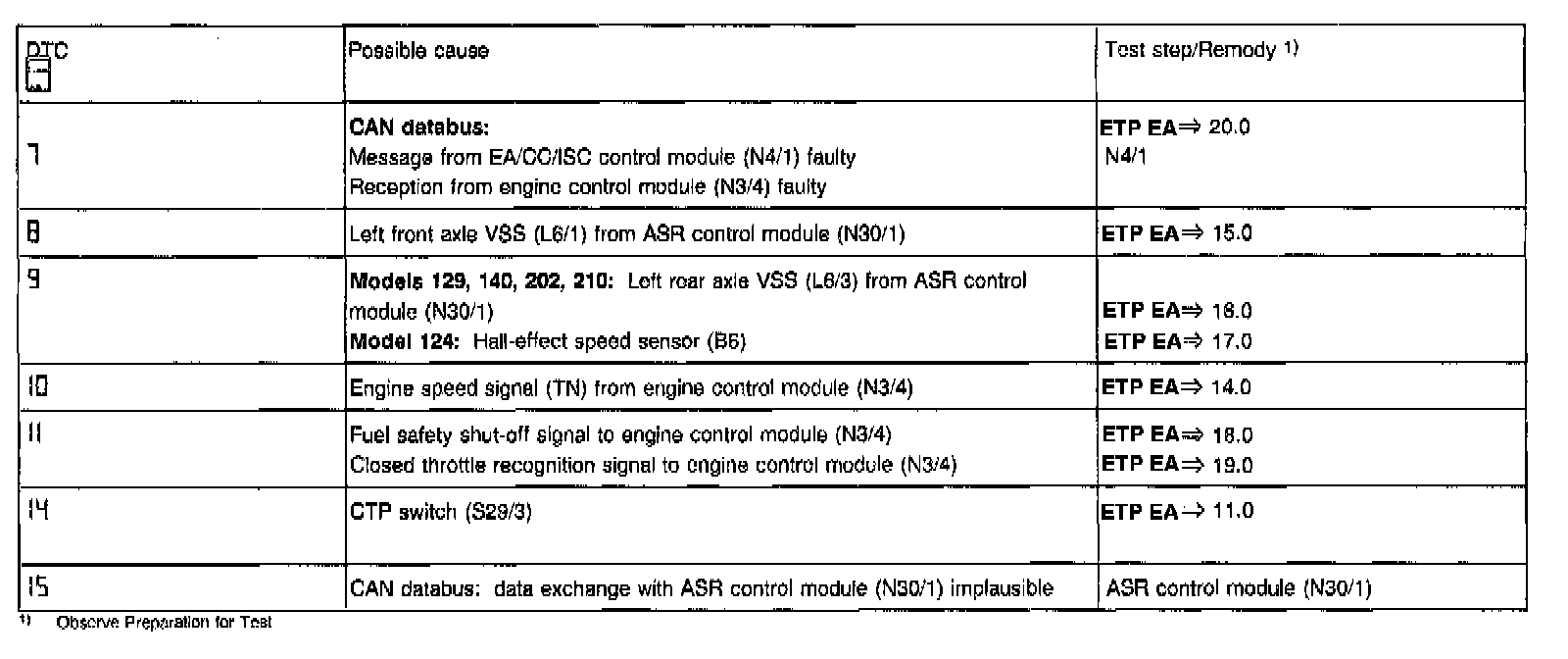

DTC 7, 8, 9, 10, 11, 14, 15:
