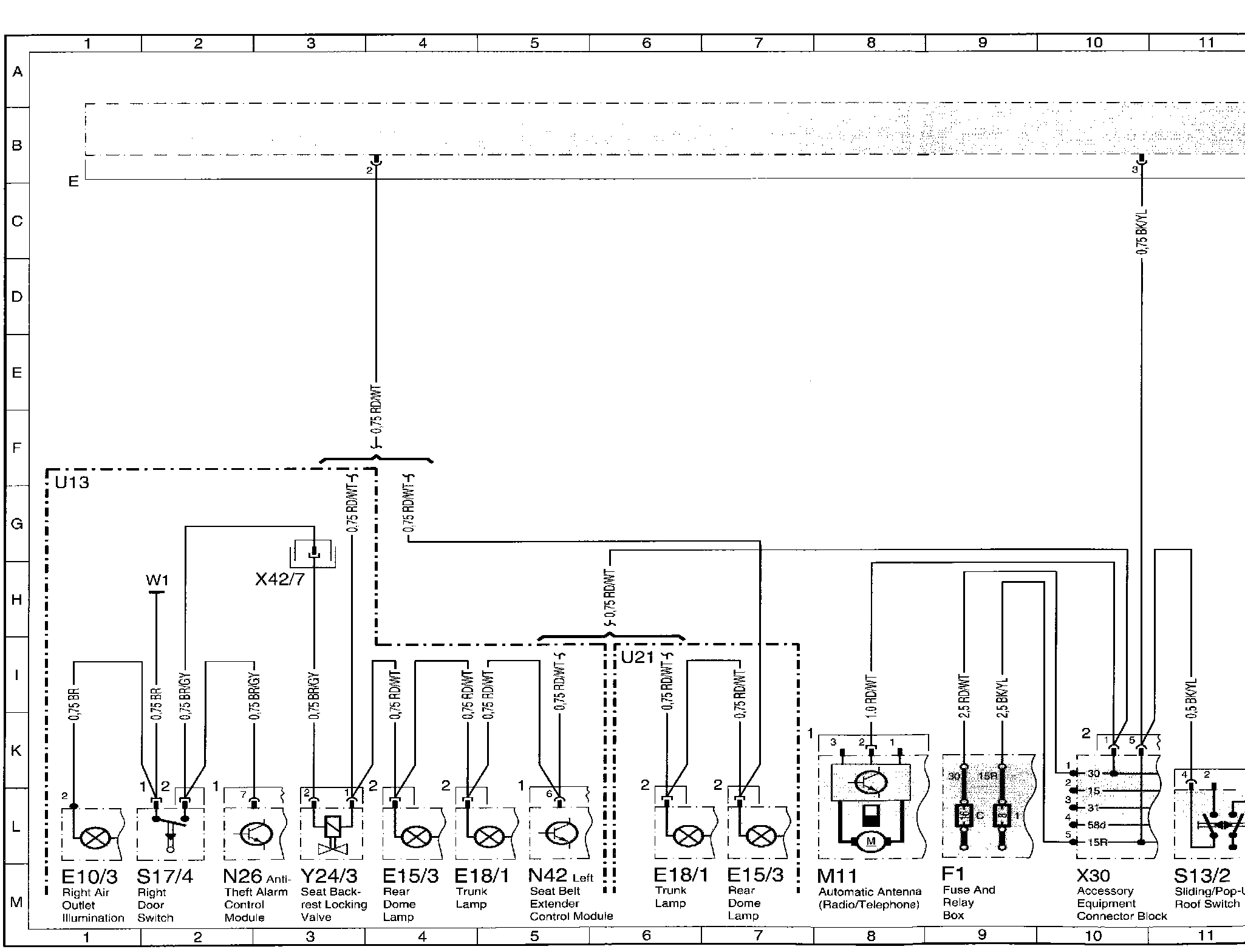

Wiring Diagram
�A.Q�.Qk�.QPower Windows, Convenience Feature (Part 1 Of 2):

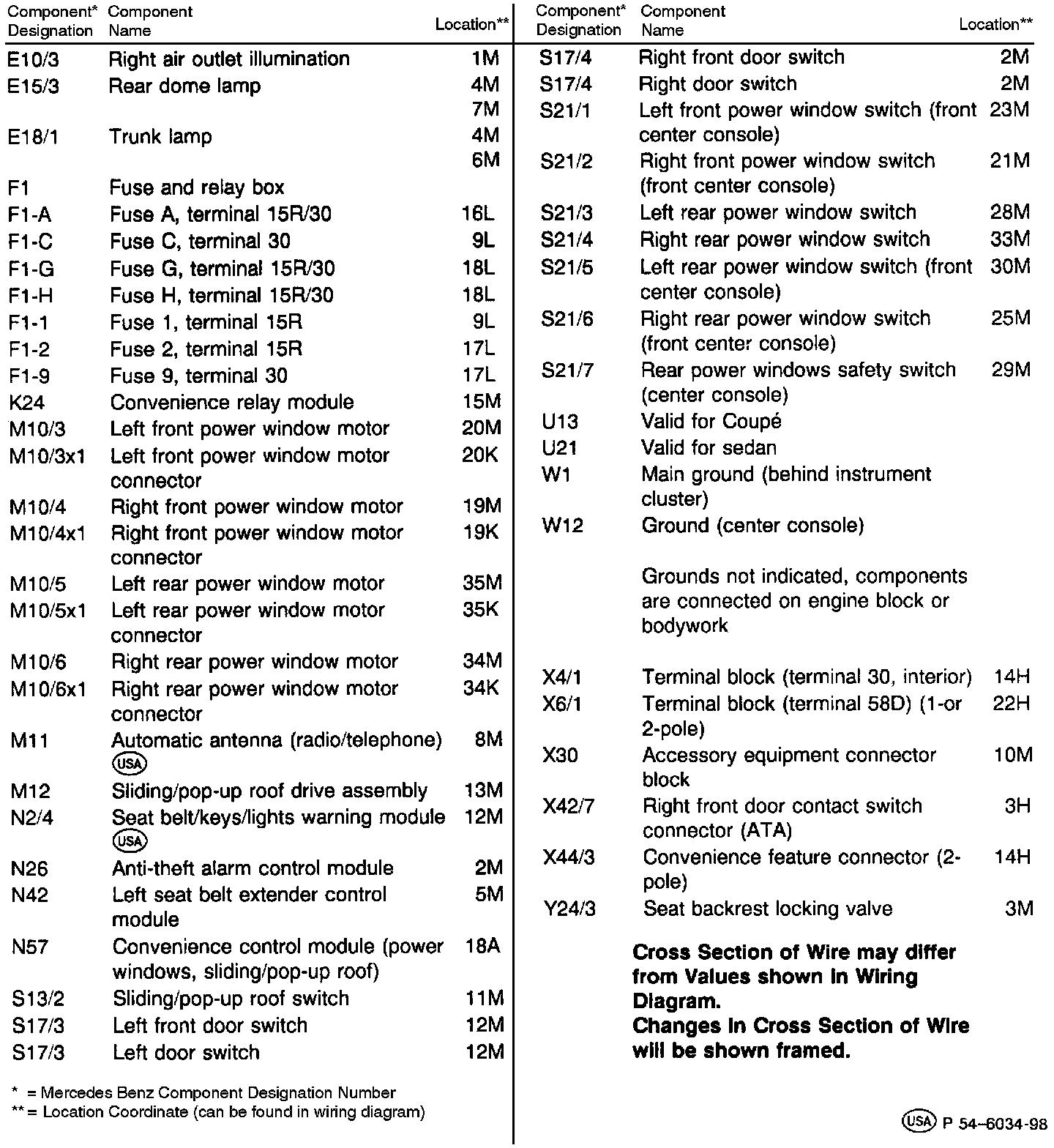

Component Index
Power Windows, Convenience Feature - Component Index:
