Home >> Mercedes Benz >> 1995 >> E 300 (124.131) L6-3.0L DSL (606.910) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Testing Vacuum Amplifier

Testing Vacuum Amplifier

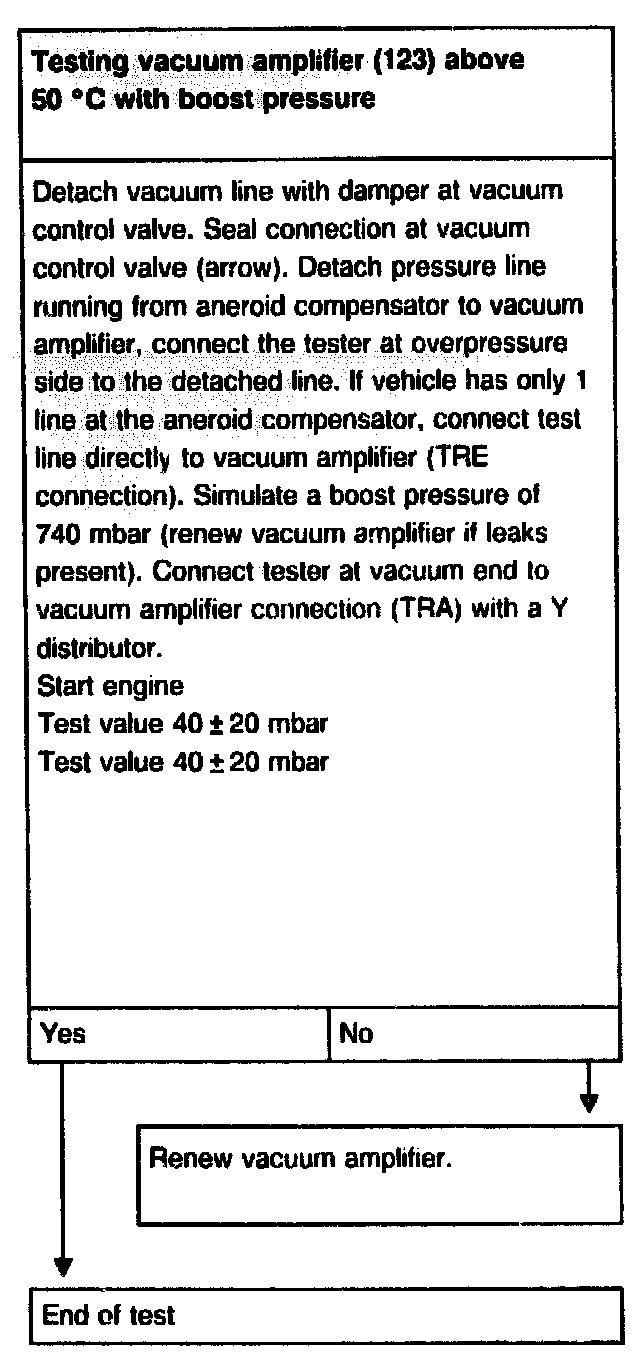

Testing Vacuum Amplifier (123) Above 50 °C with Boost Pressure


Testing:

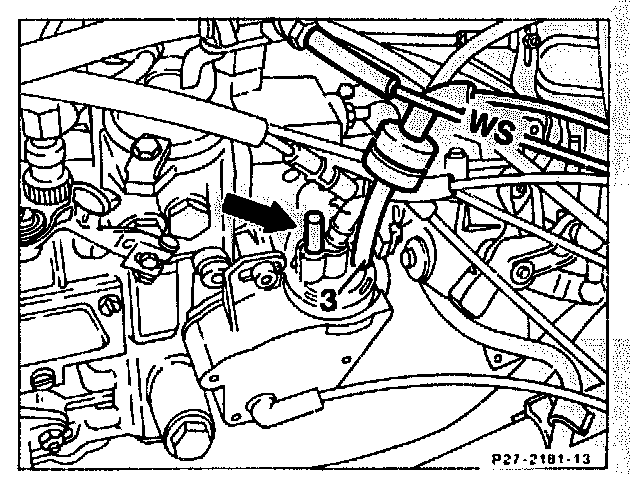

Vacuum Amplifier:
