Installation of Bottom Cover/Intermediate Plate Gasket

Installation Survey Bottom Cover - Intermediate Plate - Gasket


The list provides an overview of the combinations of bottom cover - intermediate plate - gasket which can be installed.

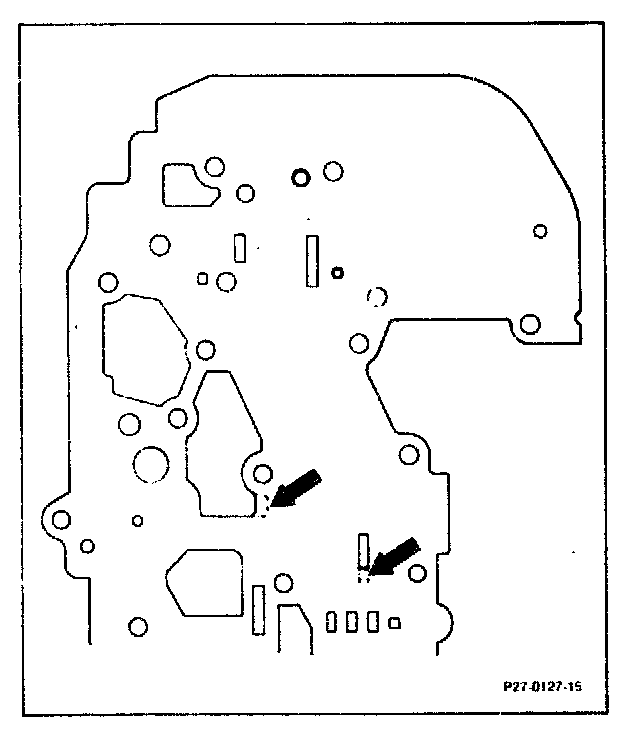

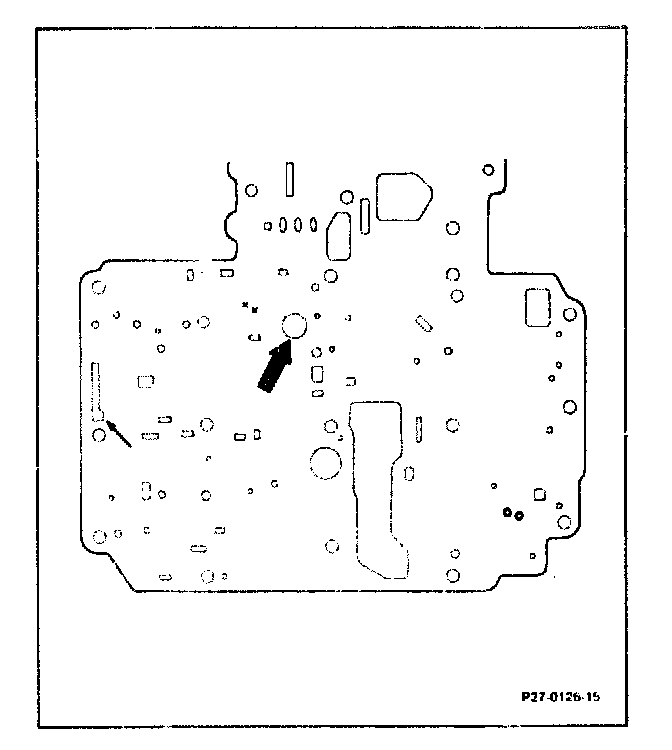

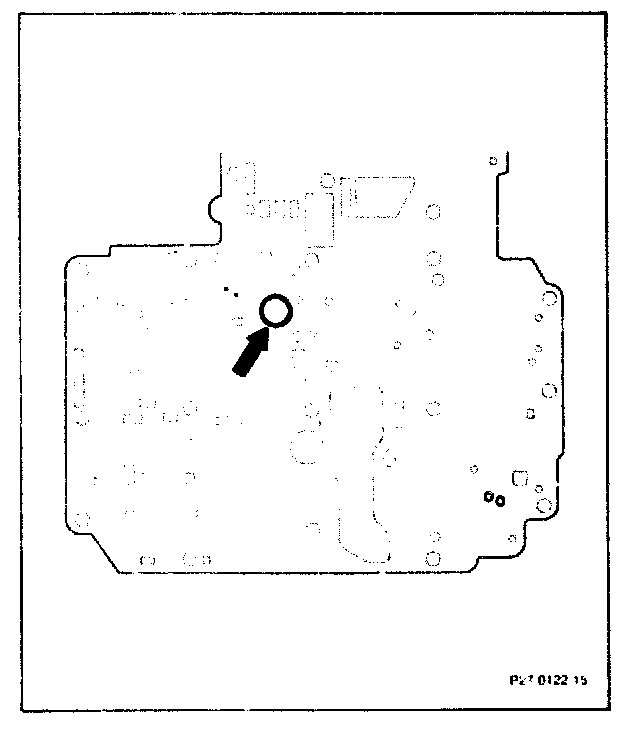

Intermediate plate and gasket have different hole patterns (arrows).

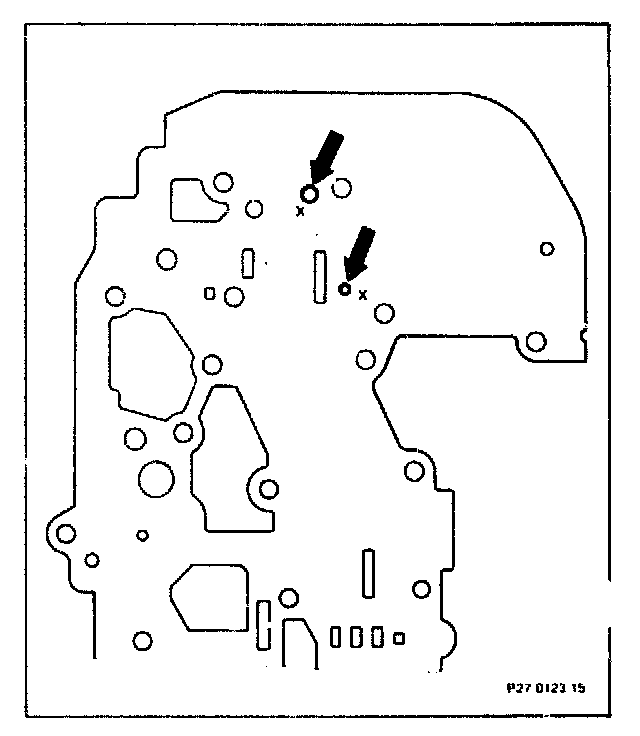

The crosses mark the points at which no holes may be present.

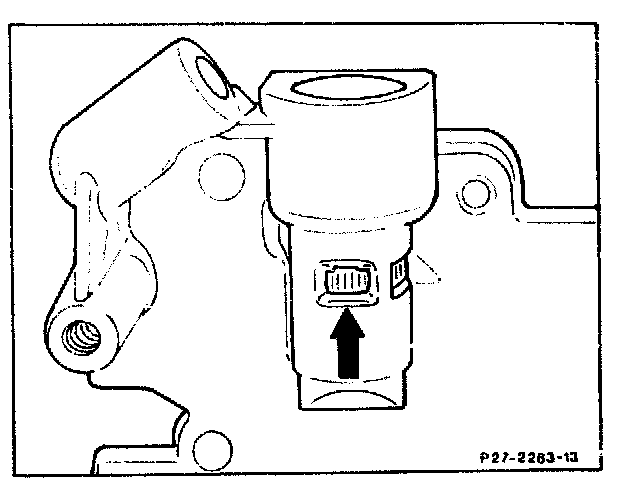

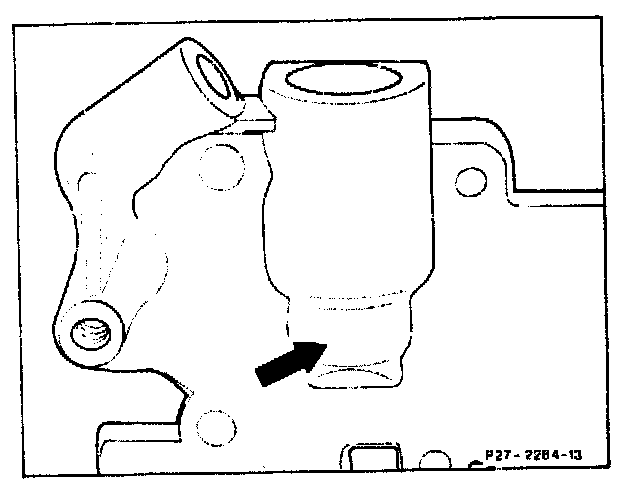

The bottom cover differs in the hole for the locking piston (arrow).






1st version up to Transmission End No. 71 825

Bottom cover Part No.123 277 04 03 (may also be installed together with intermediate plate 123 277 35 14 and gasket 123 277 05 80).

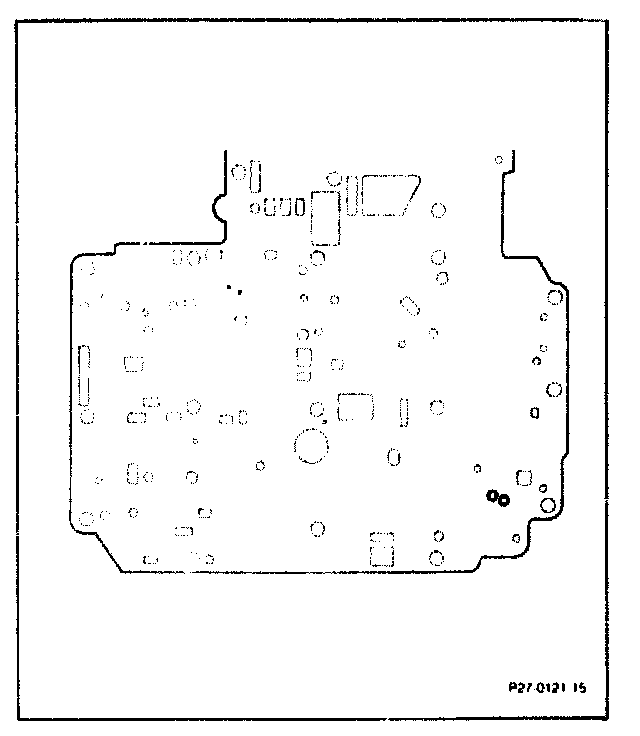

Intermediate plate Part No.123 277 14 14






Gasket Part No 123 277 03 80 (replacement is 201 277 02 80)






2nd version effective Transmission End No. 71 826

Bottom cover Part No.123 277 05 03 (may also be installed together with intermediate plate 123 277 14 14 and gasket 123 277 03 80).

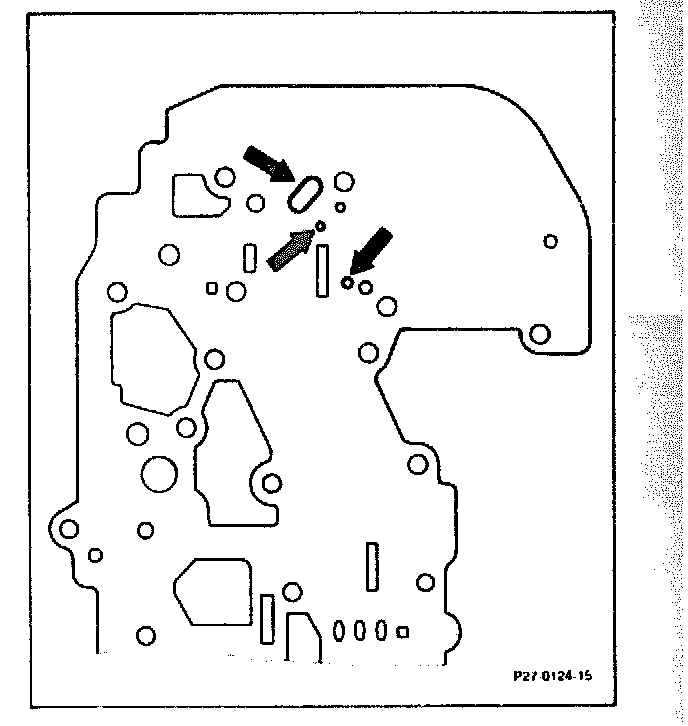

Intermediate plate (for airbag) Part No.123 277 35 14






Gasket (for airbag) Part No.123 277 05 80

3rd version Installed effective Transmission End No.

722.404/405/401 215 279
722.4 other transmission types 206 489


Note:
The modified version can likewise be installed in transmissions with a lower number when exchanging the bottom cover, in combination with the large intermediate plate and the modified gasket. The modified intermediate plate and the modified gasket must not, however, be used on transmissions with the previous cover.

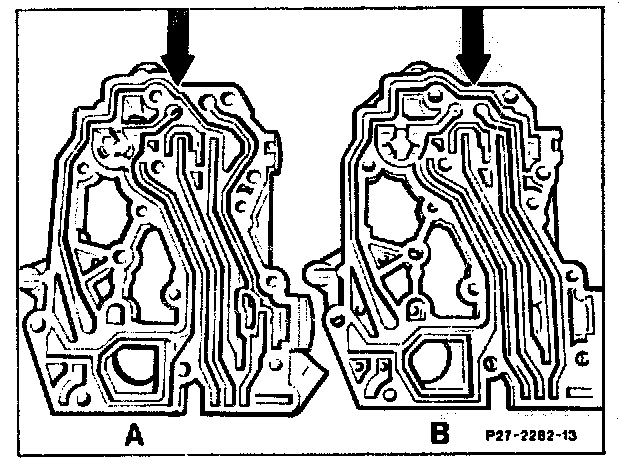

A Modified version
B Previous version

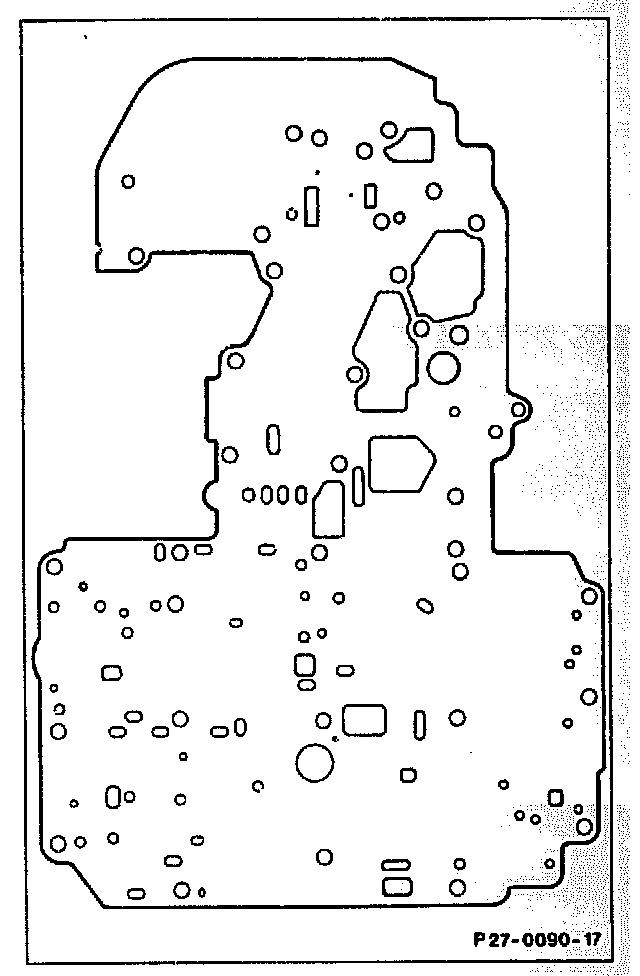

Intermediate plate 123 277 33 14

Gasket 123 277 04 80

Replacement is 201 277 00 80





4th Version
Intermediate plate 123 277 45 14 installed effective Transmission End No.475 748 and replacement for intermediate plate 123 277 33 14.






Gasket 123 277 06 80 installed effective Transmission End No.475 748 and replacement for gasket 123 277 04 80/05 80.
Replacement is 201 277 00 80 (asbestos-tree).






5th Version
Intermediate plate 124 277 06 147 installed effective Transmission End No.558 459 and replacement for intermediate plate 123 277 33 14/45 14.

Applicable gasket 123 277 06 80 or 201 277 00 80.





6th Version

Intermediate plate 124 277 20 14
applicable gasket 201 277 00 80

(effective use of Belleville spring washer LB3) phased in effective Transmission End No. 673441.

Note:
The intermediate plate must not be installed in transmissions without Belleville spring washer.






7th Version
Intermediate plate 124 277 26 14
Applicable gasket 201 277 00 80

(effective implementation of transmission shift point retard)
