Home >> Mercedes Benz >> 1995 >> E 300 (124.131) L6-3.0L DSL (606.910) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod, Engine >> Connecting Rod Refinishing Dimensions

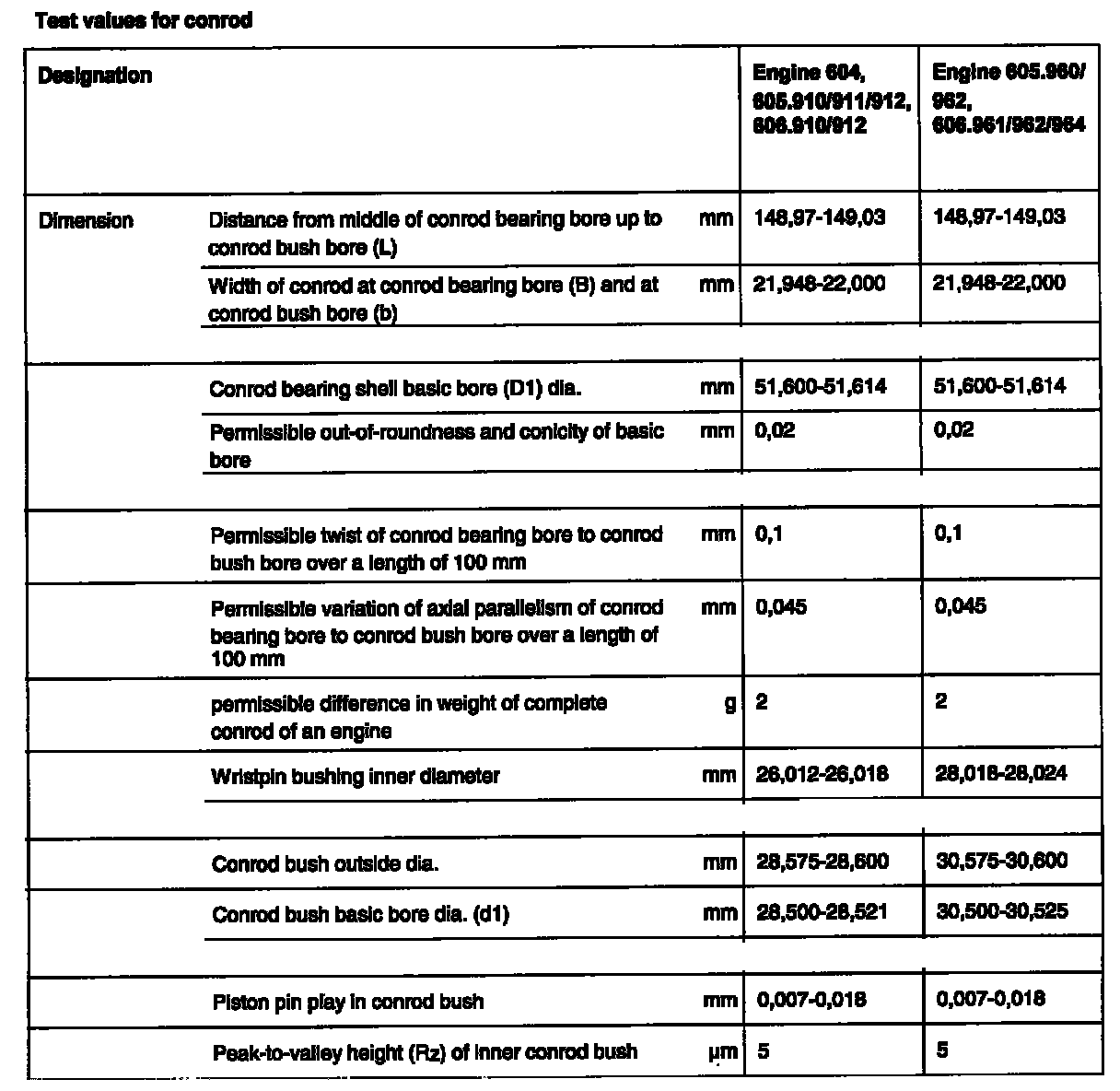

Connecting Rod Refinishing Dimensions
