Variable Induction System: Testing and Inspection

Testing variable intake manifold system

Engine 606.910

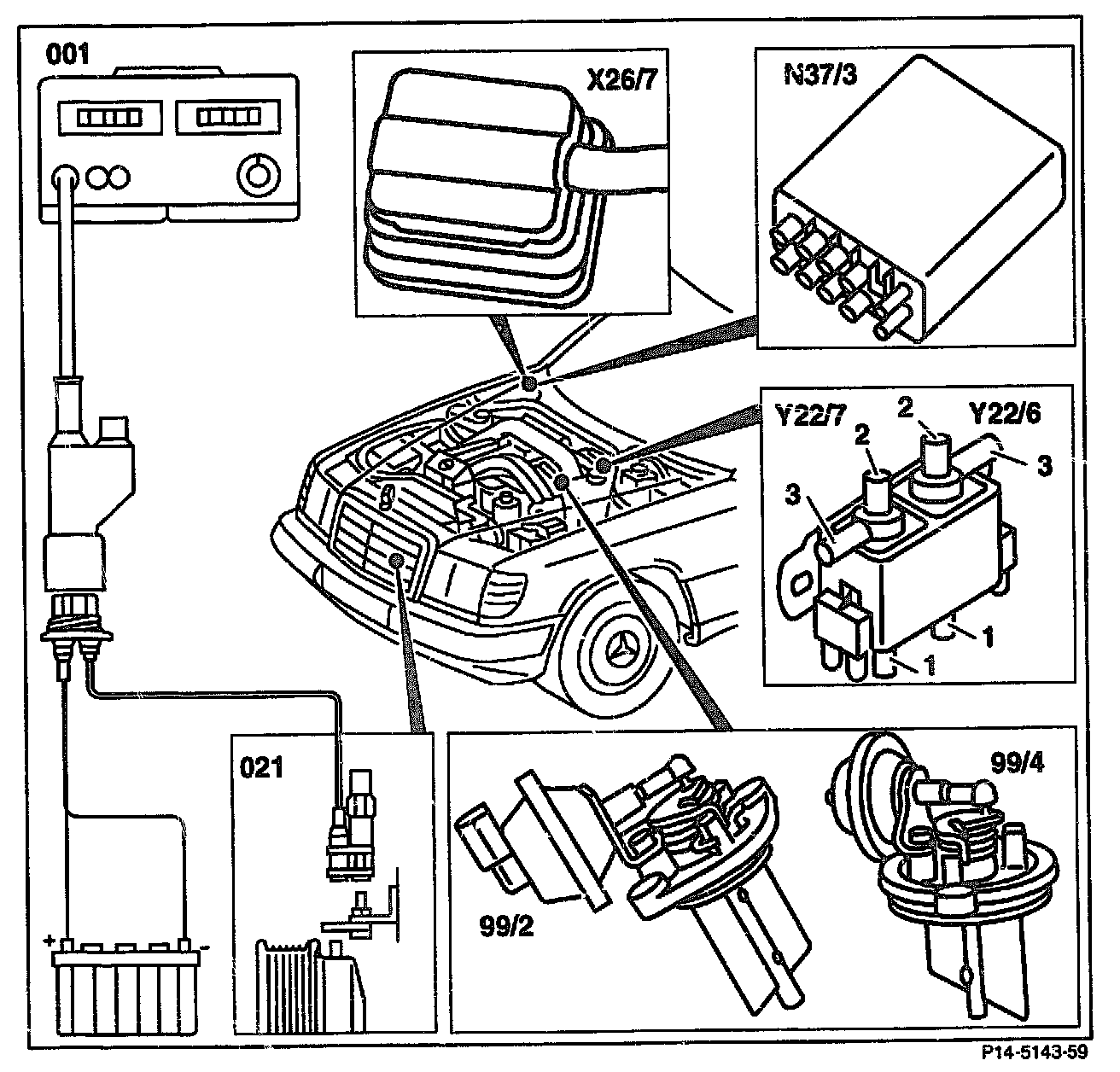

Connection diagram of digital tester without adapter, location of components

Connect digital tester (001) and pulse generator (021).
Perform test in accordance with test program "variable intake manifold system.

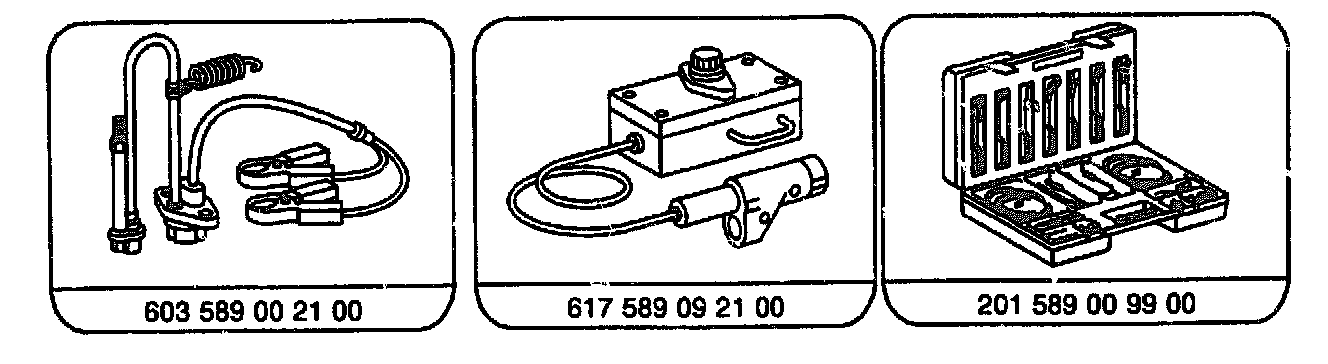

Special tools

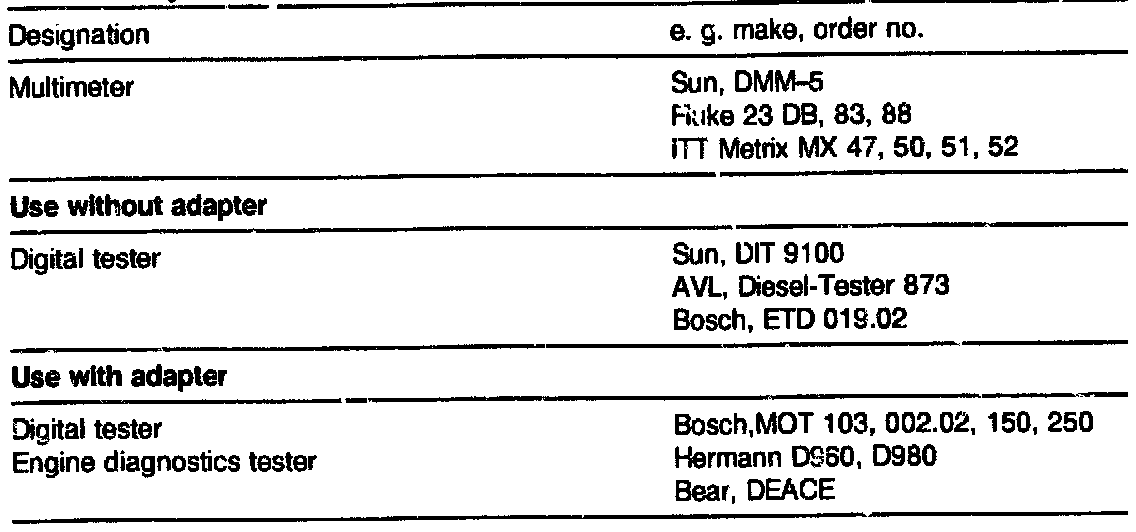

commercially available testers

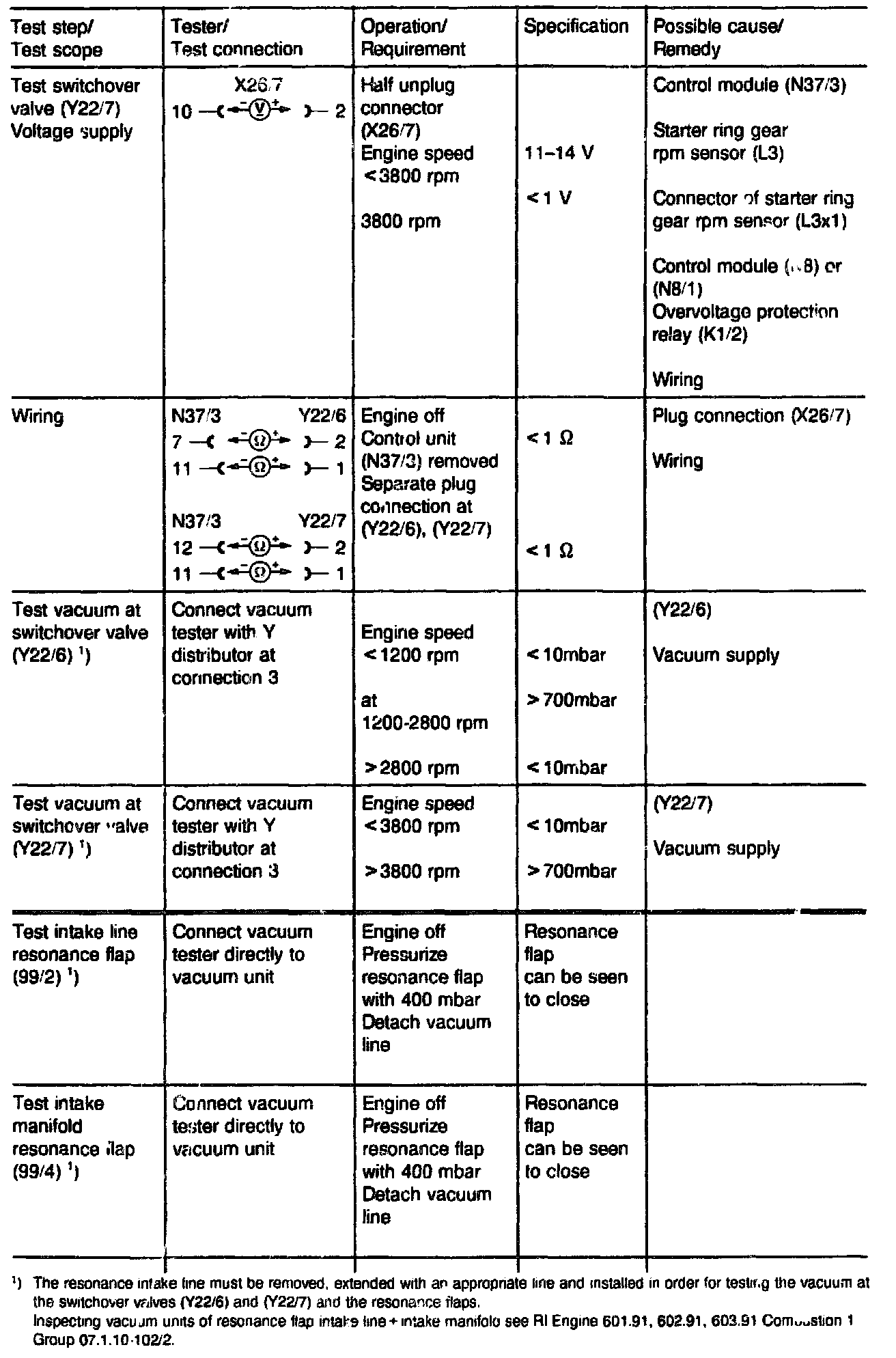

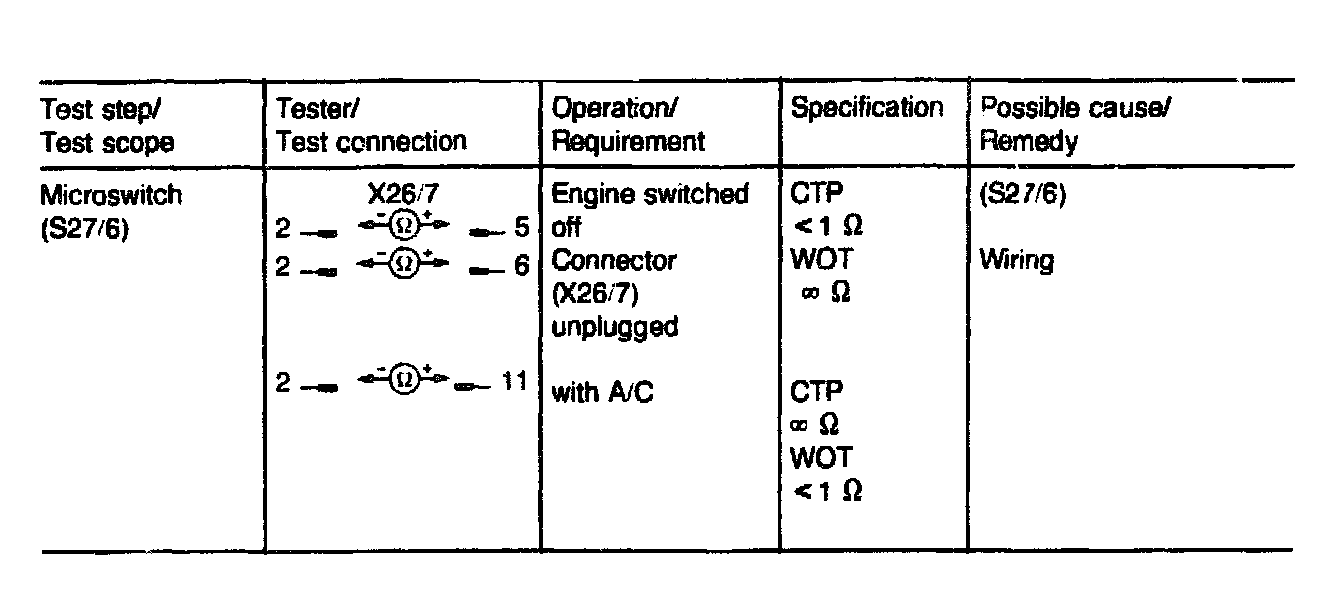

Test program, variable manifold system
