Testing Fuel Pump (Delivery)

Testing fuel pump (delivery)

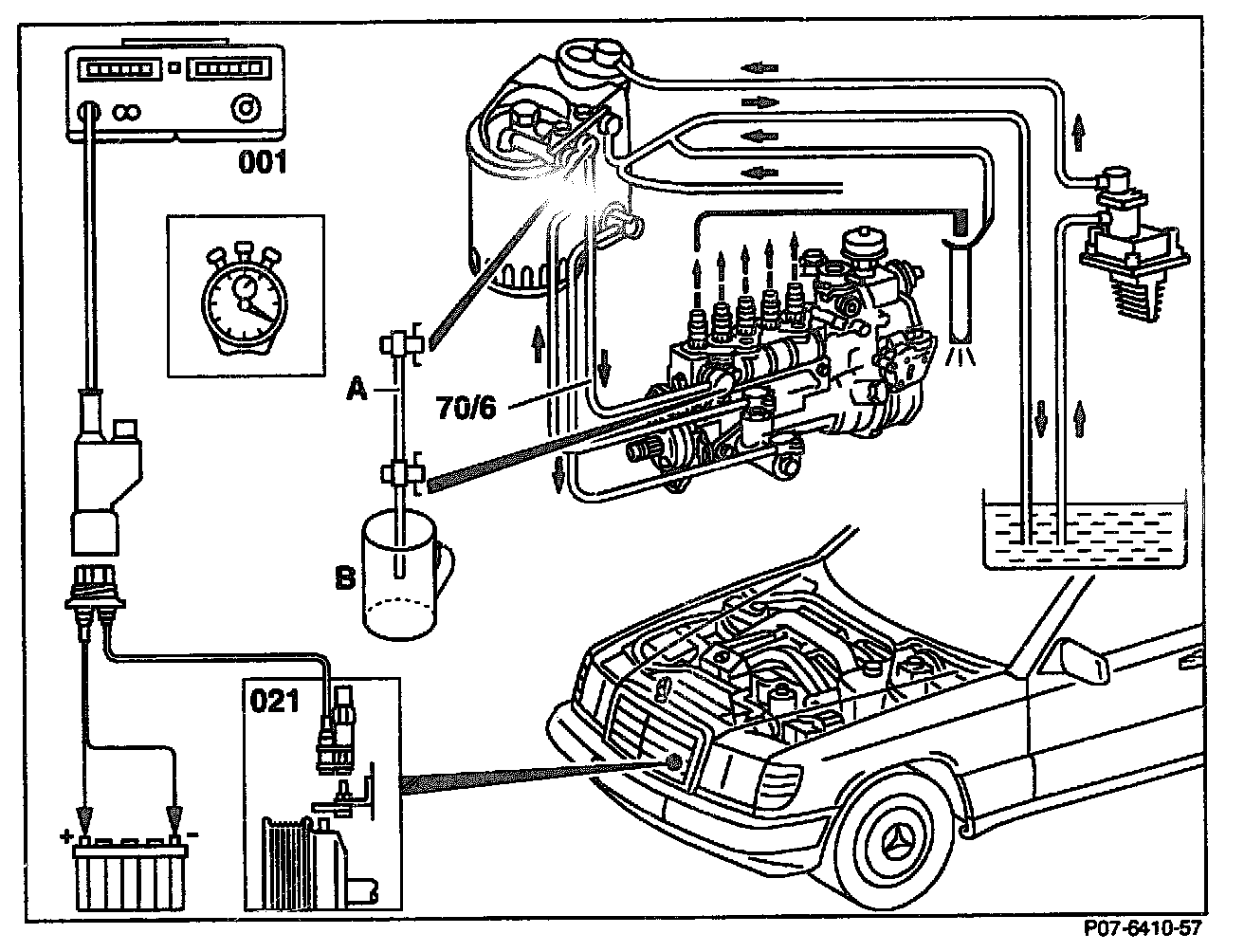

Connect digital tester (001) and pulse generator (021).
Disconnect fuel line (70/6) at fuel filter and at injection pump.
Connect test line (A) between fuel filter and injection pump.
Hold the end of the test line (A) in the measuring beaker (B).
Run engine at idle speed for 30 seconds.
Test delivery of fuel pump.
Specification: at least 150 cc.

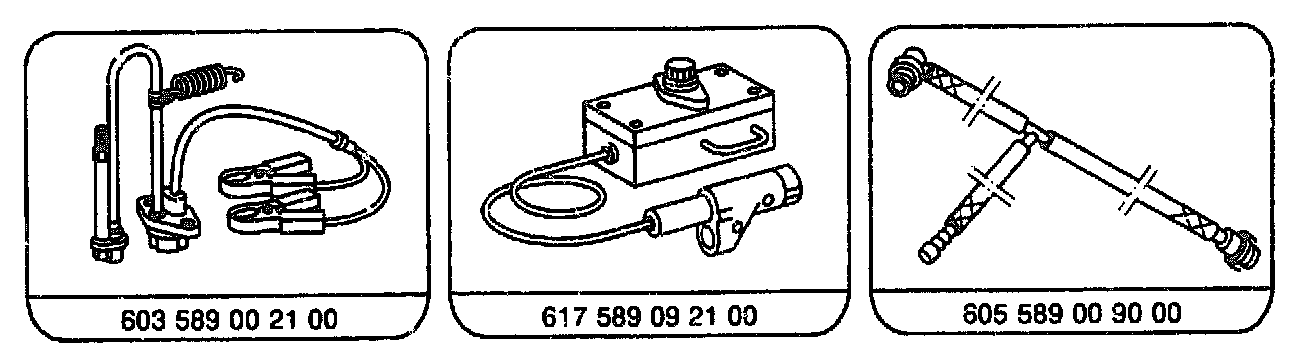

Special tools

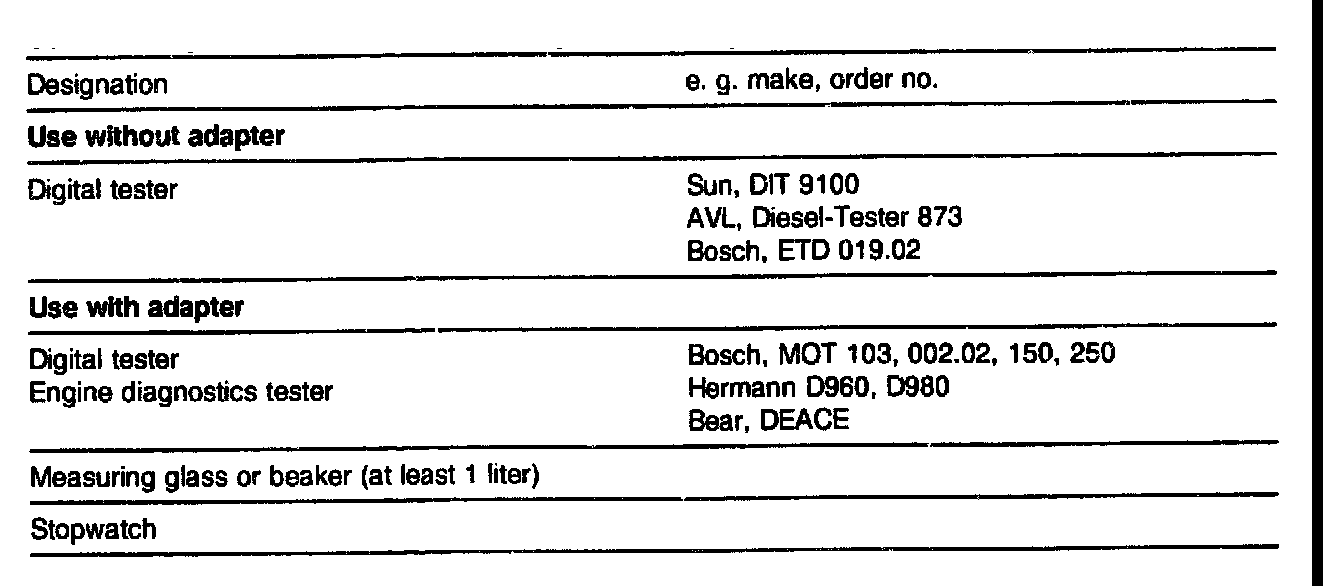

Commercially available tools and testers






Note: Fuel feed pipe from fuel filter to injection pump converted from plug connection to screw attachment.

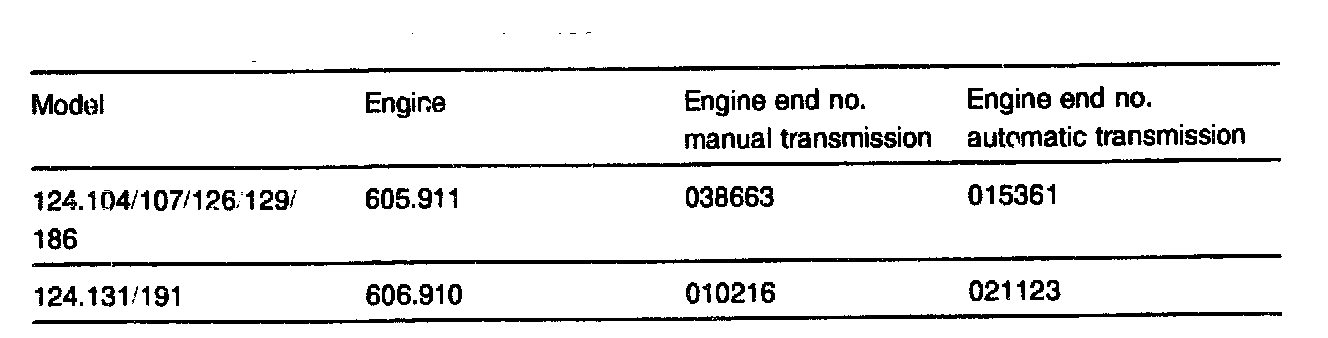

Production Break points: As of September 1995
