Testing and adjusting vacuum control valve for automatic transmission






Testing

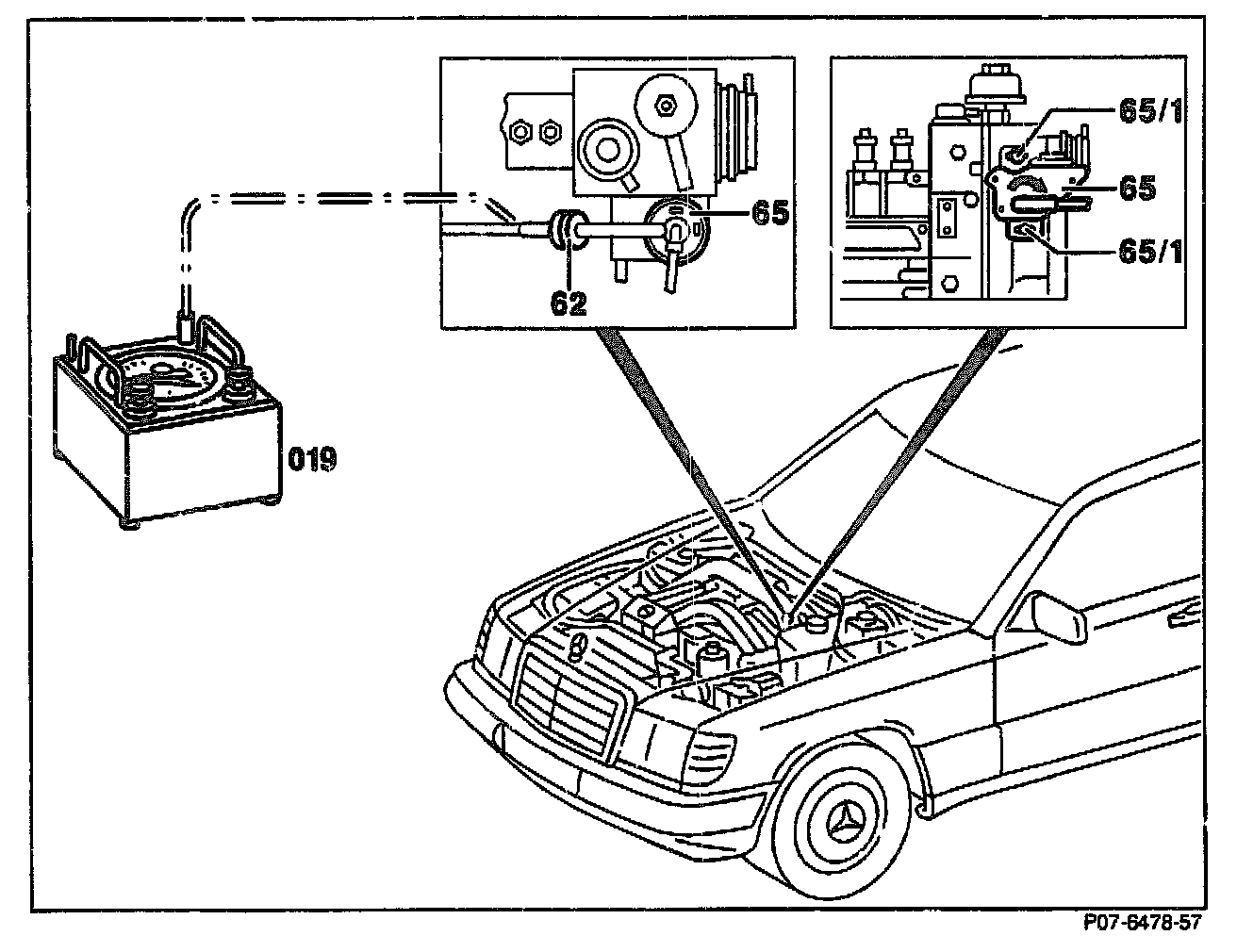

Detach vacuum line at damper (62)
Connect vacuum test (019) to damper (62).
Test vacuum with engine idling.
Specification: > 350 mbar.

Switch engine off.
Move accelerator control linkage to full throttle stop.
Specification: vacuum 0 mbar.

Note:
If the specifications are not achieved:
a) check adjustment of vacuum control valve (65).
b) check vacuum line according to vacuum diagram; replace vacuum control valve (65), if necessary.

Repair instruction
The vacuum control valves of manual and automatic transmission differ.

Adjusting

Slacken bolts (65/1).
Move accelerator control linkage to full throttle stop (engine switched off)
Turn vacuum control valve (65) in direction of arrow until resistance is felt.
Tighten bolts (66/1) in this position.

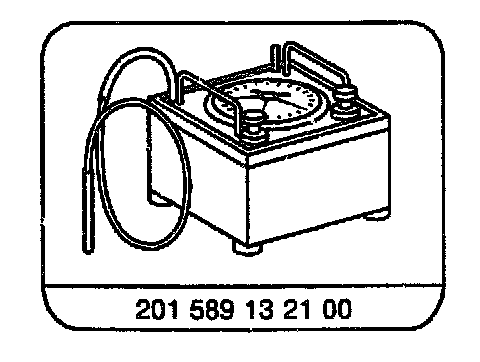

Special tool

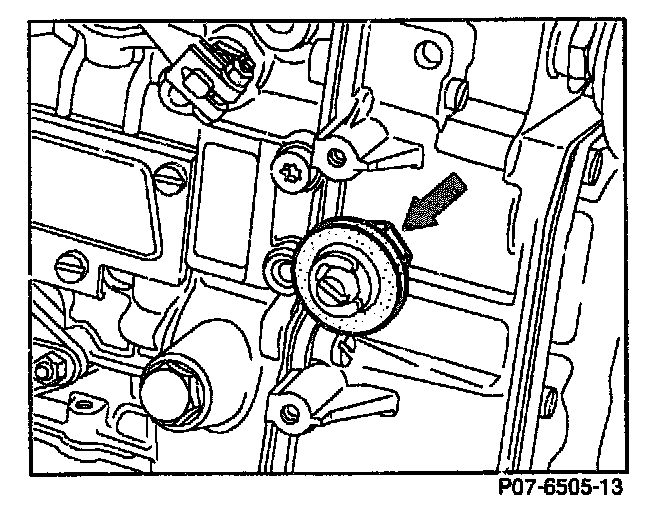

Note: A seal (arrow) is installed with the vacuum control valve to prevent dust and dirt getting into the valve.

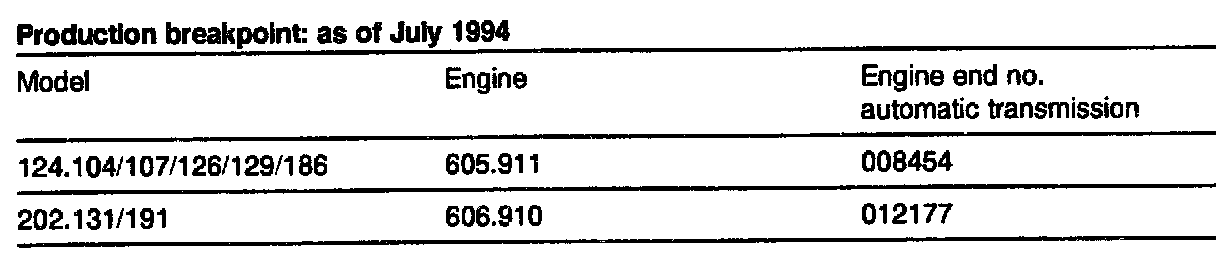

Note: Vacuum control valve modified. Restrictor integrated in vacuum control valve; the restrictor in the vacuum pipes is thus discontinued.
