Throttle Position Sensor: Locations

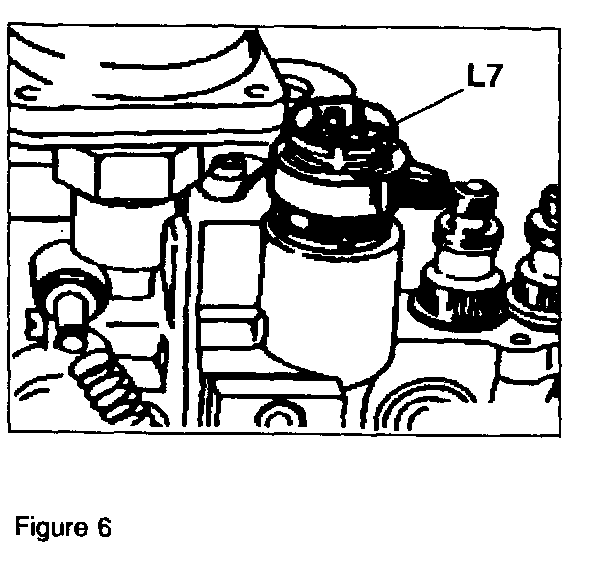

Component ID L7
Component Name Fuel rack position sensor
Component Location Left side of engine, on injection pump
