Component Locations (Pneumatic)

Diesel injection system

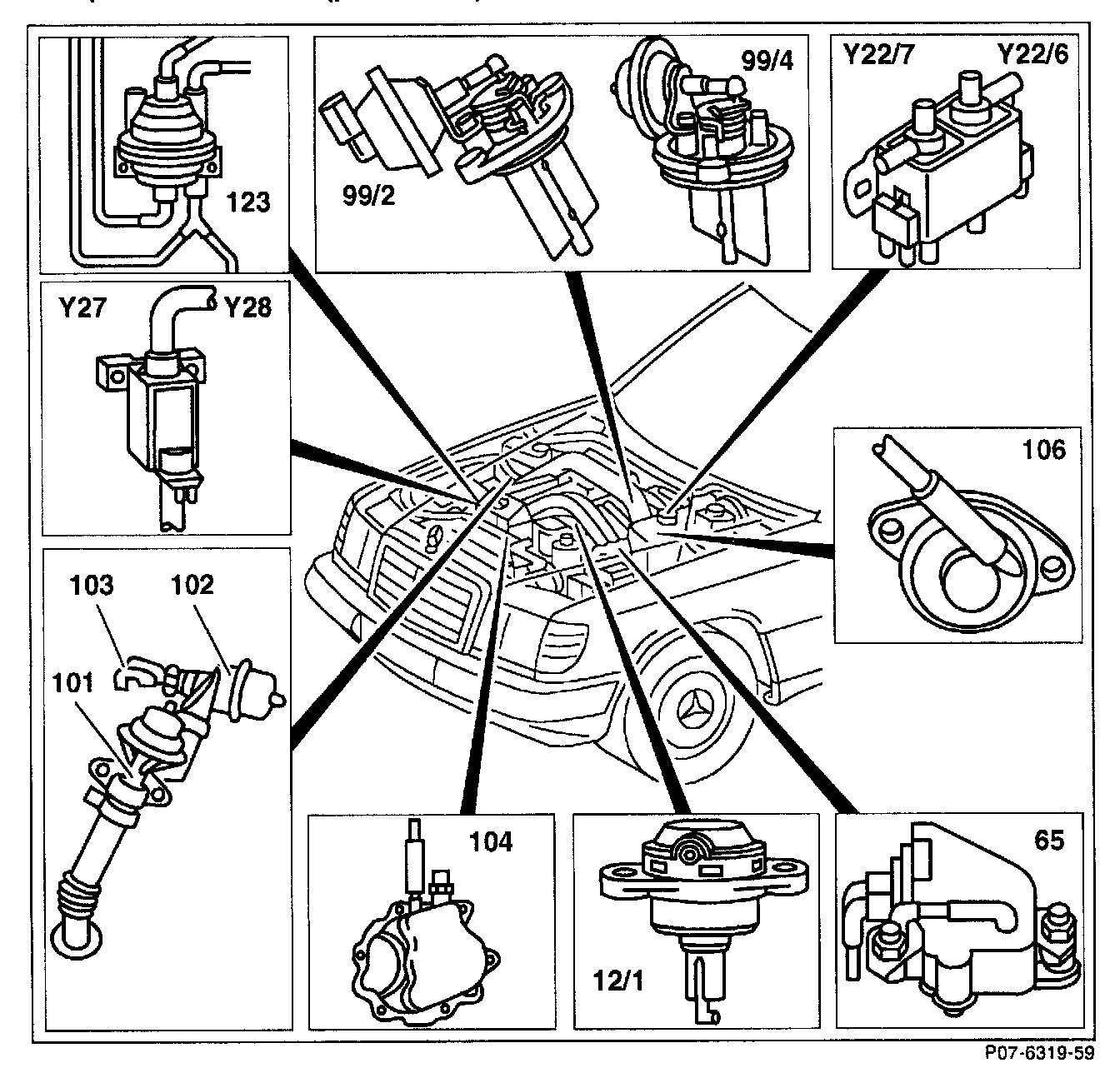

Component locations (pneumatic)






12/1 Vacuum element "STOP"
65 Vacuum control valve
99/2 Resonance valve, air intake duct
99/4 Resonance valve, intake manifold
101 EGR valve
102 Pressure control valve vacuum element
103 Pressure control valve in mixing housing
104 Vacuum pump
106 Modulator pressure vacuum element
123 Vacuum amplifier
Y22/6 Resonance intake manifold switchover valve
Y22/7 Resonance intake tine switchover valve
Y27 EGR switchover valve
Y28 Pressure control flap switchover valve
