Component Locations (Electrical)

Diesel injection system

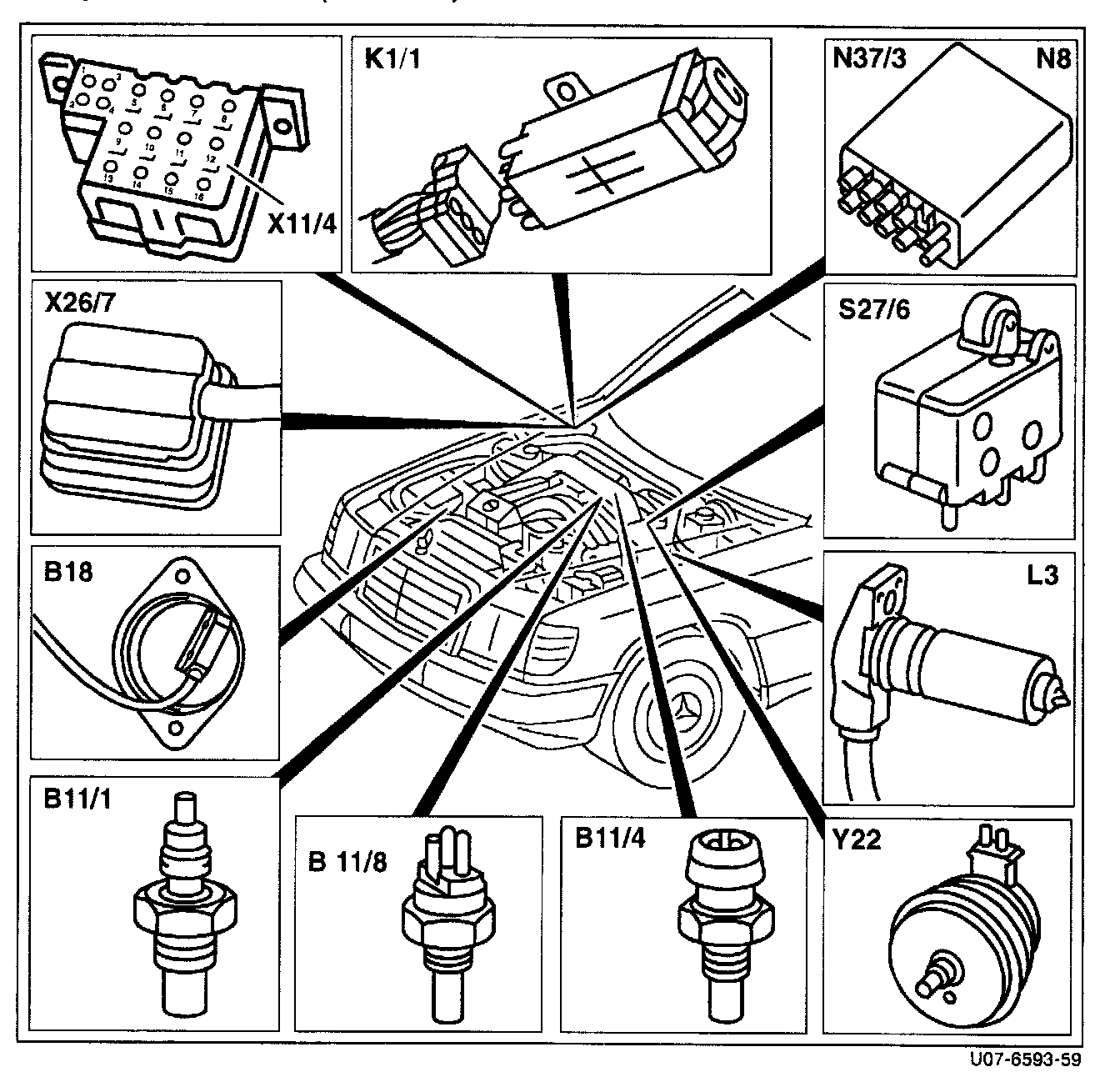

Component locations (electrical)






B11/1 ECT sensor (ISC)
B114 ECT sensor
B11/8 ECT sensor (preglow system)
B18 BARO sensor
K1/1 Overvoltage protection relay module (7-pole)
L3 Starter ring gear speed sensor
N8 ISC control module
N37/3 EGR/resonance intake manifold control module
S27/6 A/C compressor cut-out/EGR microswitch
X11/4 Data link connector (DTC readout)
X26/7 Engine harness connector (12-pole)
Y22 ISC electromagnetic actuator
