Data Link Connector: Diagrams

Data Link Connector:

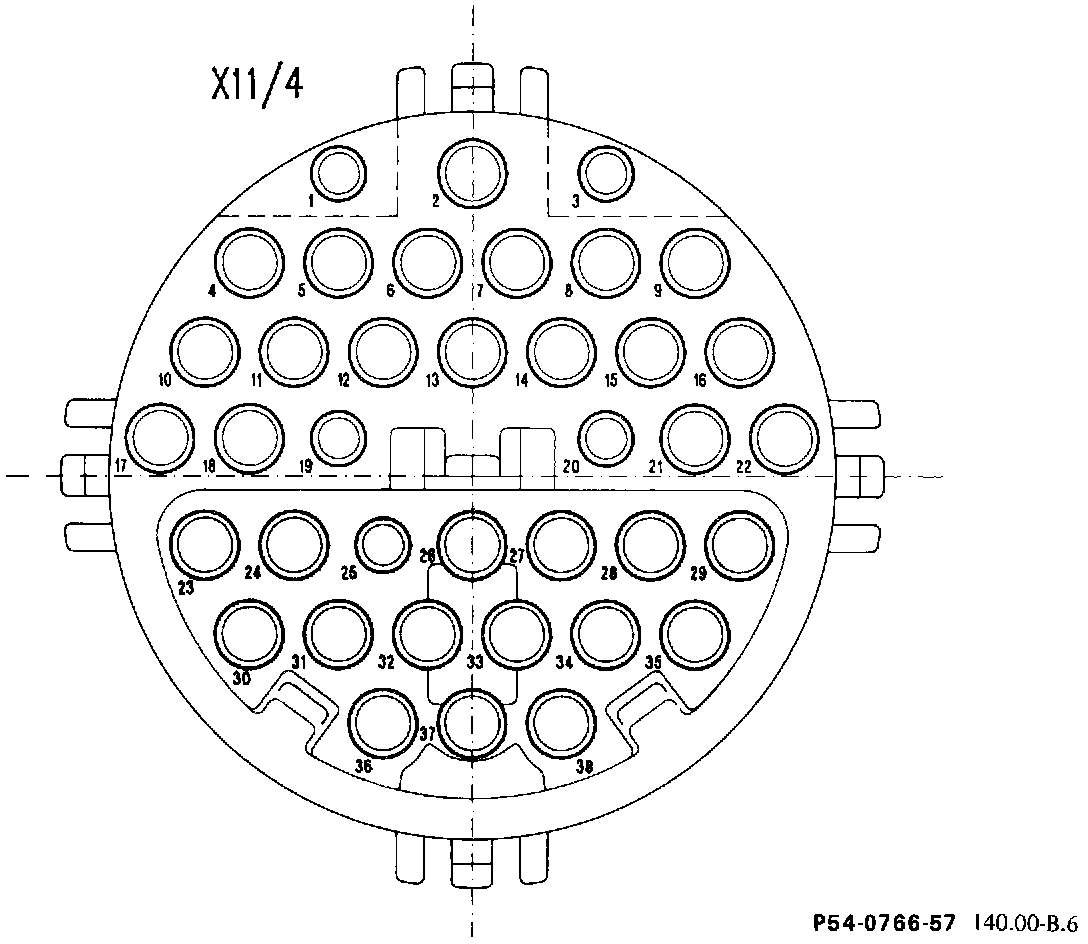

X11/4 Data link connector (diagnostic trouble code, 38-pole)

1 - Ground (battery) (W10)
- Ground (component compartment) (W16)
- A/C compressor control module (N6)
2 - Voltage circuit 87
- A/C control module (N8/2)
- A/C compressor control module (N6)
3 - F1 Fuse and relay box
- F1-9 fuse 9, circuit 30 (USA)
4 - LH-SFI control module (N3/1)
- ISC control module (N8)
- EDS control module (N39)
5 - ADS control module (N30/2)
6 - ABS control module (N30)
- ASR control module (N30/1)
7 - CC/ISC control module (N4/3)
- EA/CC/ISC control module (N4/1)
- A/C push-button control module (Automatic A/C) (N22)
8 - Base module (BM, N16/1)
- Engine control module (HFM-SFI), (N3/4)
9 - ASD control module (N30/2)
- RB control module (crash deployment), (N53)
10 - CC/ISC control module (N4/3)
- EA/CC/ISC control module (N4/1)
- A/C compressor control module (N6)
- Engine control module (HFM-SFI), (N3/4)
- Transmission control module (TCM) (5-speed automatic) (N15/1)
11 - ATA control module (N26)
12 - (not connected)
13 - TN-speed signal
14 - CC/ISC control module (N4/3)
- EA/CC/ISC control module (N4/1)
15 - (not connected)
16 - Engine control module (HFM-SFI), (N3/4)
- A/C compressor control module (N6)
- A/C push-button control module (Automatic A/C) (N22)
- EGR resonance intake manifold control module (N37/3)
- Overvoltage protection relay module (K1/2)
- Heated windshield washer system thermoswitch (S26/1)
17 - DI control module (N1/3)
18 - (not connected)
19 - Diagnostic module (OBD I), (N59)
20 - (not connected)
21 - (not connected)
22 - (not connected)
23 - ATA control module (N26)
24 - (not connected)
25 - (not connected)
26 - (not connected)
27 - (not connected)
28 - (not connected)
29 - (not connected)
30 - SRS control module (N2/2)
31 - (not connected)
32 - (not connected)
33 - (not connected)
34 - (not connected)
35 - (not connected)
36 - (not connected)
37 - (not connected)
38 - (not connected)
