Compressor Clutch Not Engaging

Checking Compressor Cutoff
If the electromagnetic coupling of the refrigerant compressor is not switched on.

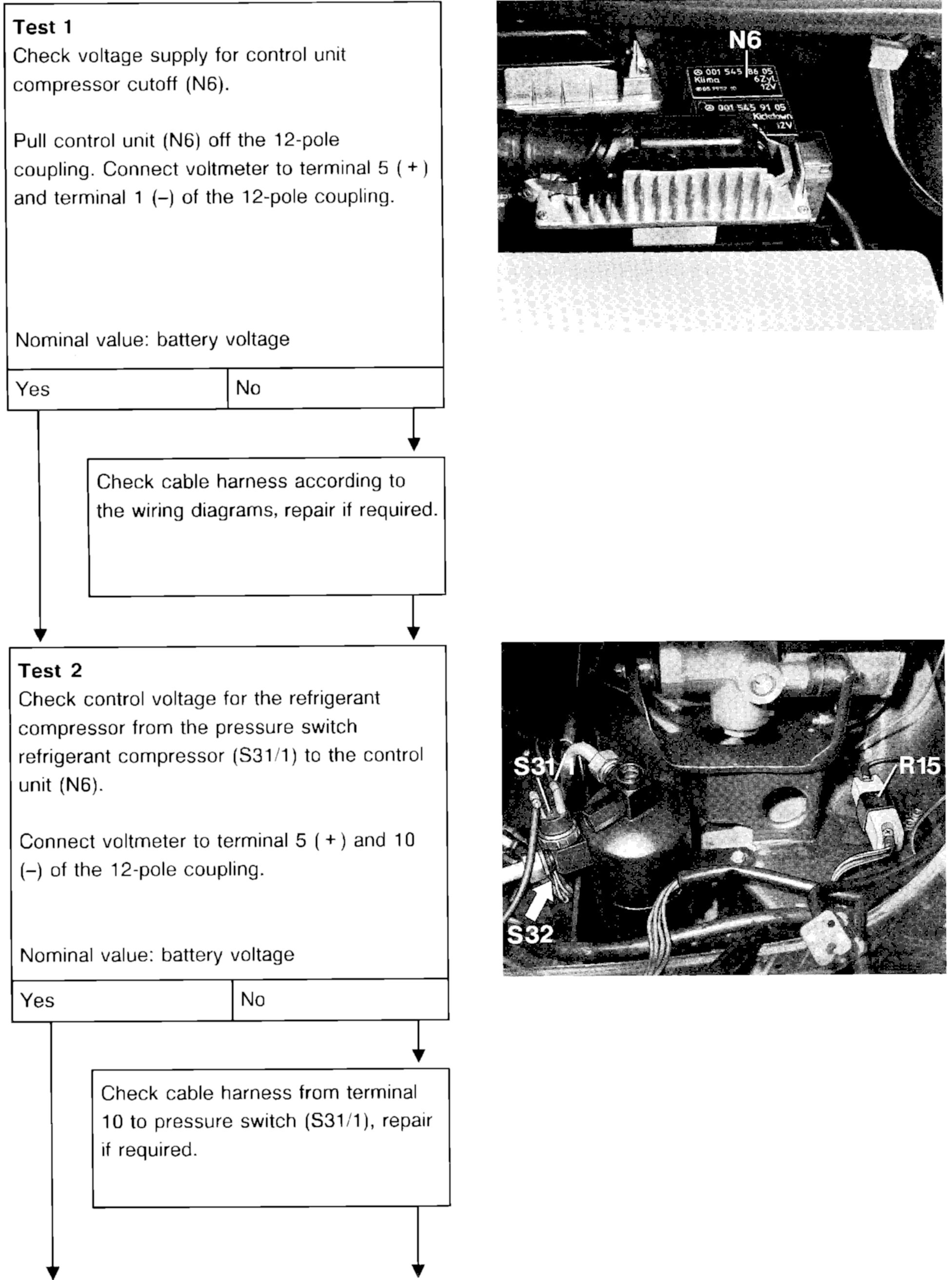

Test Step 1 - 2:

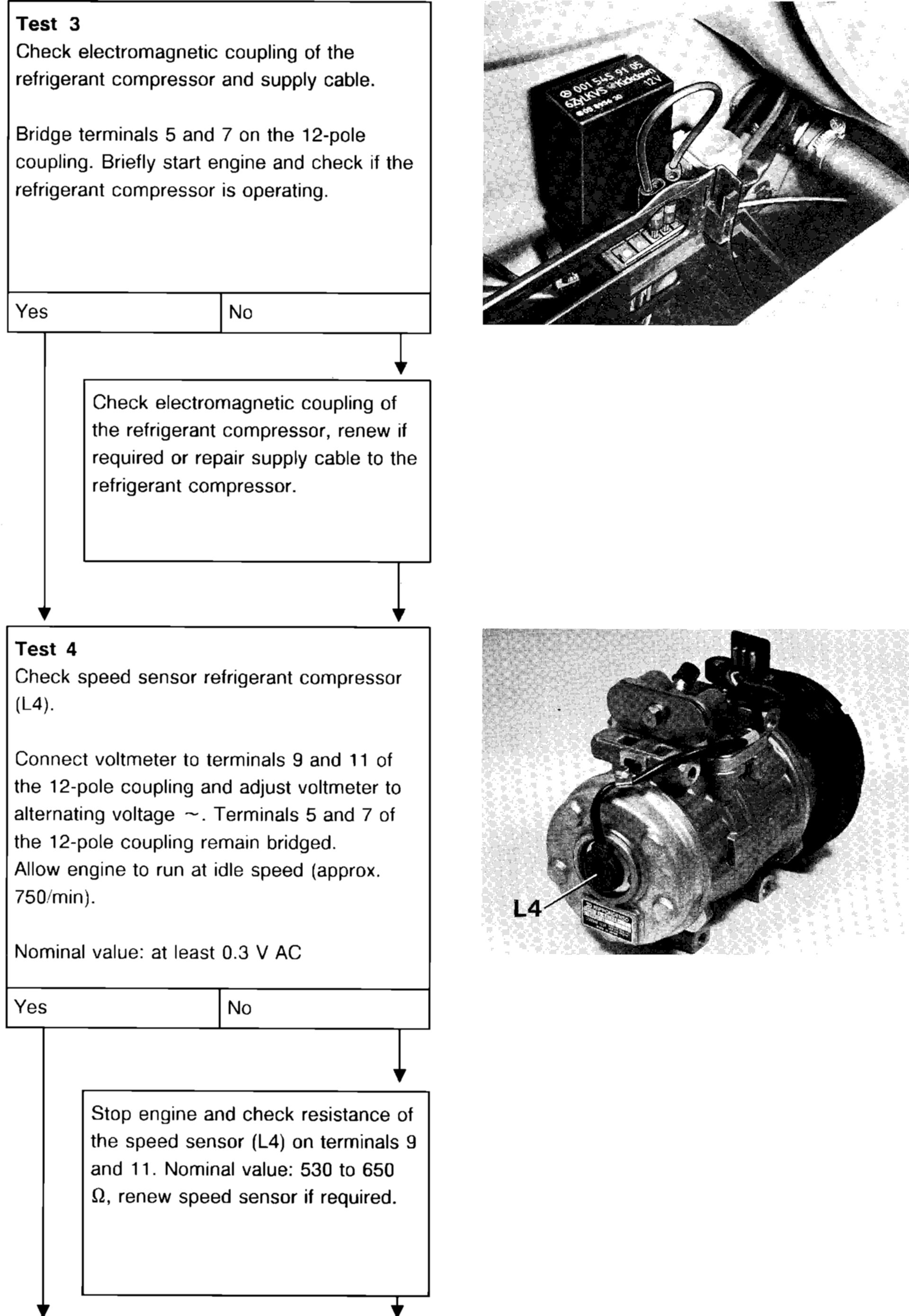

Test Steps 3 - 4:

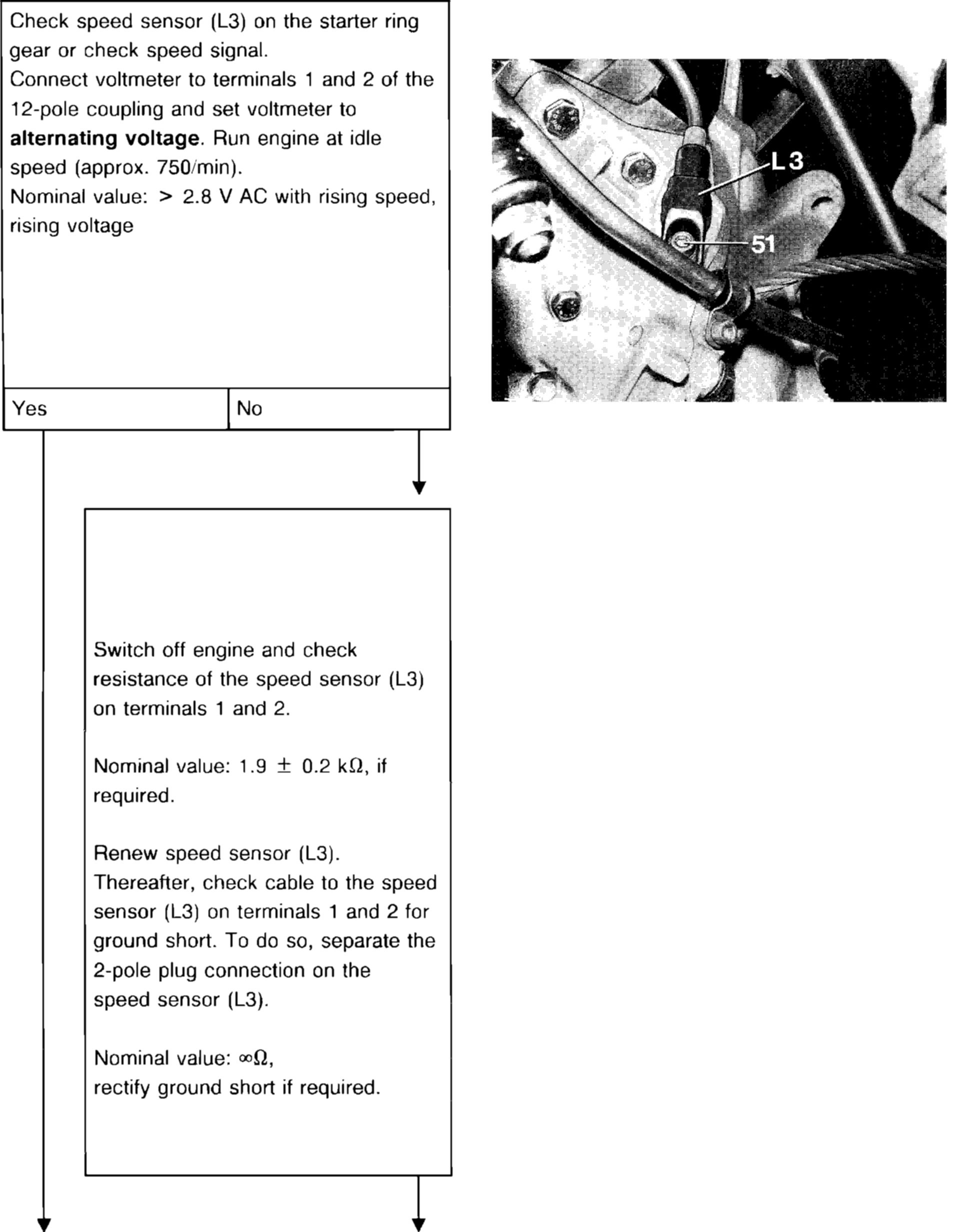

Test Step 5:

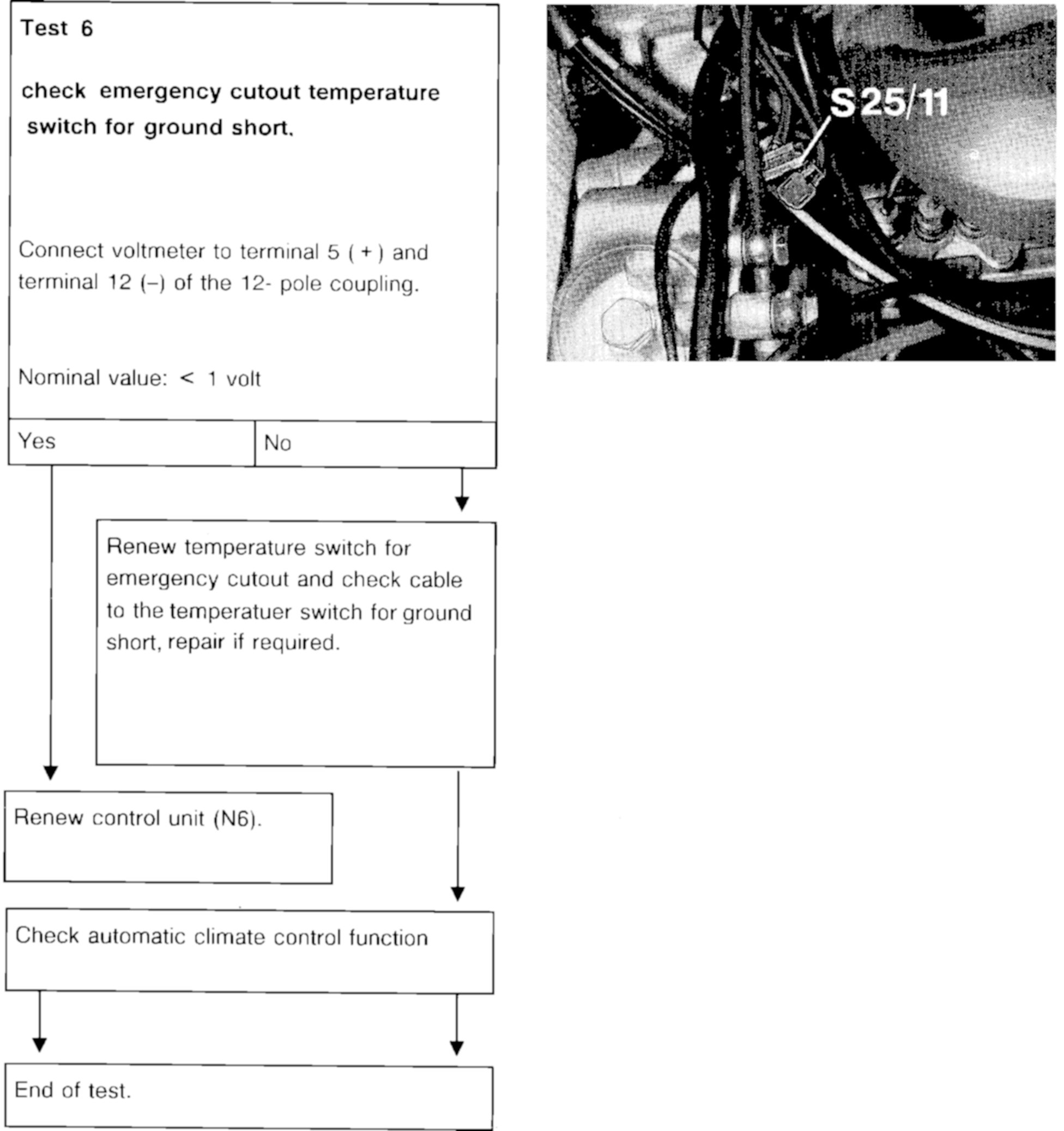

Test Step 6:
