Home >> Mercedes Benz >> 1995 >> E 300 (124.131) L6-3.0L DSL (606.910) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pan >> Service and Repair

Oil Pan: Service and Repair

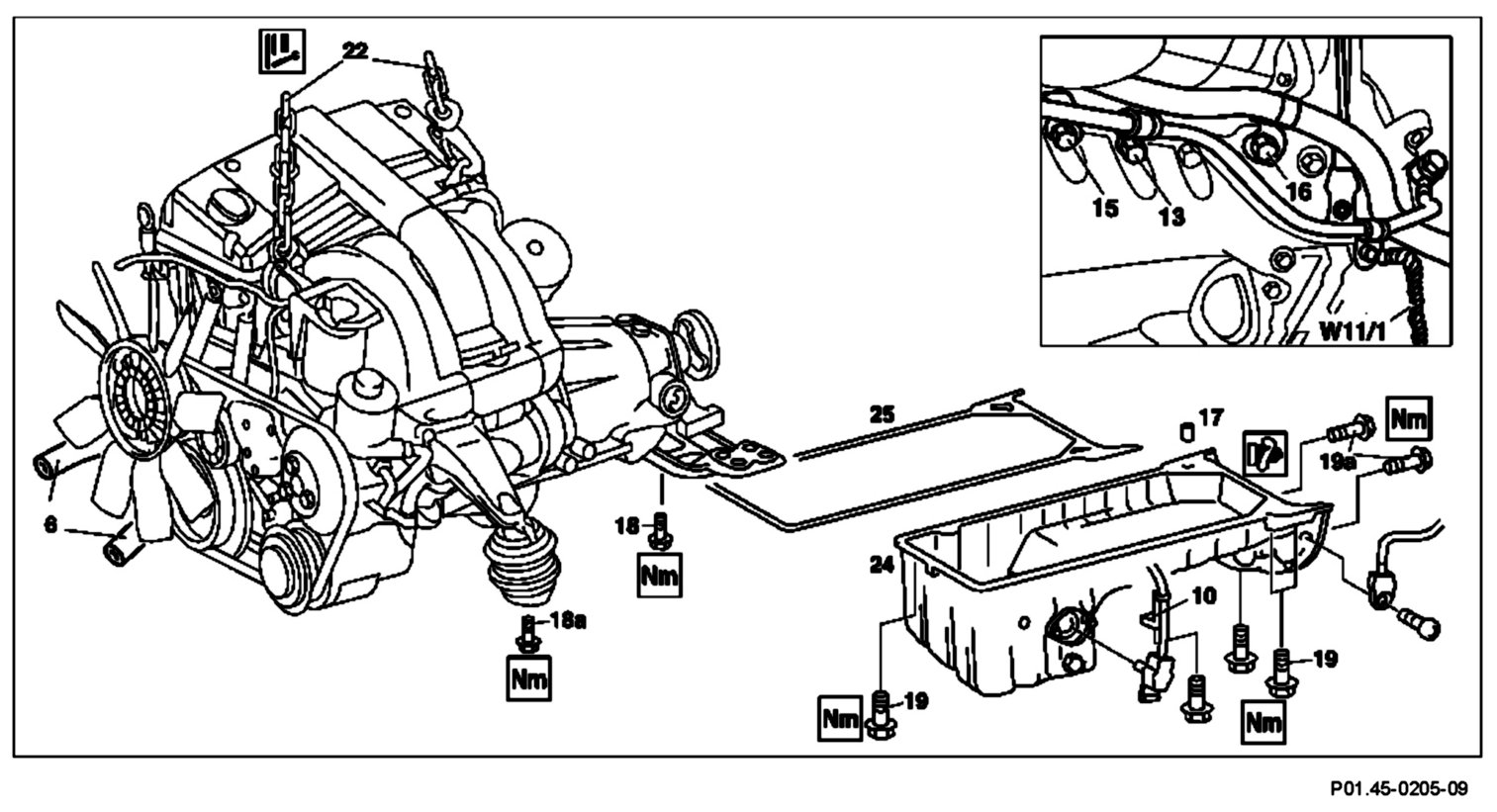

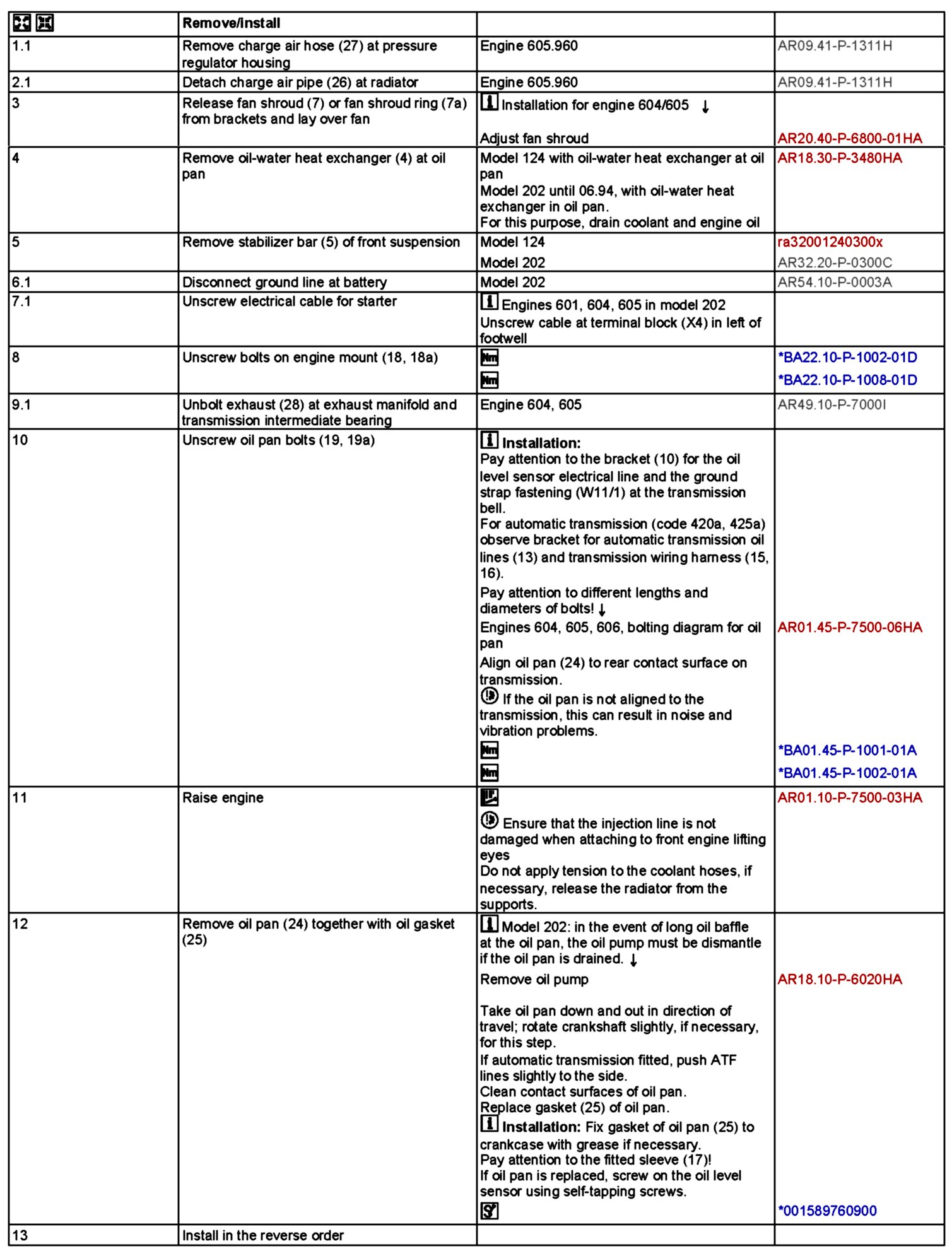

AR01.45-P-7500HA Remove/Install Oil Pan
