Radio MB With Sound System (Optional on Other Models)
Radio MB With Sound System (Optional on Other Models)
d�<Radio MB (With Sound System):

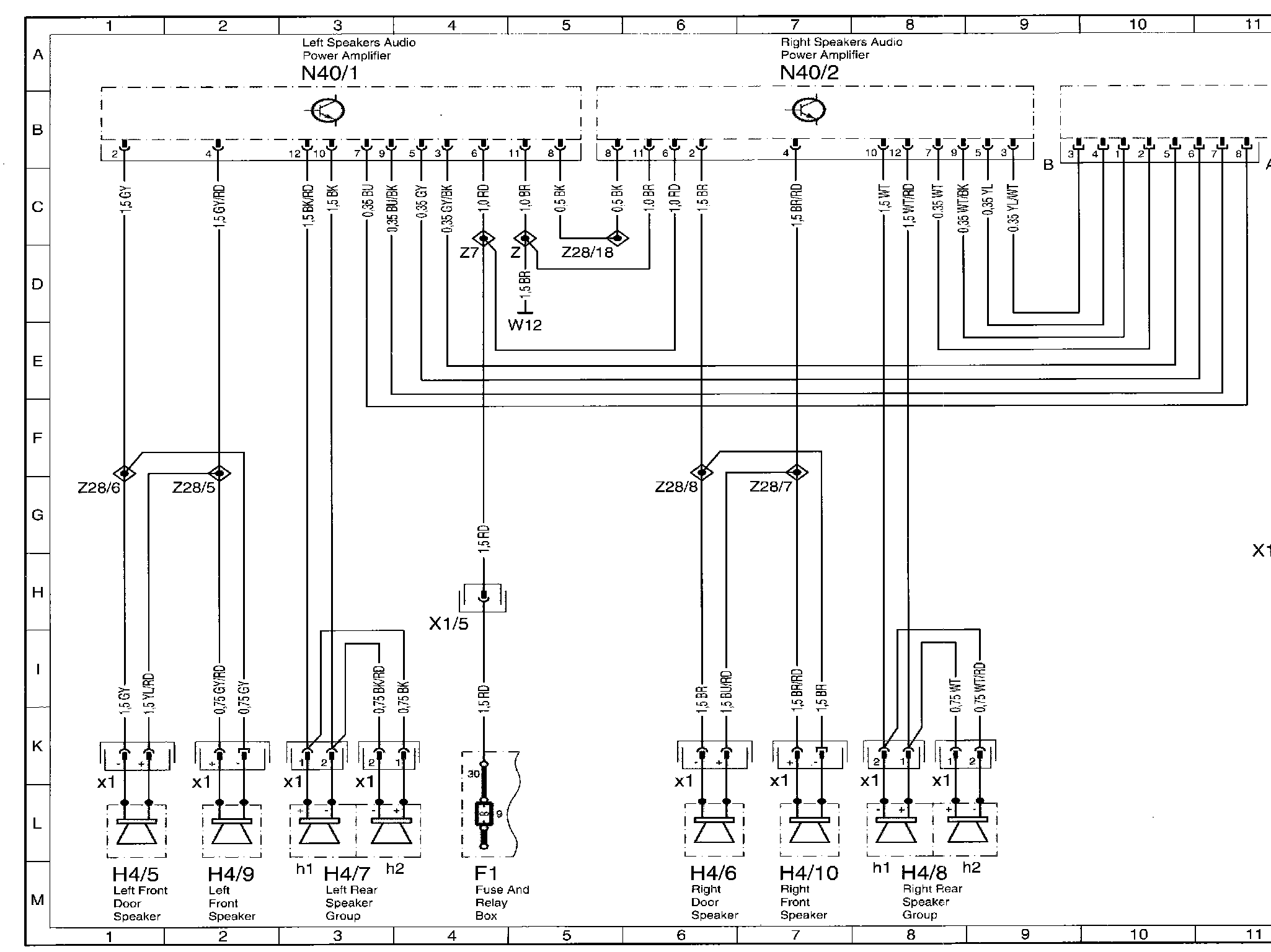

Wiring Diagram

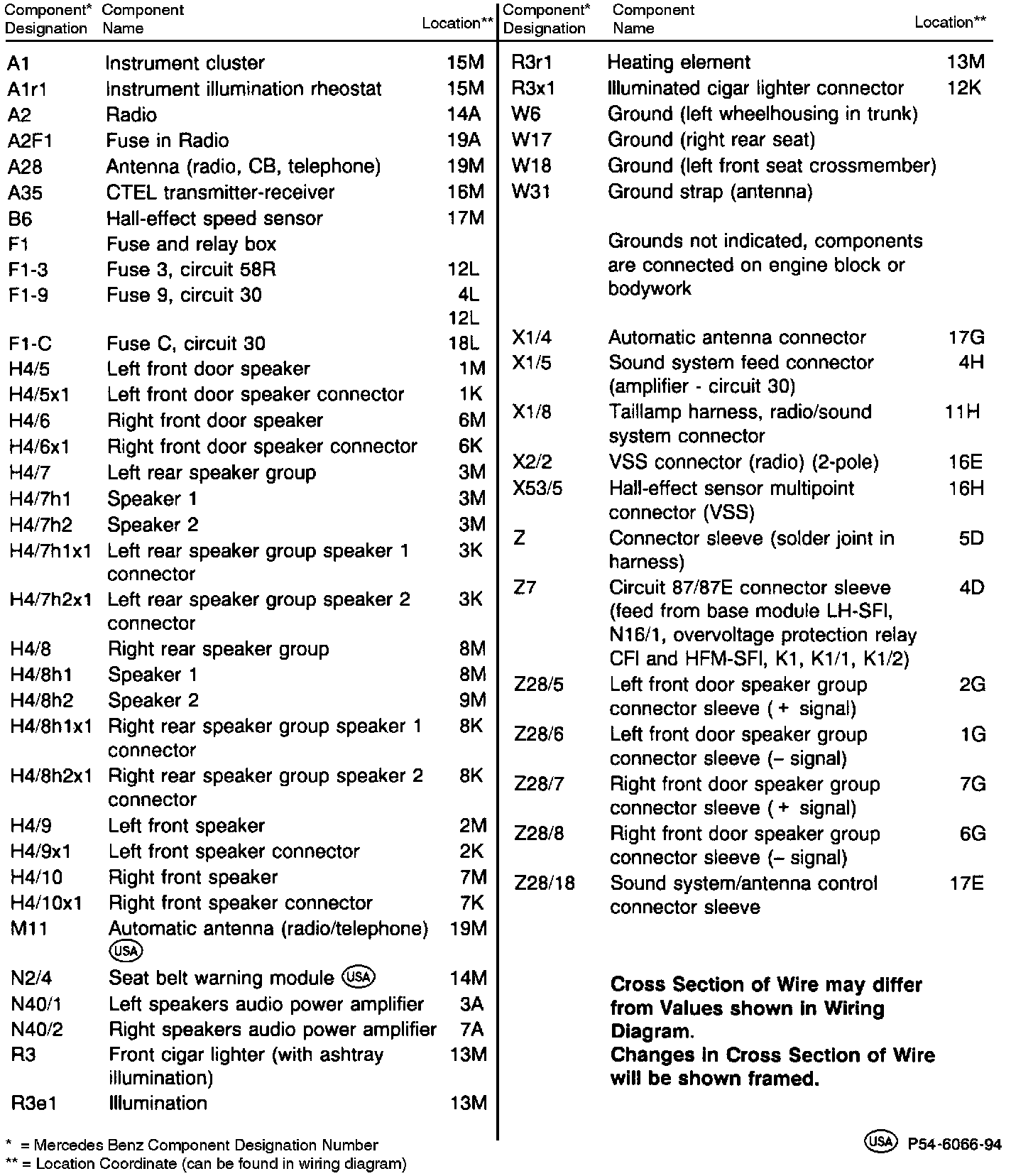

Radio MB (With Sound System) - Component Index:
Component Index
