E 300 (124.131) L6-3.0L DSL (606.910)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
System Diagram
System Diagram
�b &Starter, Generator, Battery:
Wiring Diagram

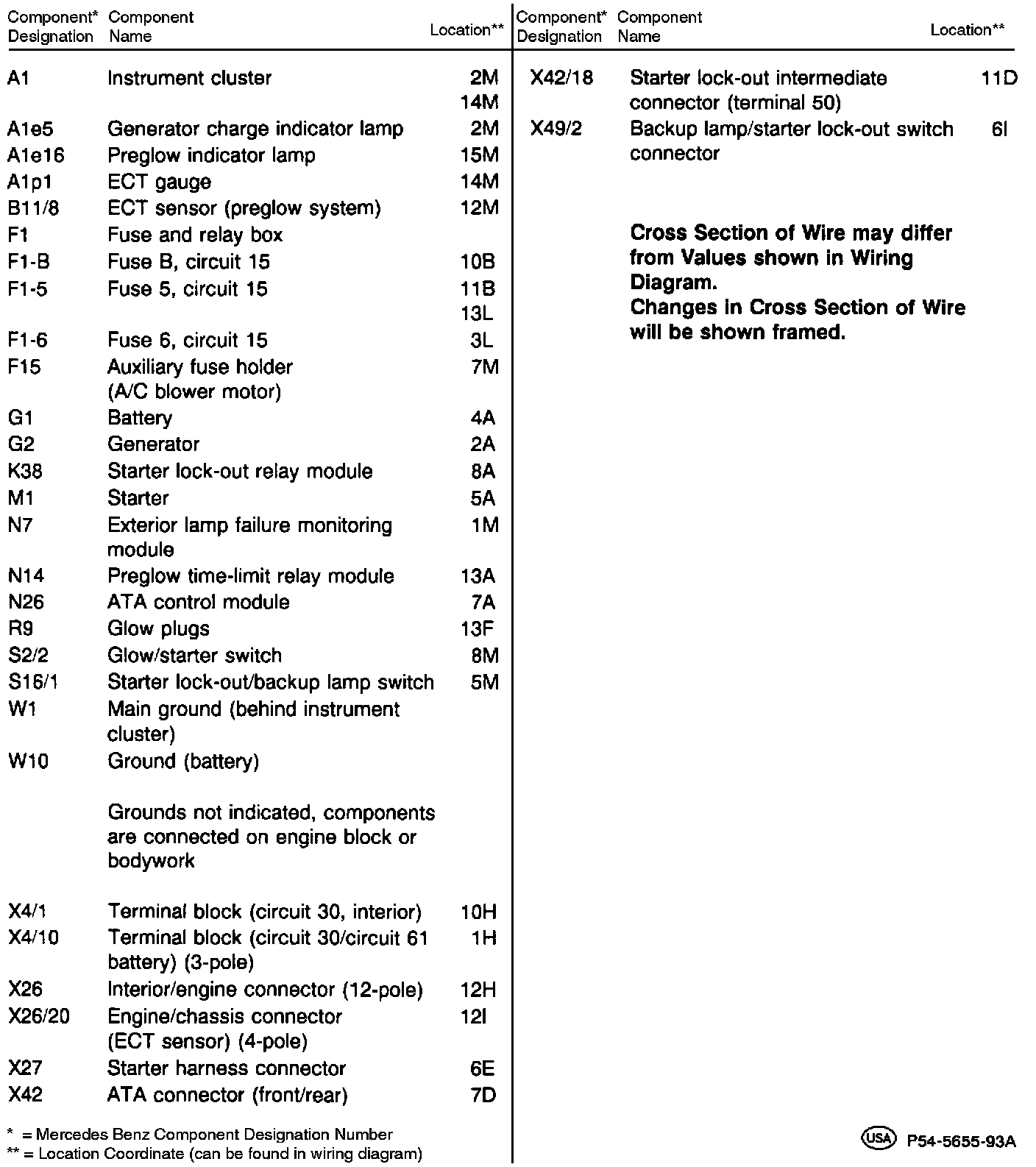

Starter, Generator, Battery - Component Index:
Component Index
