1994
>>
SL 320 (129.063) L6-3.2L (104.991)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>
Power Windows (4-Fold) PE72.29-U-2000YB (As of 01/94)
Power Windows (4-Fold) PE72.29-U-2000YB (As of 01/94)

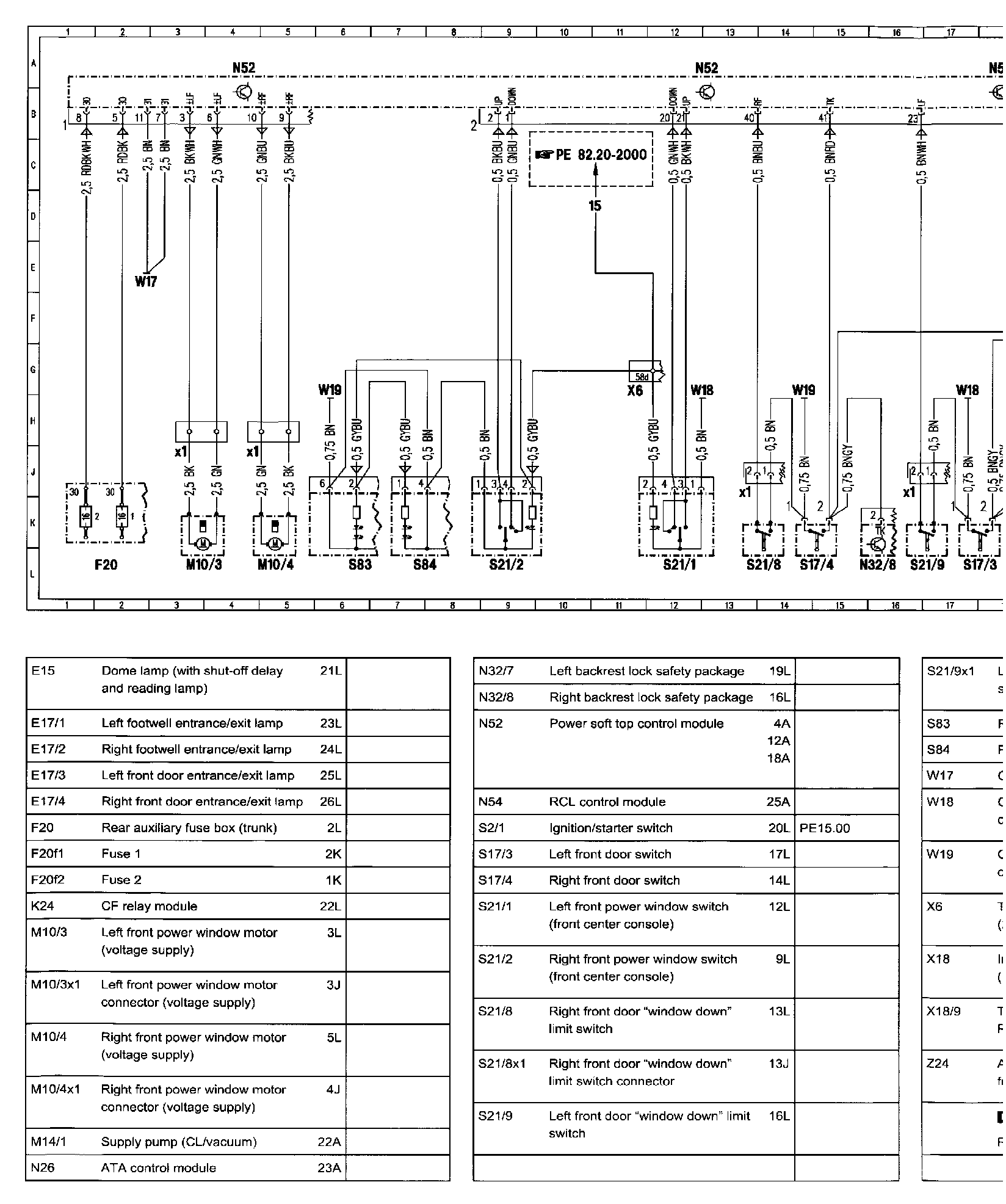

Wiring Diagram
�p3QPE72.29-U-2000YB:

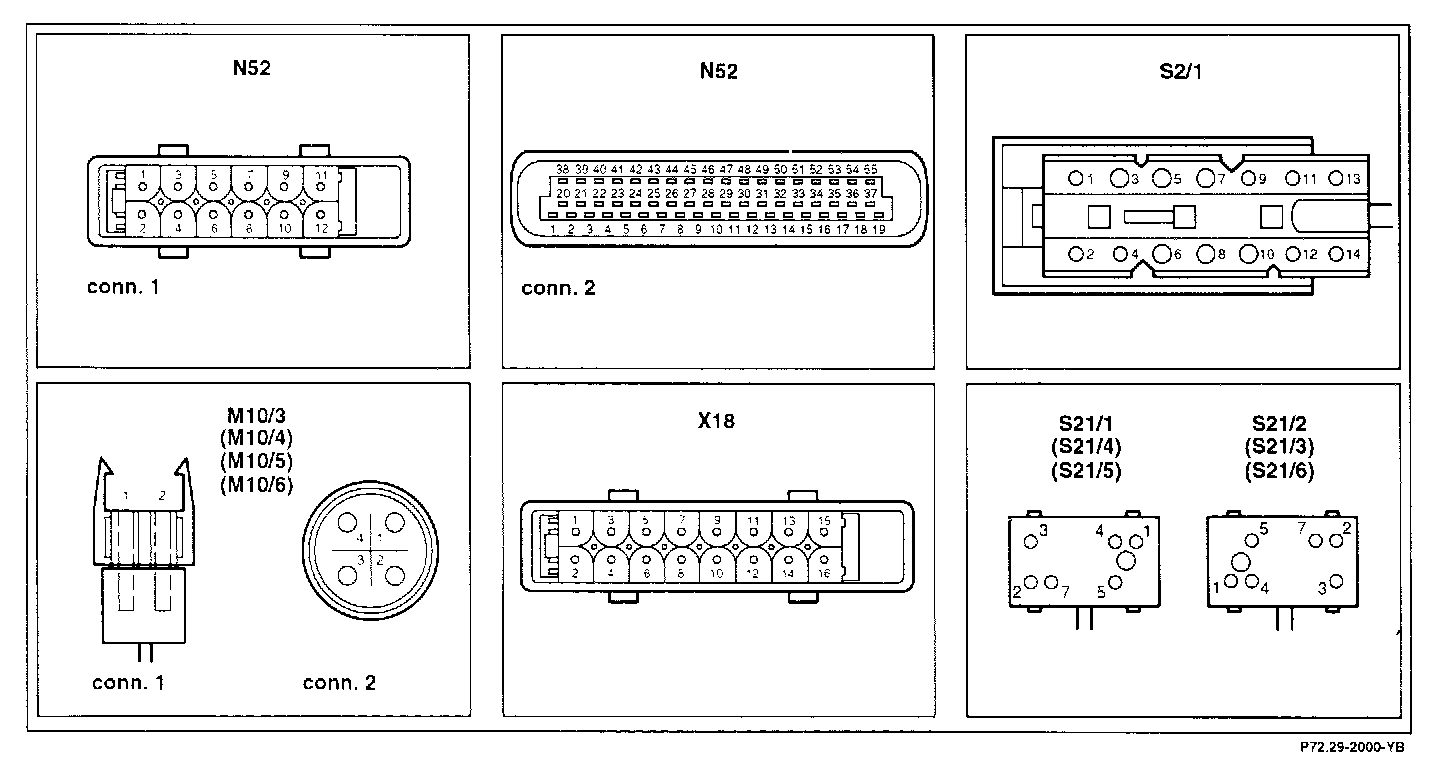

Connector Assignment:

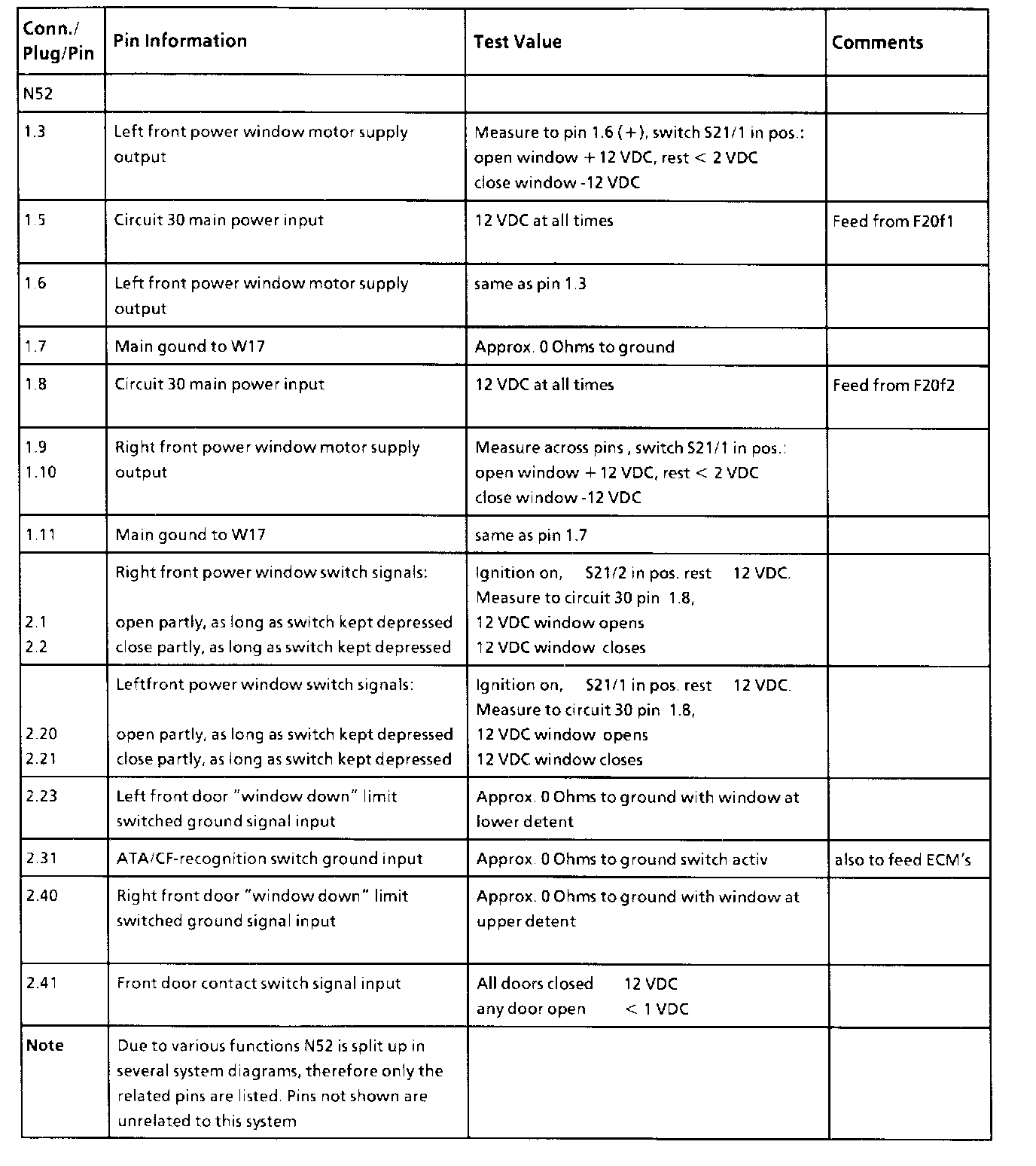

Pin Information:
All values measure to ground unless otherwise noted
