Power Windows (4-Fold) PE72.29-U-2000YA (Up to 12/93)

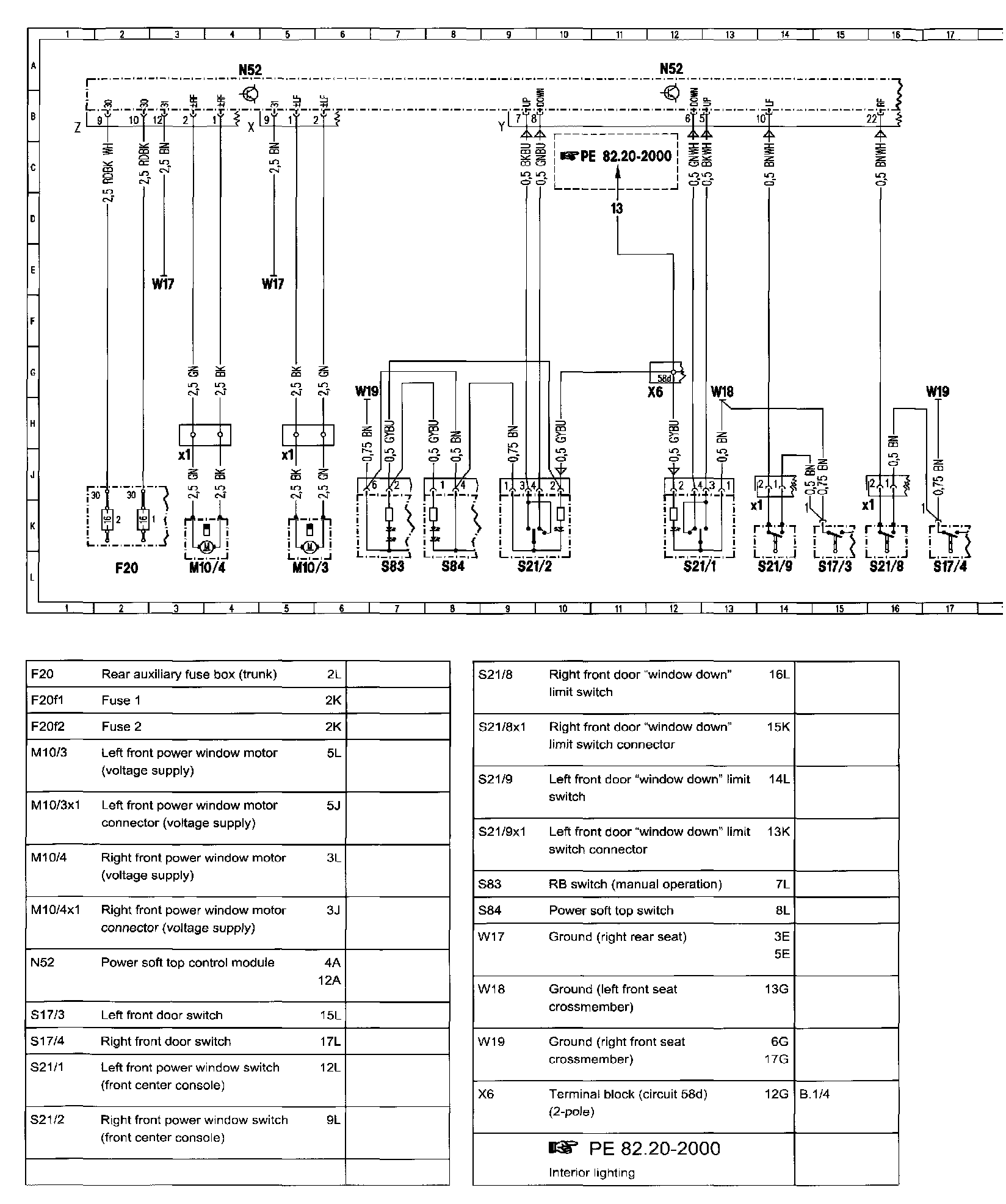

Wiring Diagram

��2QPE72.29-U-2000YA:

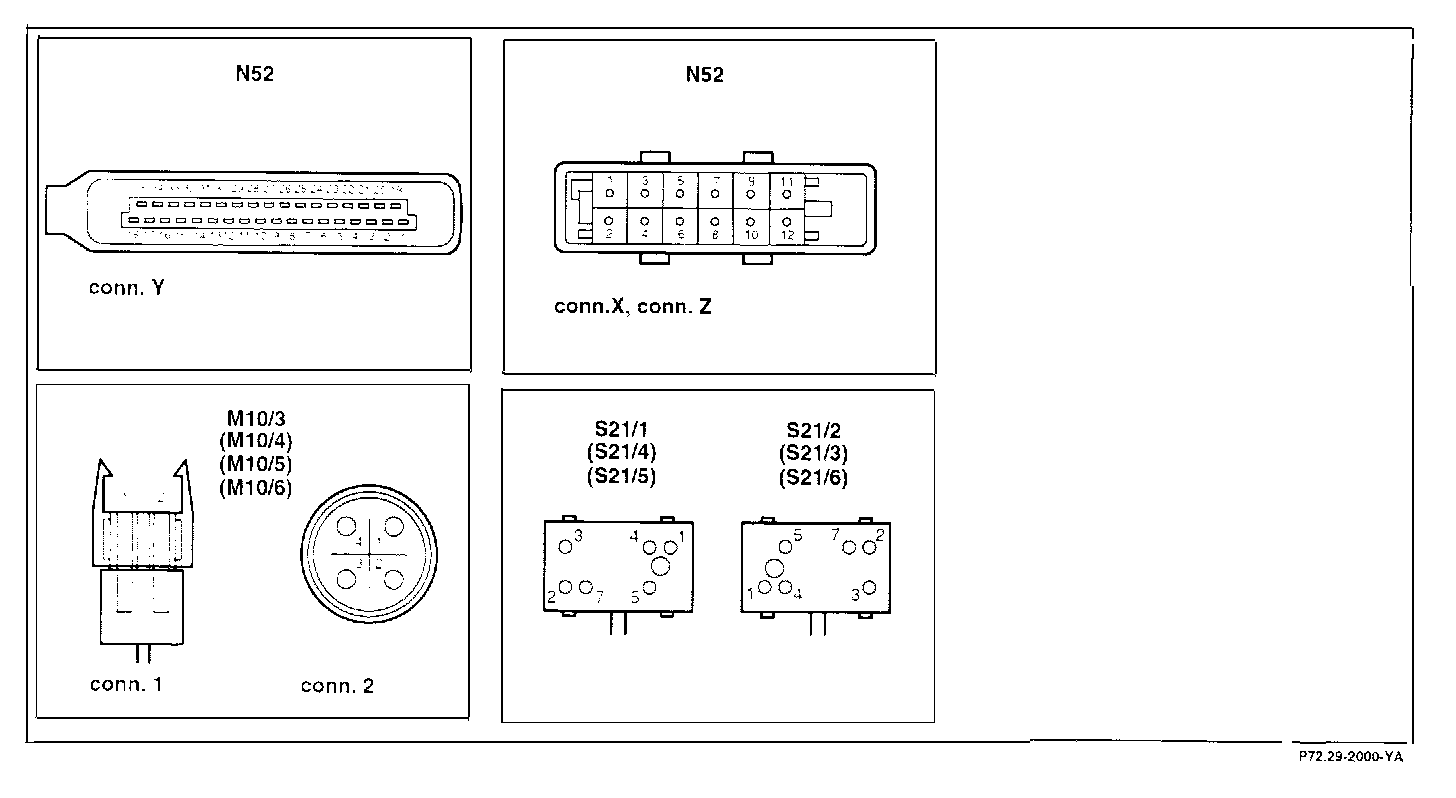

Connector Assignment:

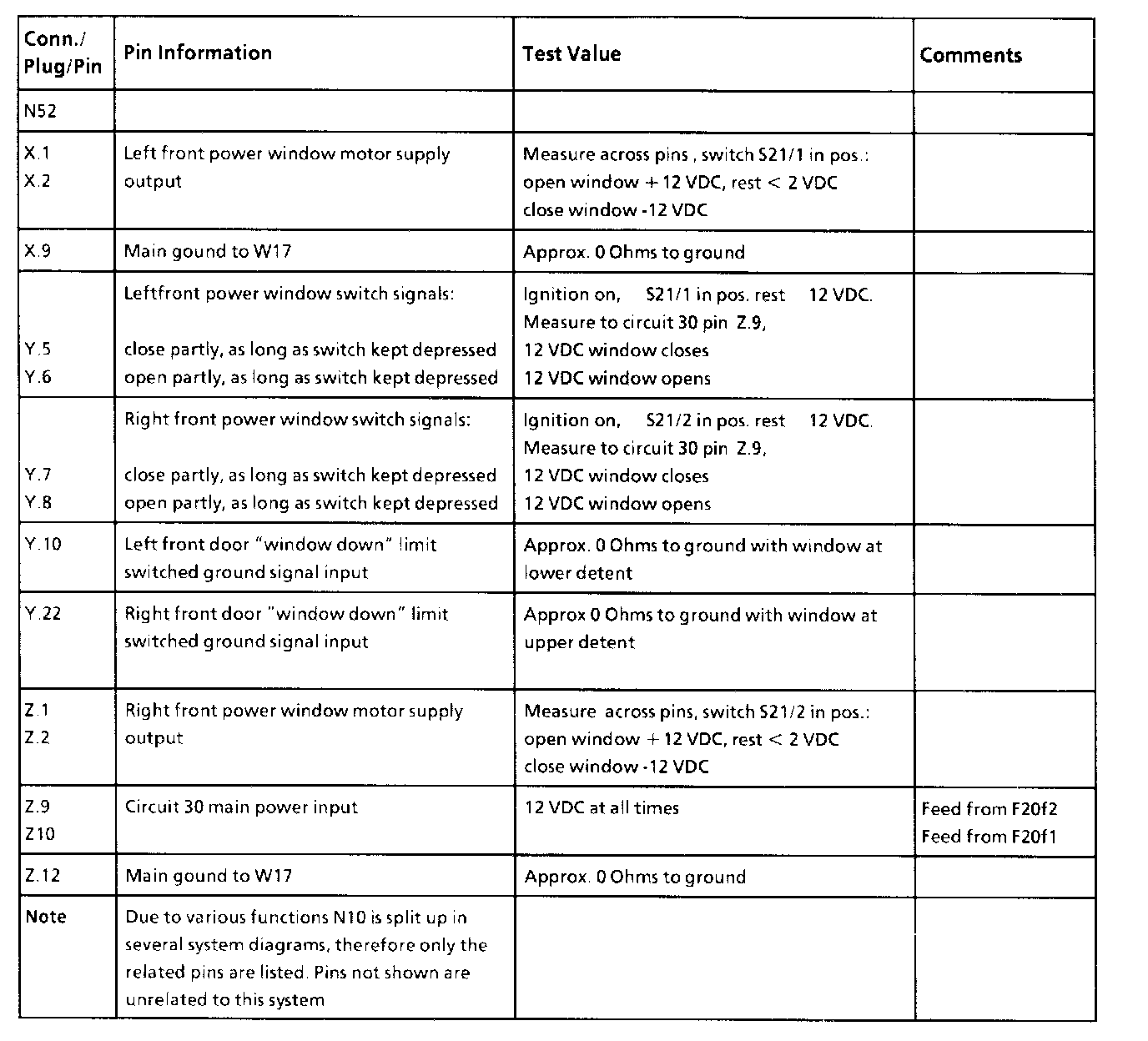

Pin Information:






All values measure to ground unless otherwise noted.
