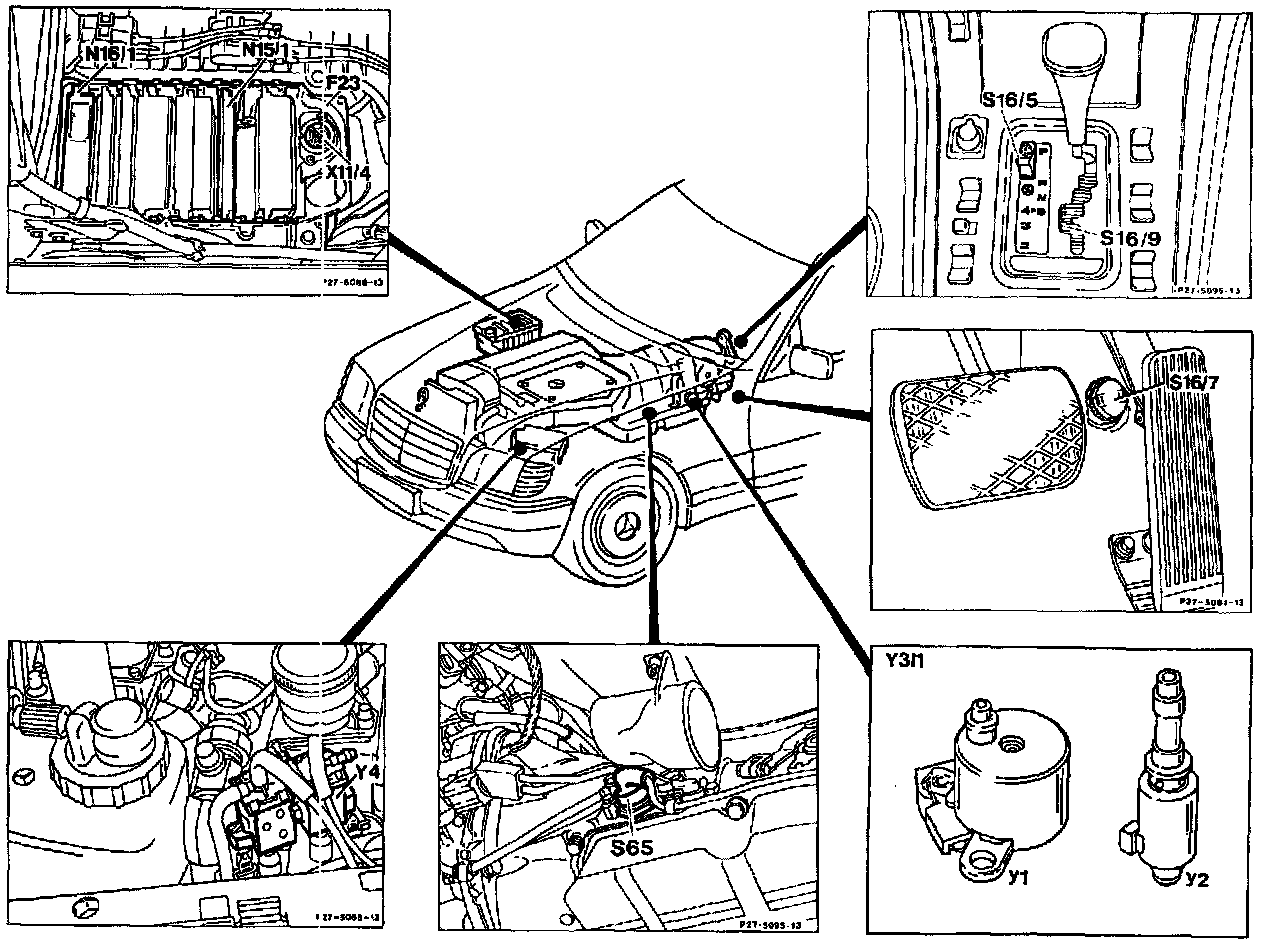

Component Locations

MODEL 140 SHOWN:

F23 Module box
N15/1 Transmission control module (TCM)
N16/1 Base module (BM)
S16/5 Transmission mode switch
S16/7 Kickdown switch (transmission mode)
S16/9 Transmission range "D" contact switch
X11/4 Data link connector (DTC readout)
Y3/1 Valve block (5-speed AT)
Y3/1y1 Kickdown solenoid valve
Y3/1y2 Control valve
