Component Locations

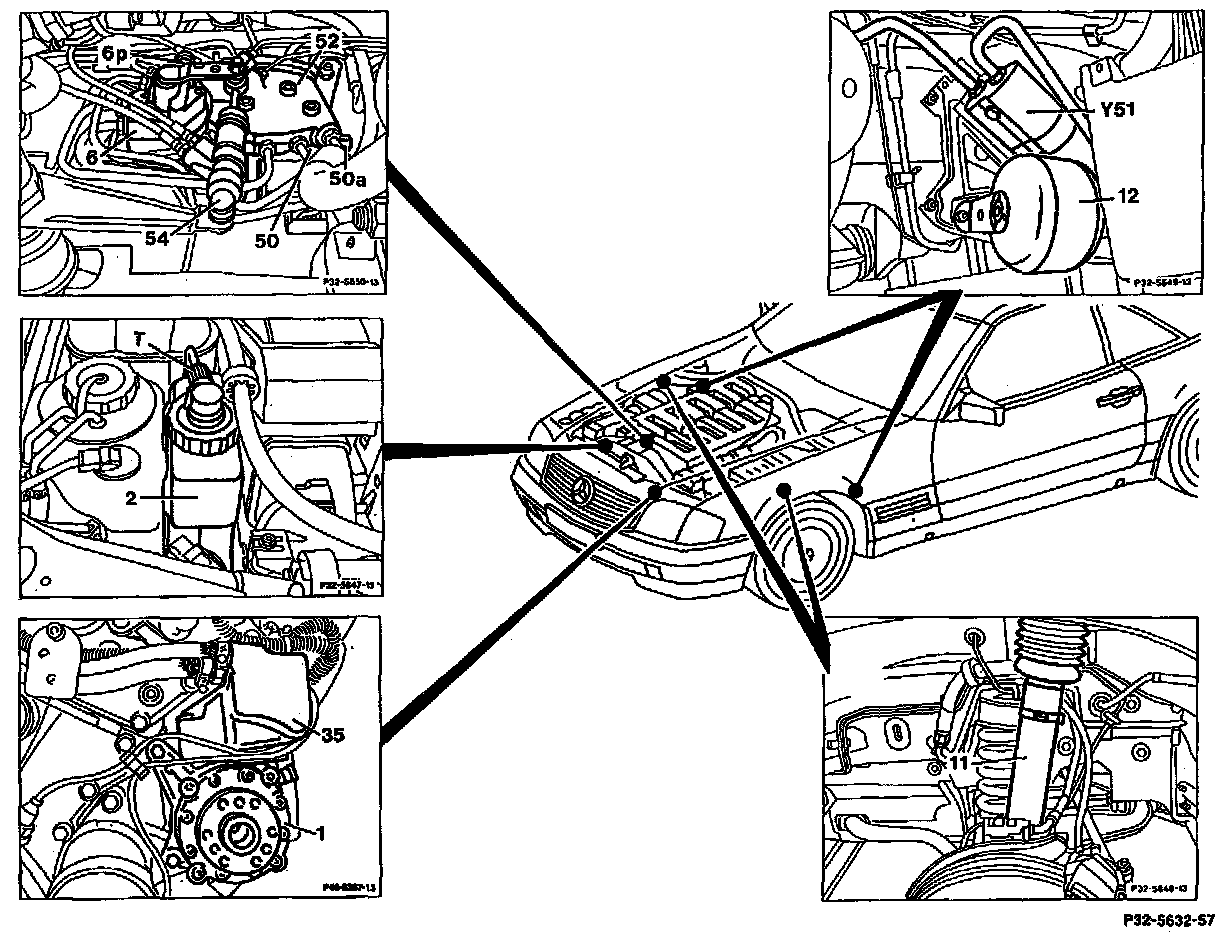

Hydraulic Test Program - Component LocationsHydraulic components on Front Axle and in Engine compartment - Model 129
1 Hydraulic oil pump
2 Hydraulic oil reservoir
6 Front axle leveling valve
11 Front suspension strut
12 Front pressure reservoir
52 Distributor
54 Front axle connecting rod

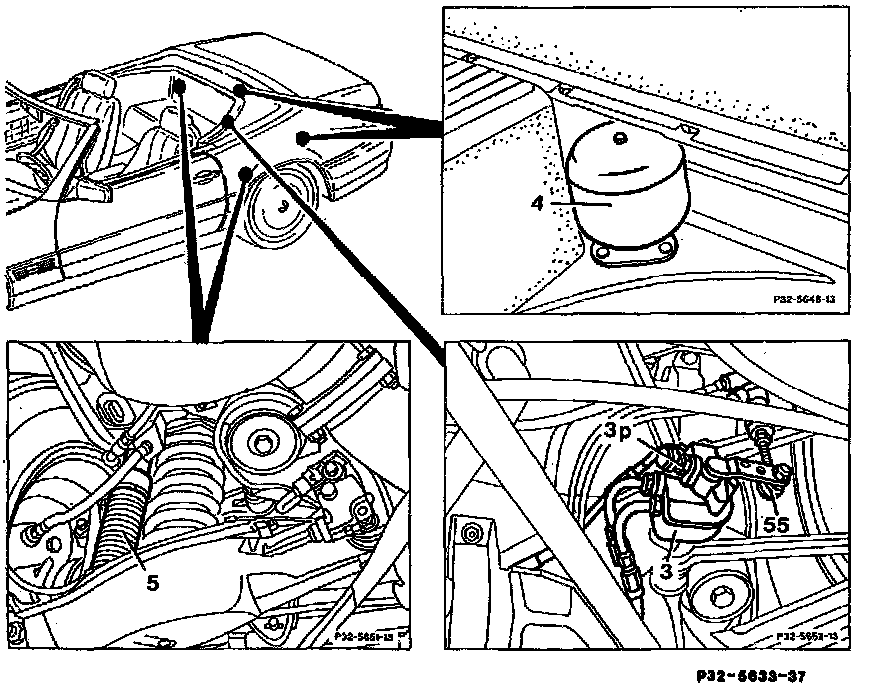

Hydraulic component on Rear Axle and in Rear of Vehicle - Model 129
3 Rear axle leveling valve
4 Rear pressure reservoir
5 Rear suspension strut
55 Rear axle connecting rod

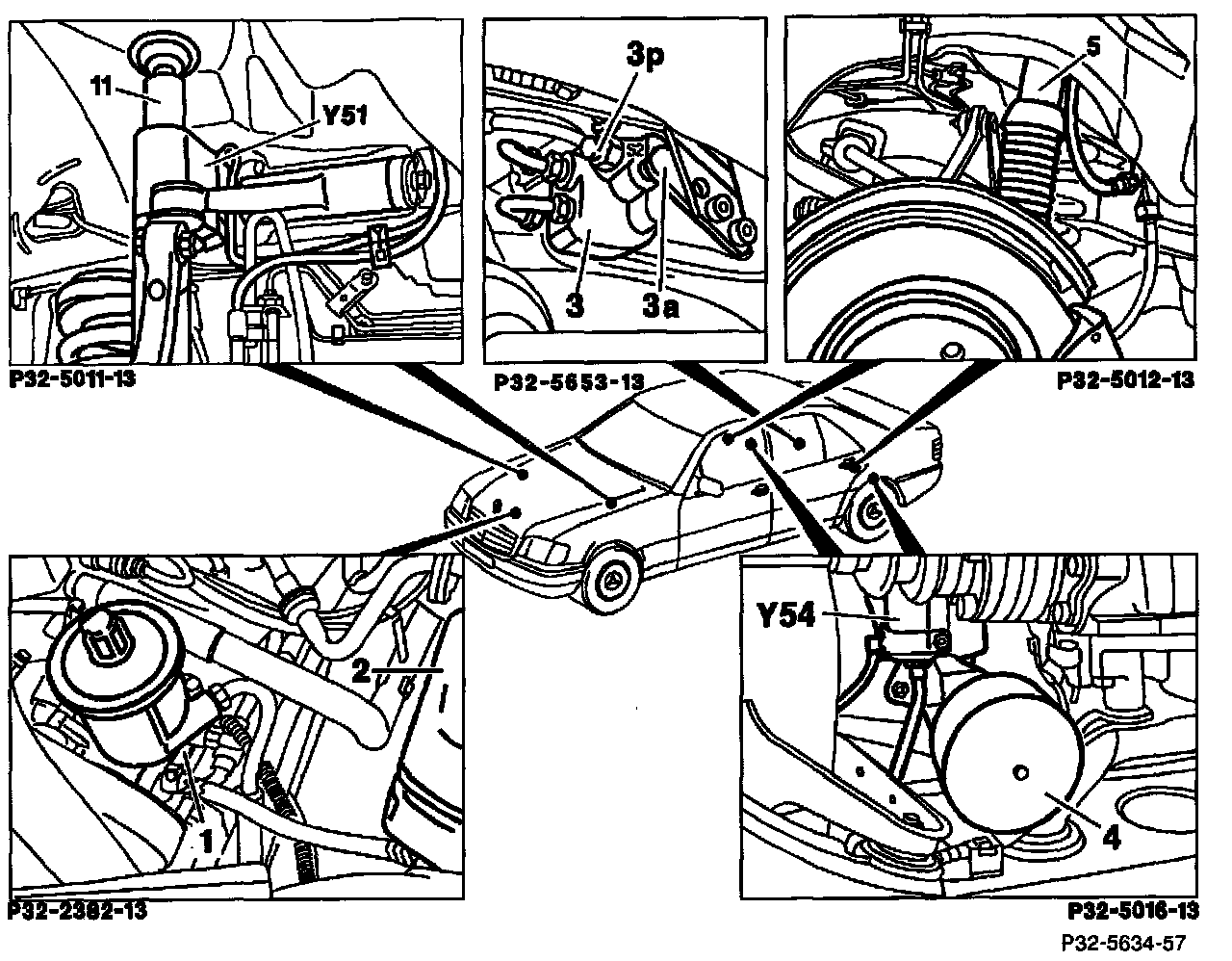

Hydraulic Components - Model 140
1 Hydraulic oil pump
2 Hydraulic oil reservoir
3 Rear axle leveling valve
4 Rear pressure reservoir
5 Rear suspension strut
11 Front suspension strut
