Component Locations

Electrical Test Program - Component Locations

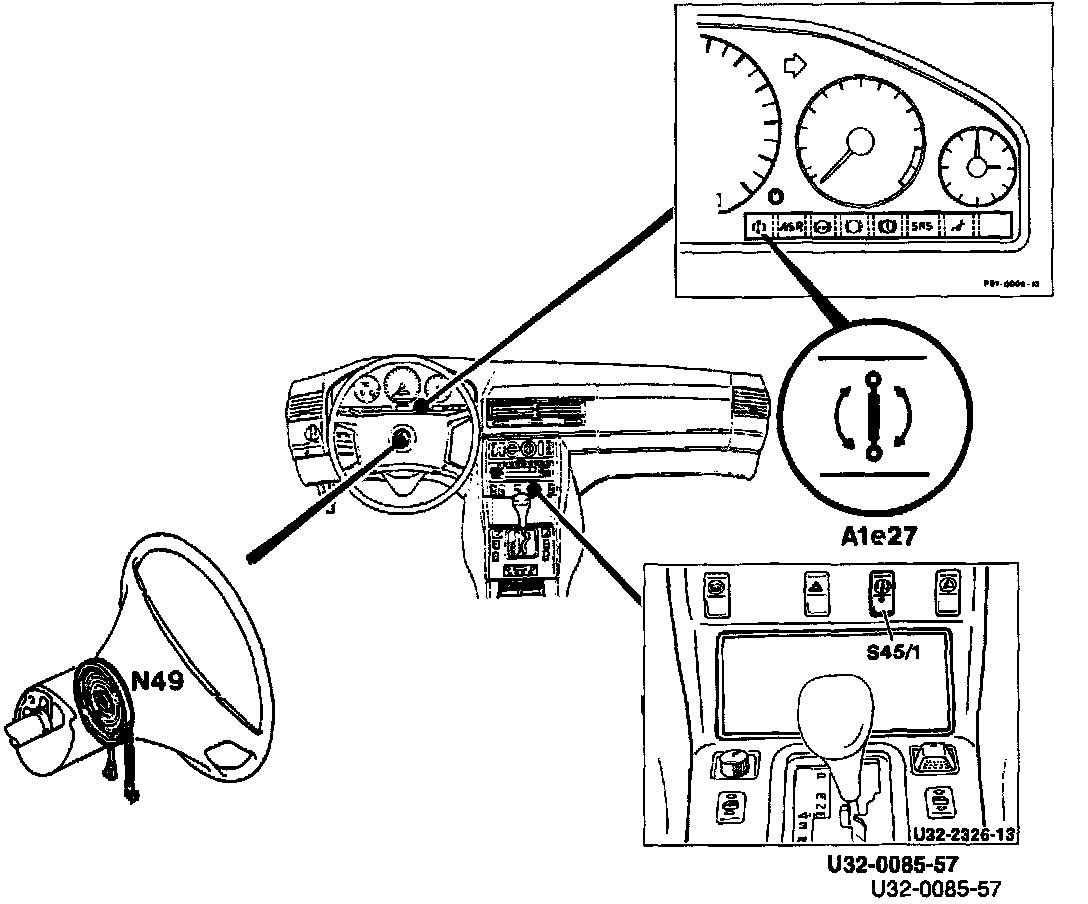

Components in Passenger Compartment



A1e27 ADS MIL
N49 Steering angle sensor
S45/1 Comfort/sport switch

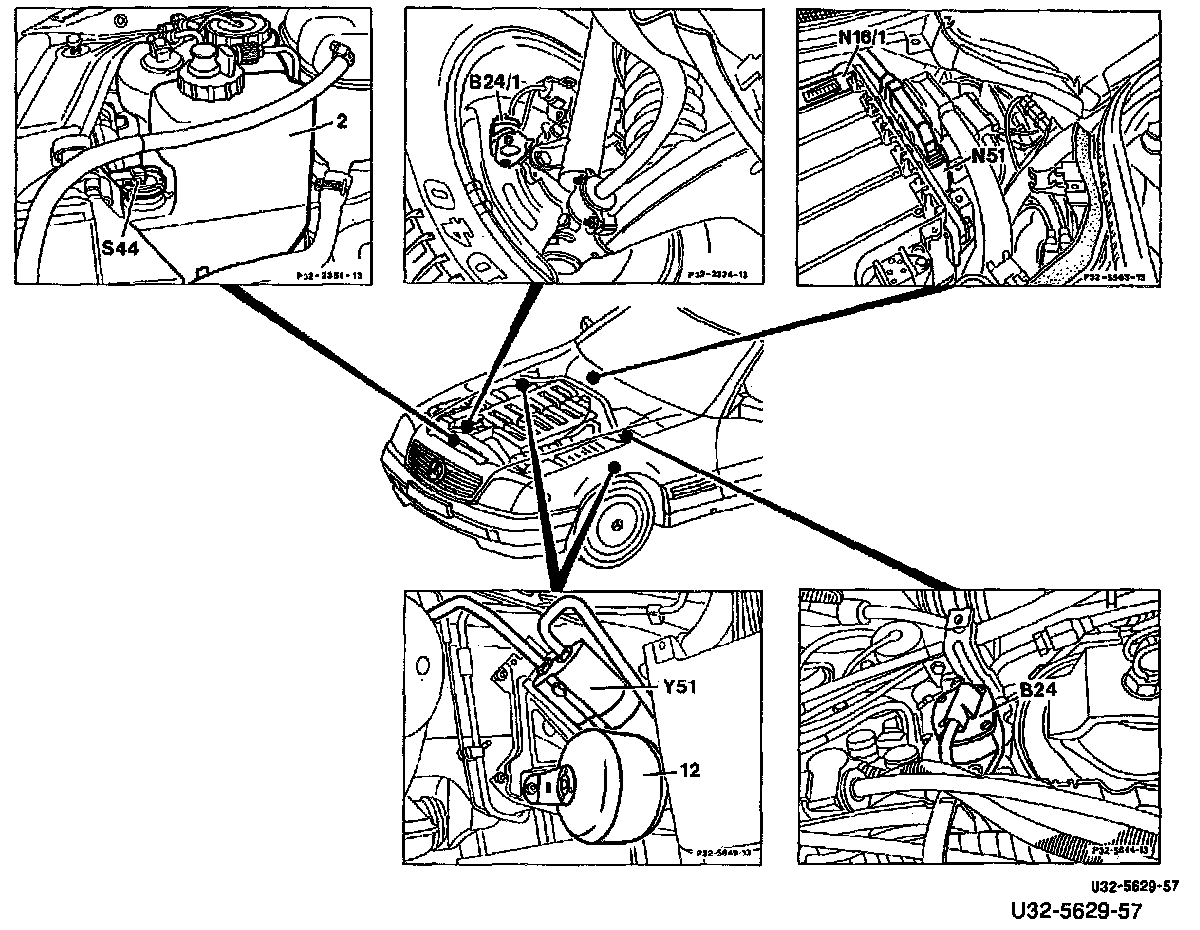

Components on Front Axle and in Engine Compartment - Model 129



B24 Body acceleration sensor
B24/1 Wheel acceleration sensor
N51 ADS control module
S44 Oil level switch
Y51 Left front axle damper valve assembly
Y52 Right front axle damper valve assembly

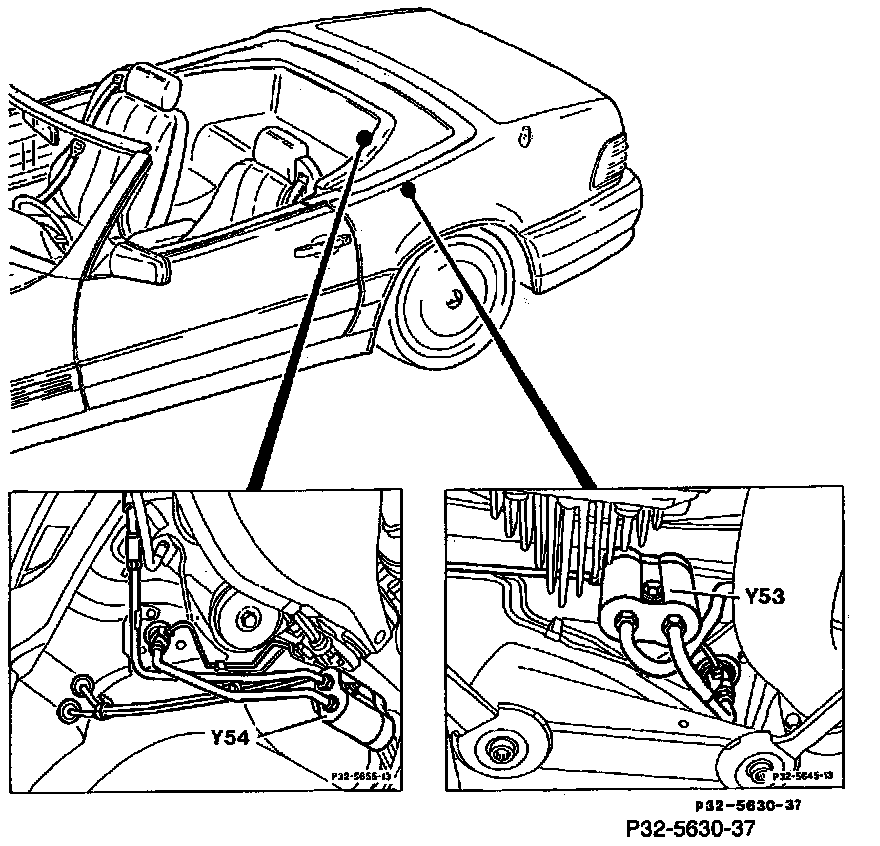

Components In Rear of Vehicle - Model 129



Y53 Left rear axle damper valve assembly
Y54 Right rear axle damper valve assembly

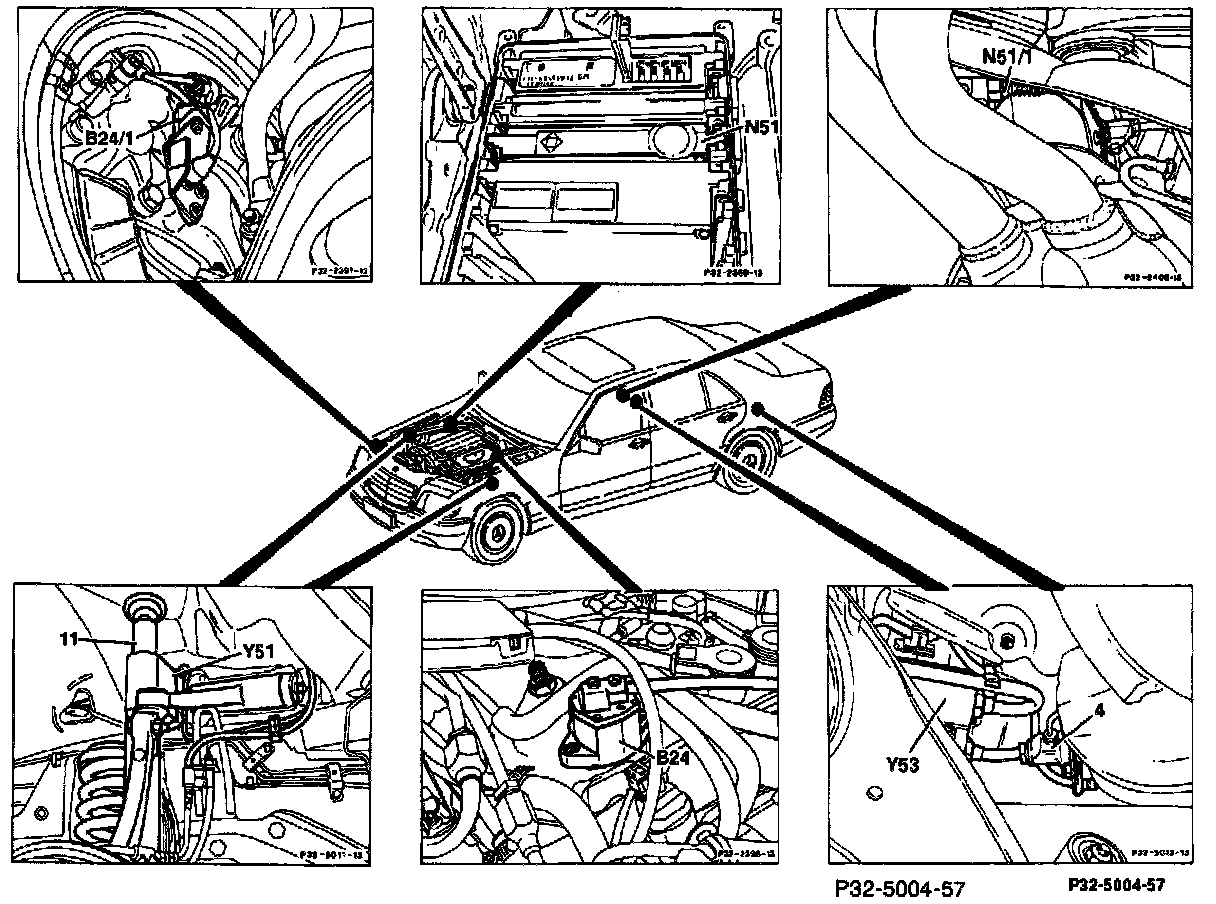

Components in Engine Compartment and On Chassis - Model 140



B24 Body acceleration sensor
B24/1 Wheel acceleration sensor
N51 ADS control module
N51/1 Vehicle load sensor
Y51 Left front axle damper valve assembly
Y52 Right front axle damper valve assembly (not shown)
Y53 Left rear axle damper valve assembly
Y54 Right rear axle damper valve assembly (not shown)
