Home >> Mercedes Benz >> 1994 >> SL 320 (129.063) L6-3.2L (104.991) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> BA35.20-P-1000-01A Spring Control Arm

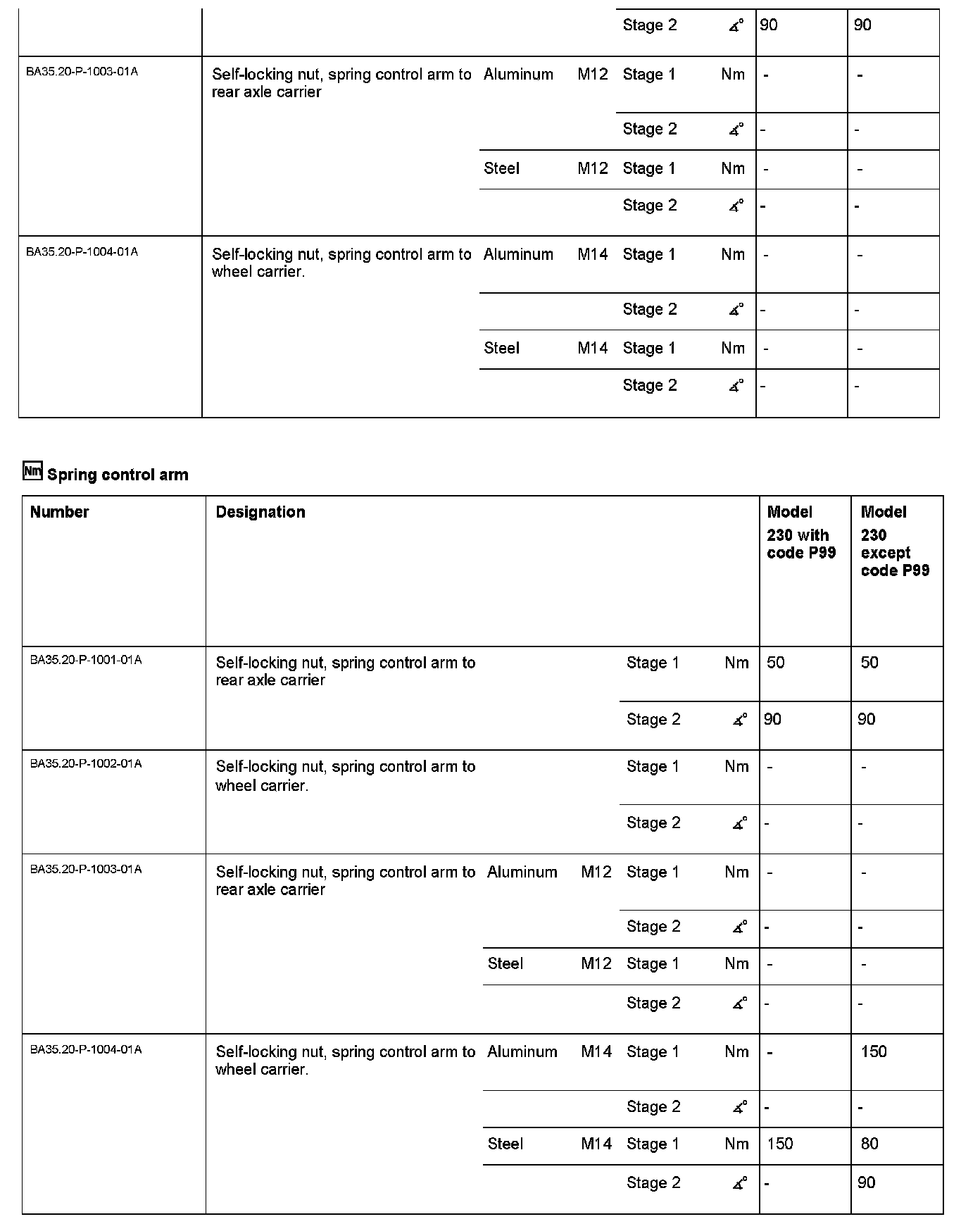

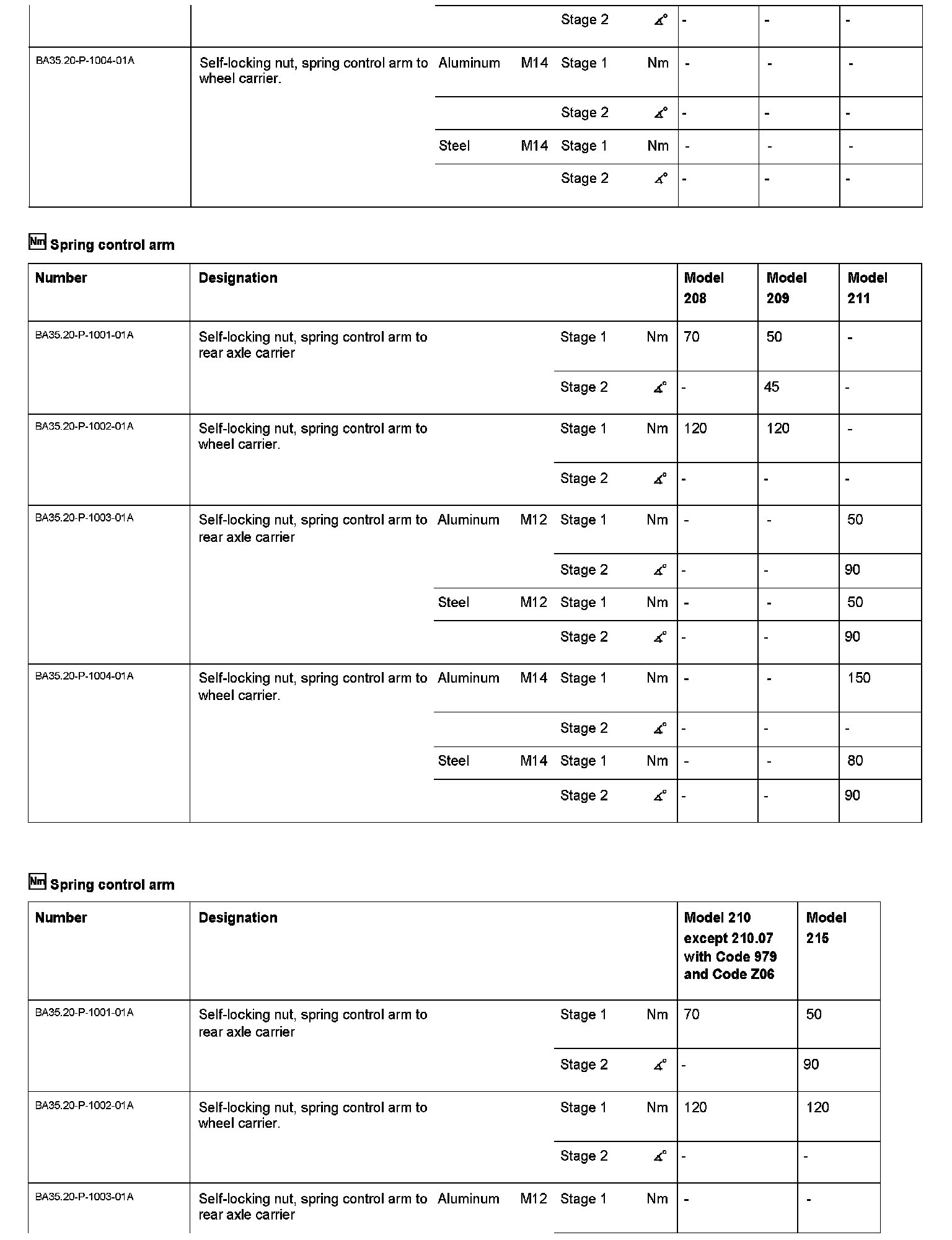

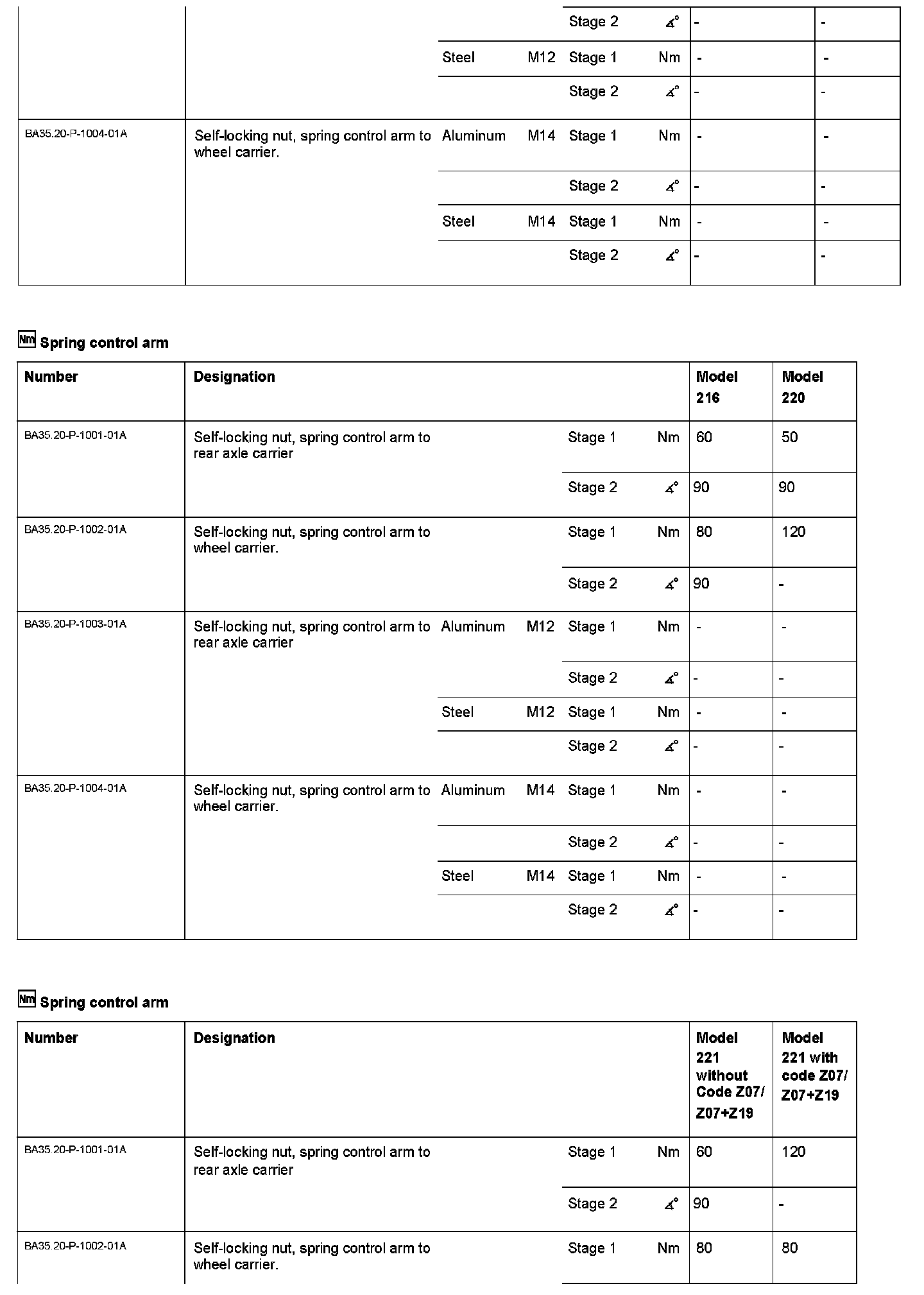

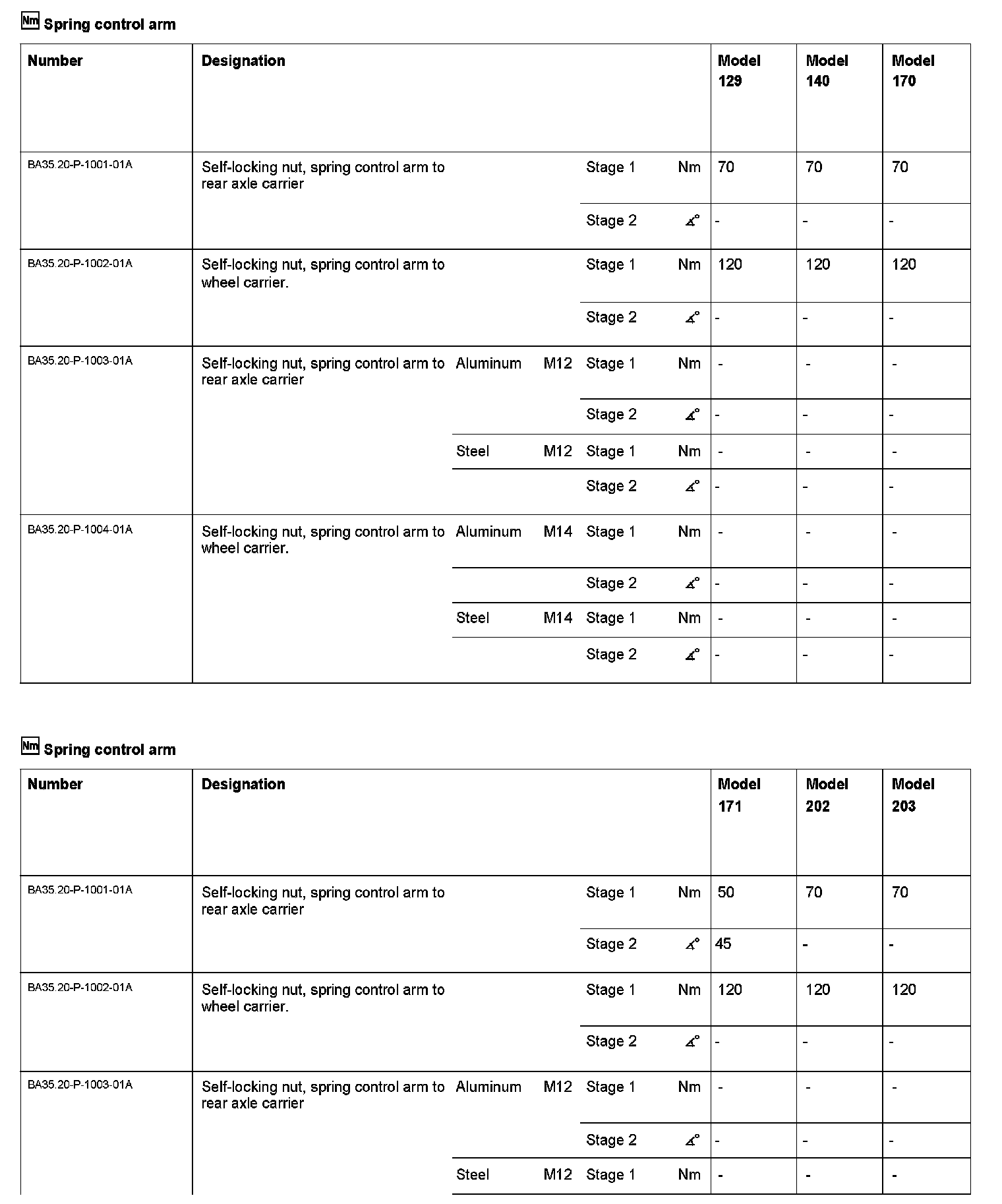

BA35.20-P-1000-01A Spring Control Arm

BA35.20-P-1000-01A Spring Control Arm
Model 129, 140, 170, 171, 202, 203, 208, 209, 210, 211, 215, 216, 220, 221, 230
