Home >> Mercedes Benz >> 1994 >> SL 320 (129.063) L6-3.2L (104.991) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Variable Valve Timing >> System Specifications

System Specifications

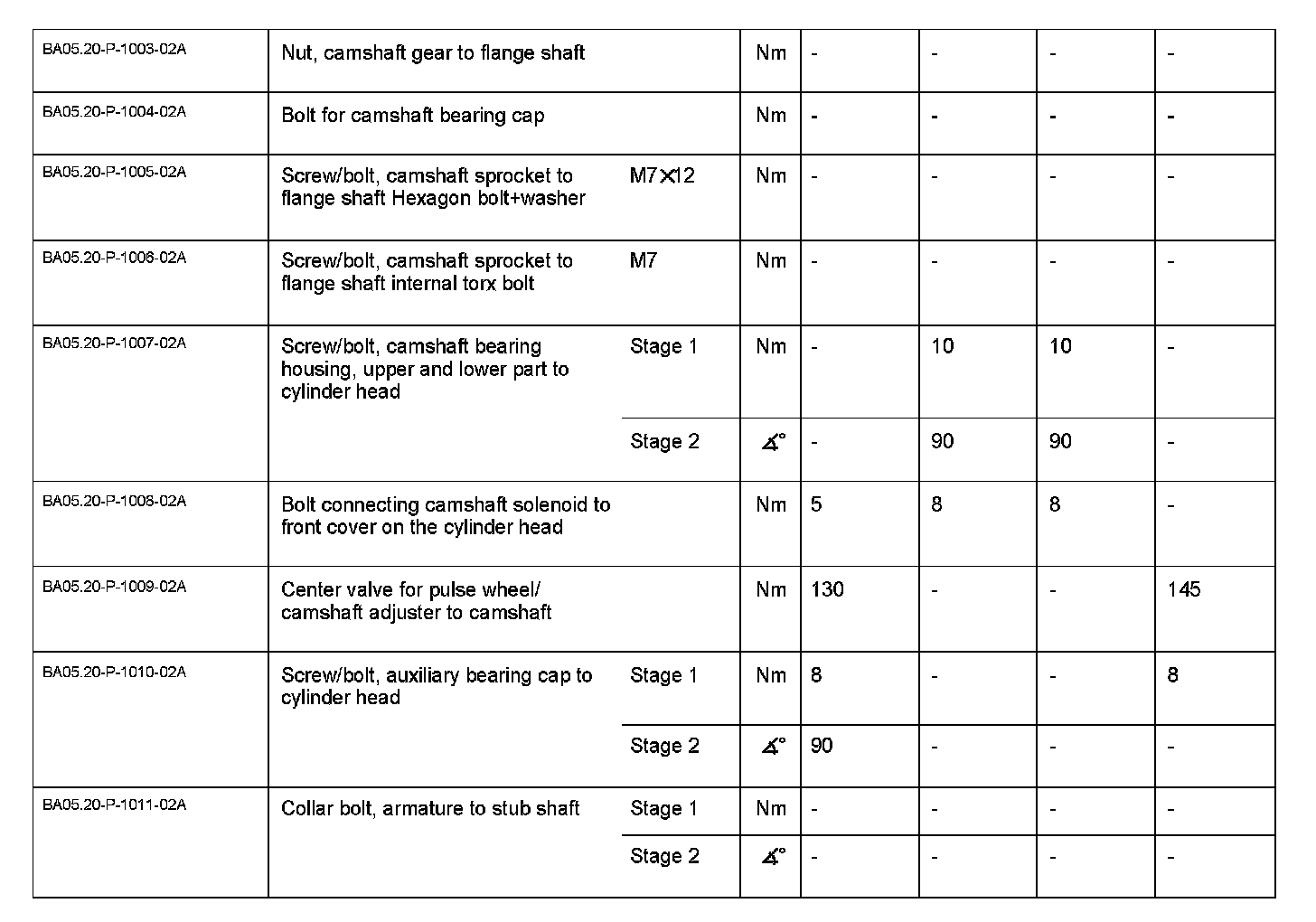

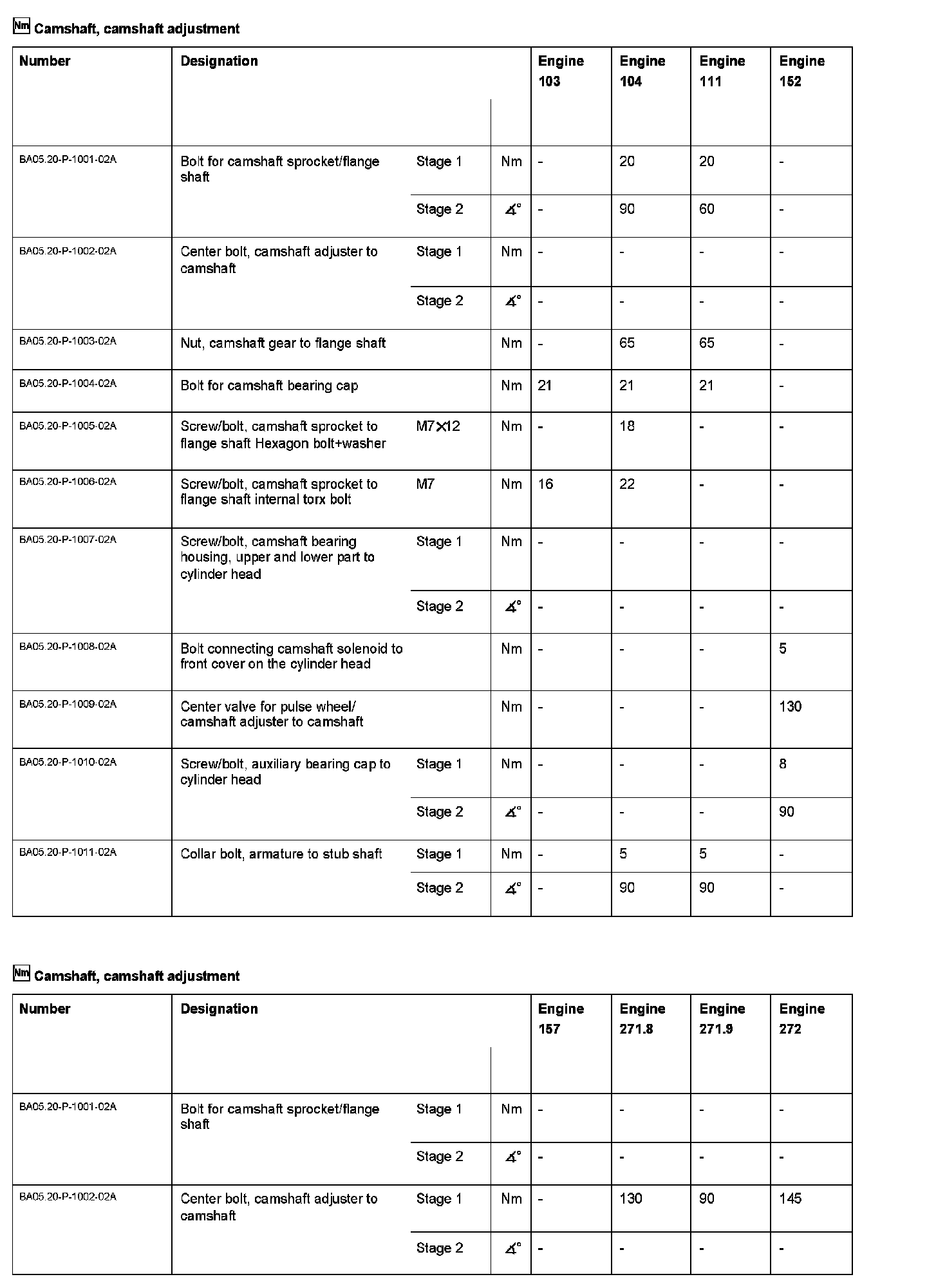

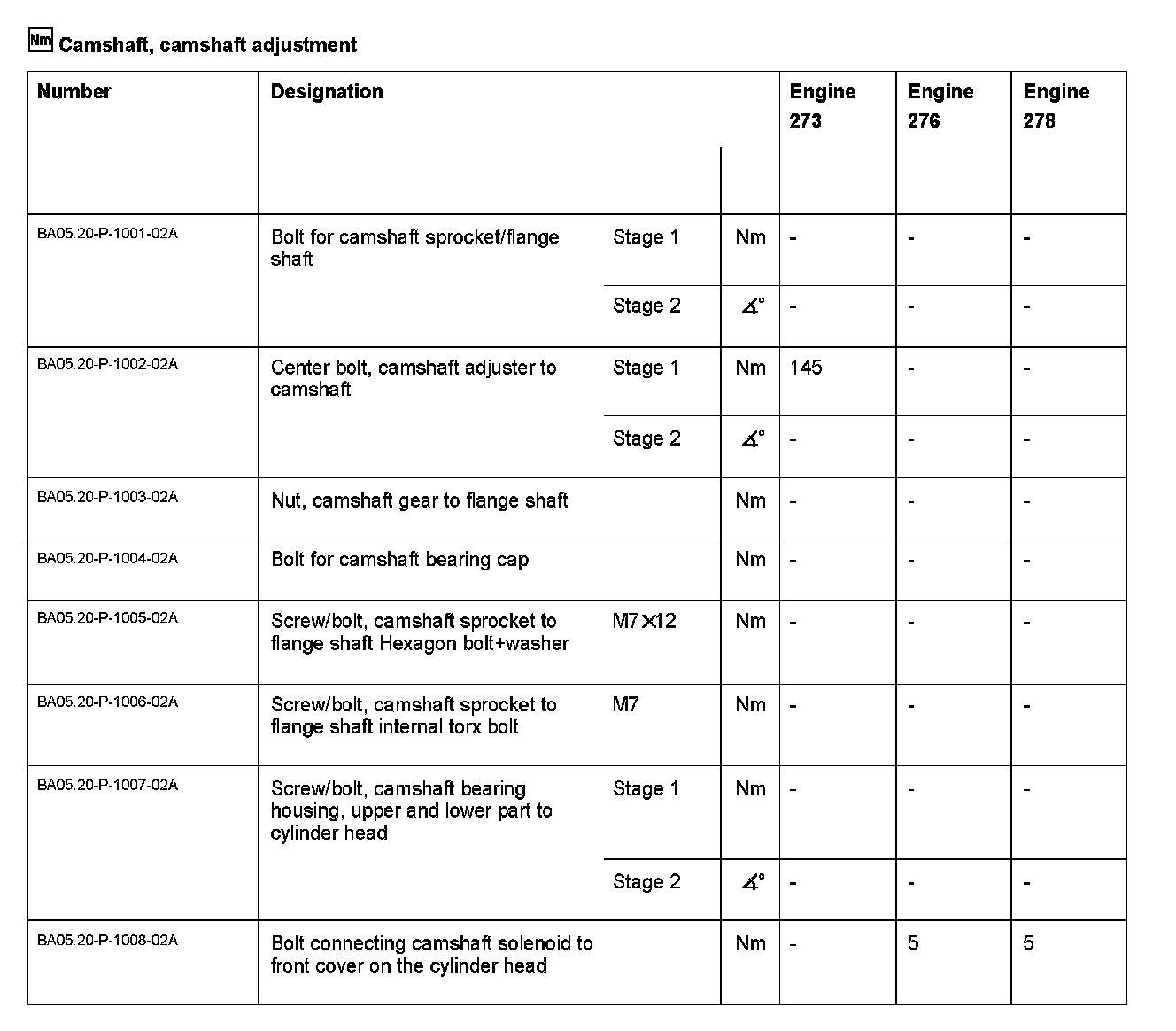

BA05.20-P-1000-02A Camshaft, Camshaft Adjustment
ENGINE 103, 104, 111, 152, 157, 271, 272, 273, 276, 278
