Power Door Lock Switch: Service and Repair

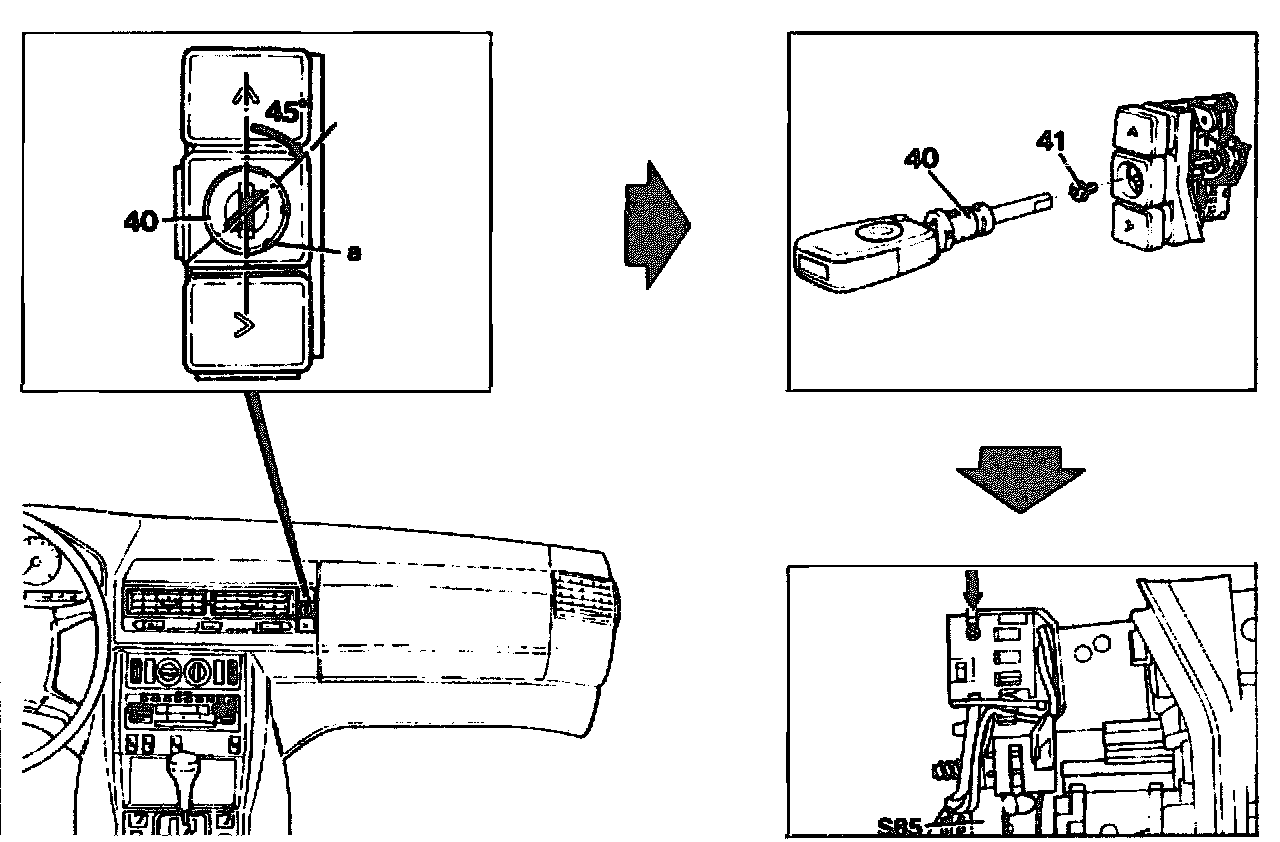

Lock cylinder (40)
Turn 45° to the right with the key.

Needle (1 mm Phi)
Insert in opening (a).

Key with lock cylinder (40)
Pull out.

Screw (41)
Unscrew from the opening in the lock.

Lock
Pull out complete.

Element-glove box/spectacles compartment
Disconnect.

Electrical connection
Remove.

Electrical switch
Check, Testing and Inspection

Switch (S85) on the lock
Clip Out (arrows).

Installation
Carry out in reverse order.

Function
Check.
