Electrical Diagrams



5-Speed Automatic Transmission

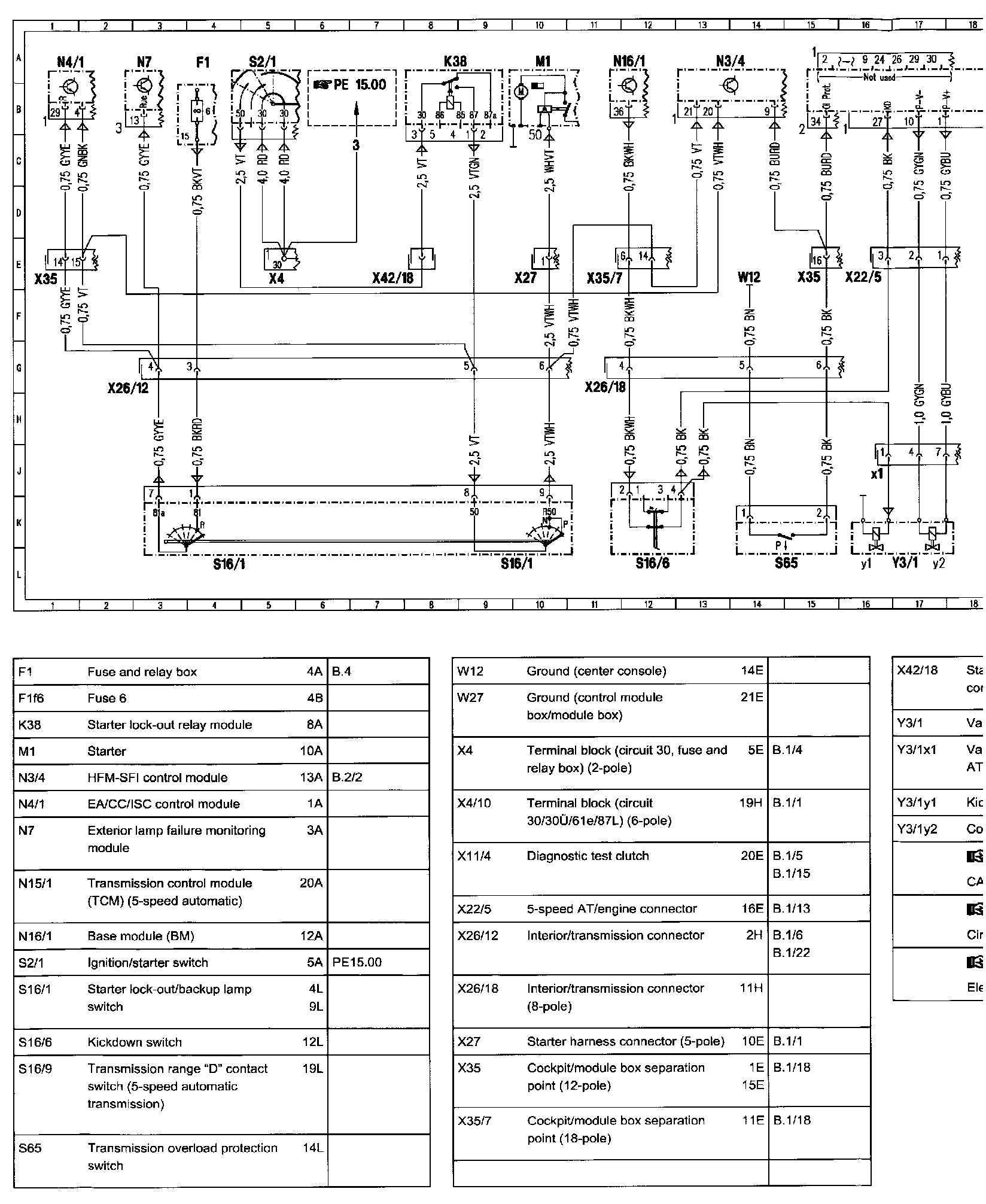

Wiring Diagram

��5-Speed Automatic Transmission - PE27.19-U-2000YD:

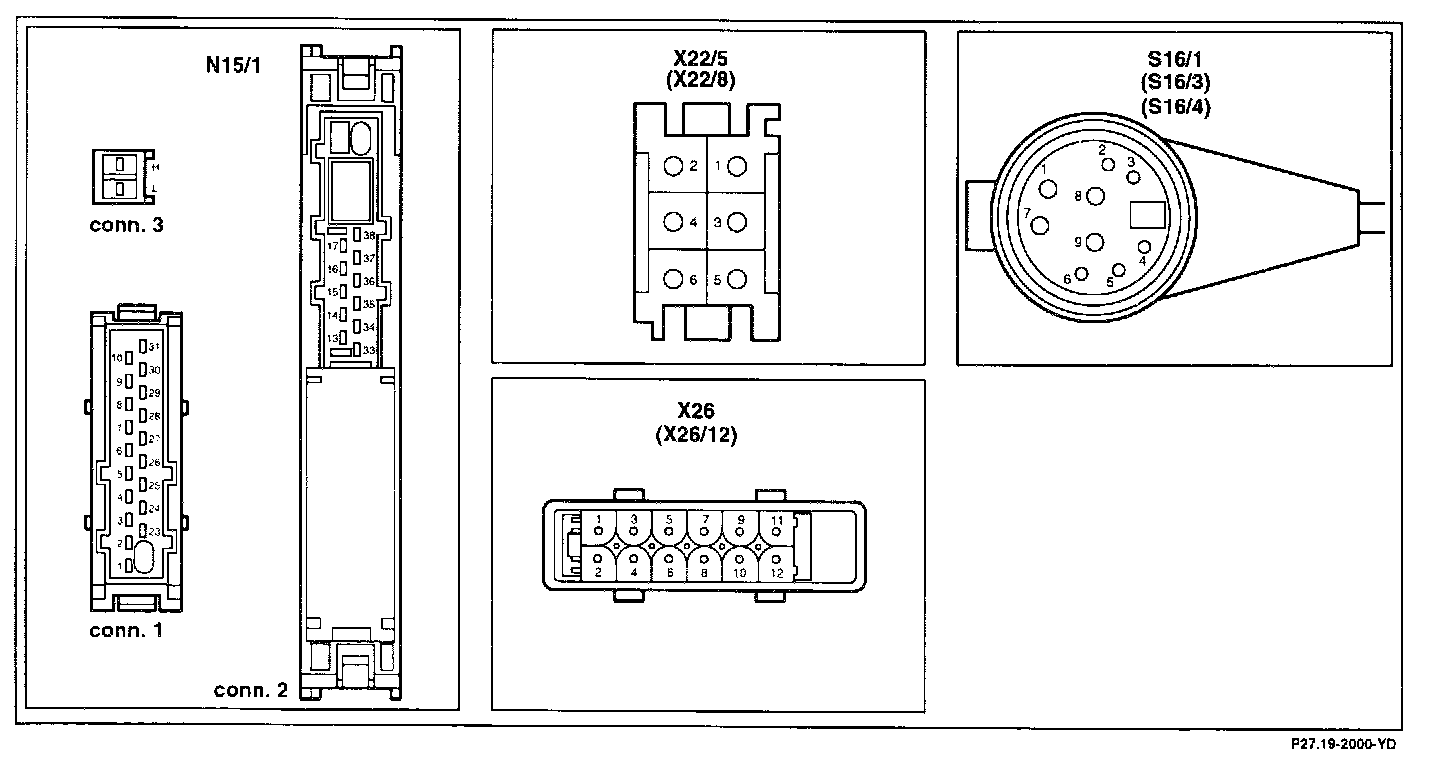

Connector Assignment:






Pin Information:






All values measured to ground unless otherwise noted.
