Notes for Remove/Install Fuel Tank

1 Remove, install fuel gauge sender.
2 Remove partition.

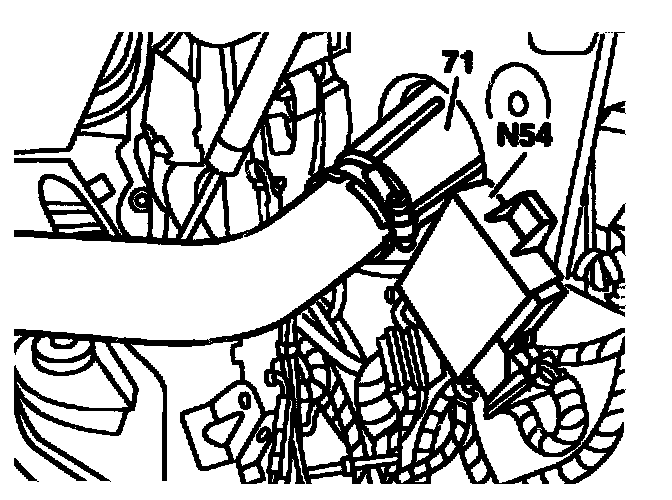

3 Loosen clip to push back cover (71).
4 Remove infrared remote control module (N54).

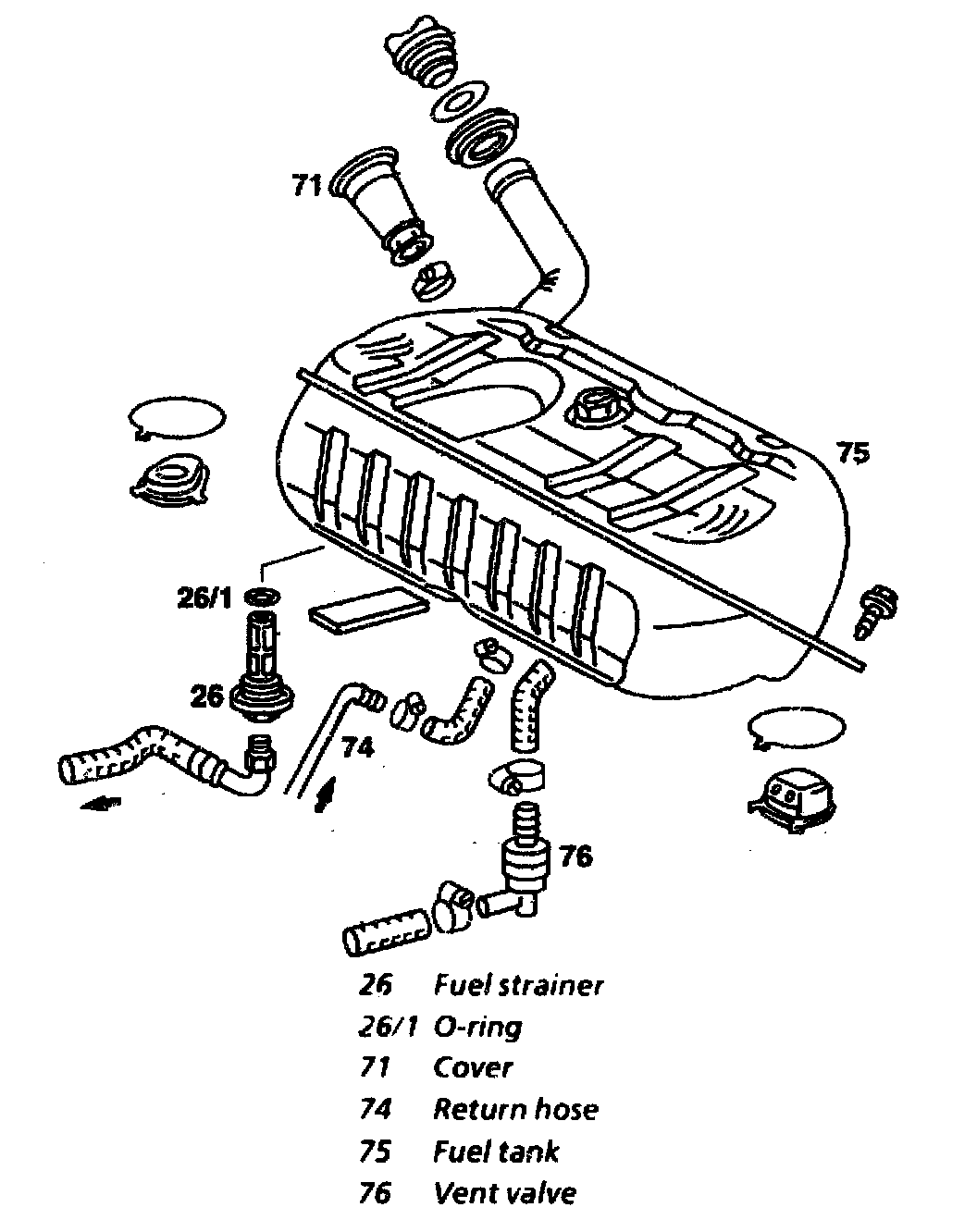

5 Remove vent valve (76) and fuel return hose (74). To do this, detach and hang exhaust system from the rubber rings. Remove left drive shaft at inner coupling flange.

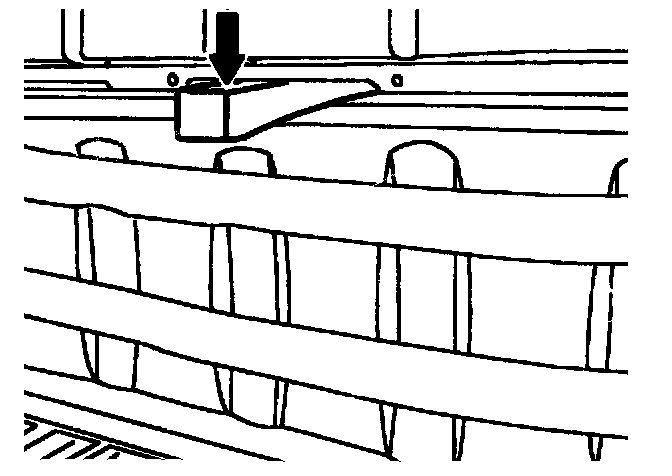

6 Remove fuel tank (75). If necessary lever out from the opening using plastic wedges (arrow) or similar. Pull fuel tank completely back to the left and take out at filler neck.
7 Install in reverse sequence. If there is insufficient space, remove fuel strainer (26) and install from below. Replace O-ring (26/1).
