Preparation For Test - Section 31

- Connect pressure gauge to test connection.
- After completing test, using measurement glass (055), release fuel pressure and allow residual fuel to drain into glass (see Figure 1).

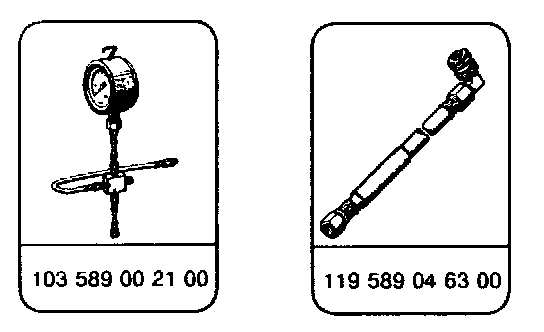

Special Tools:

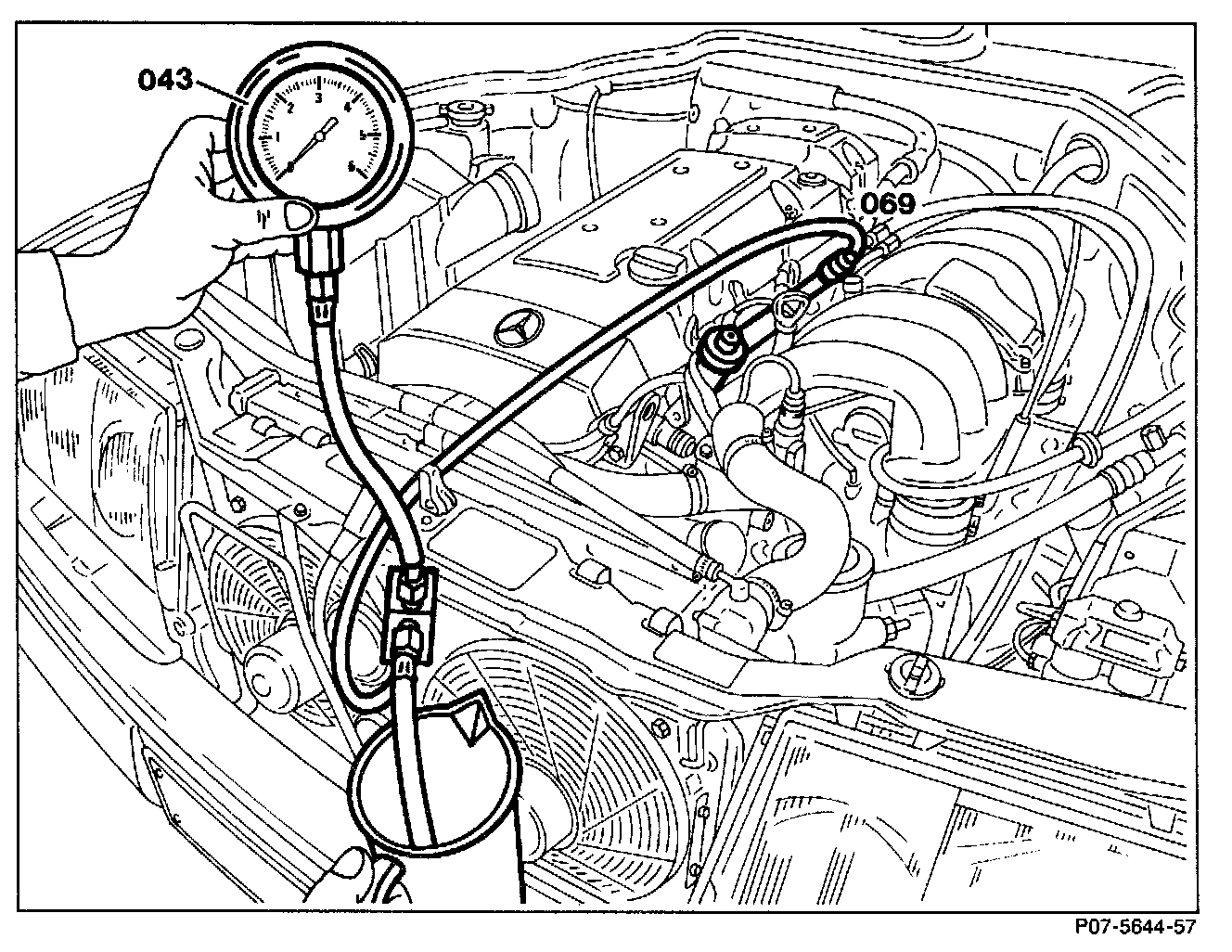

Figure 1:

043 Pressure gauge, part no. 103 589 00 21 00
055 Measurement glass
069 Pressure hose, part no. 119 589 04 63 00
