Preparation For Test - Section 33
- Connect socket box to engine control module (N3/4).

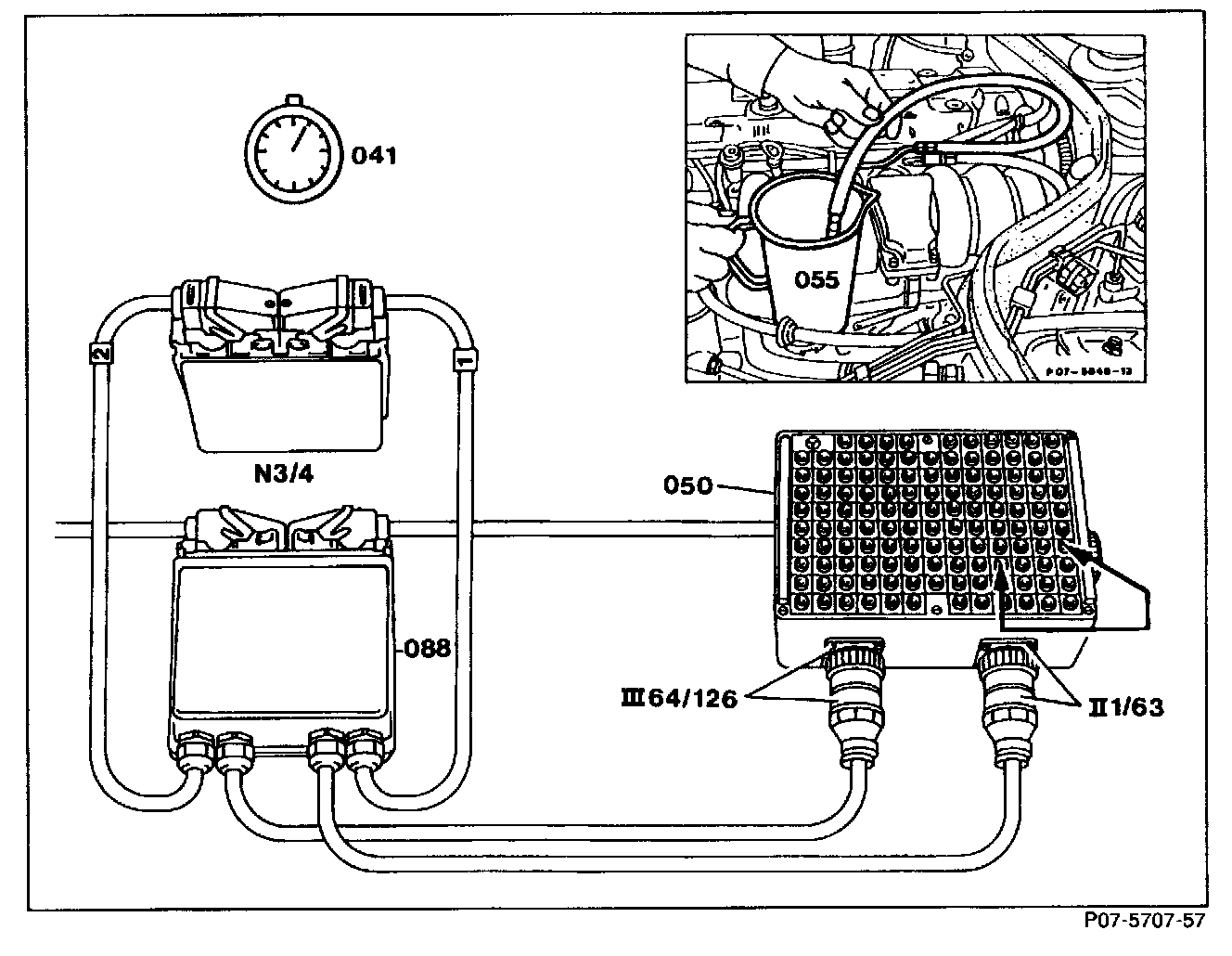

Figure 1:
003 Multimeter
041 Stop watch
050 Socket box (126-pole)
055 Measuring glass
088 Test cable

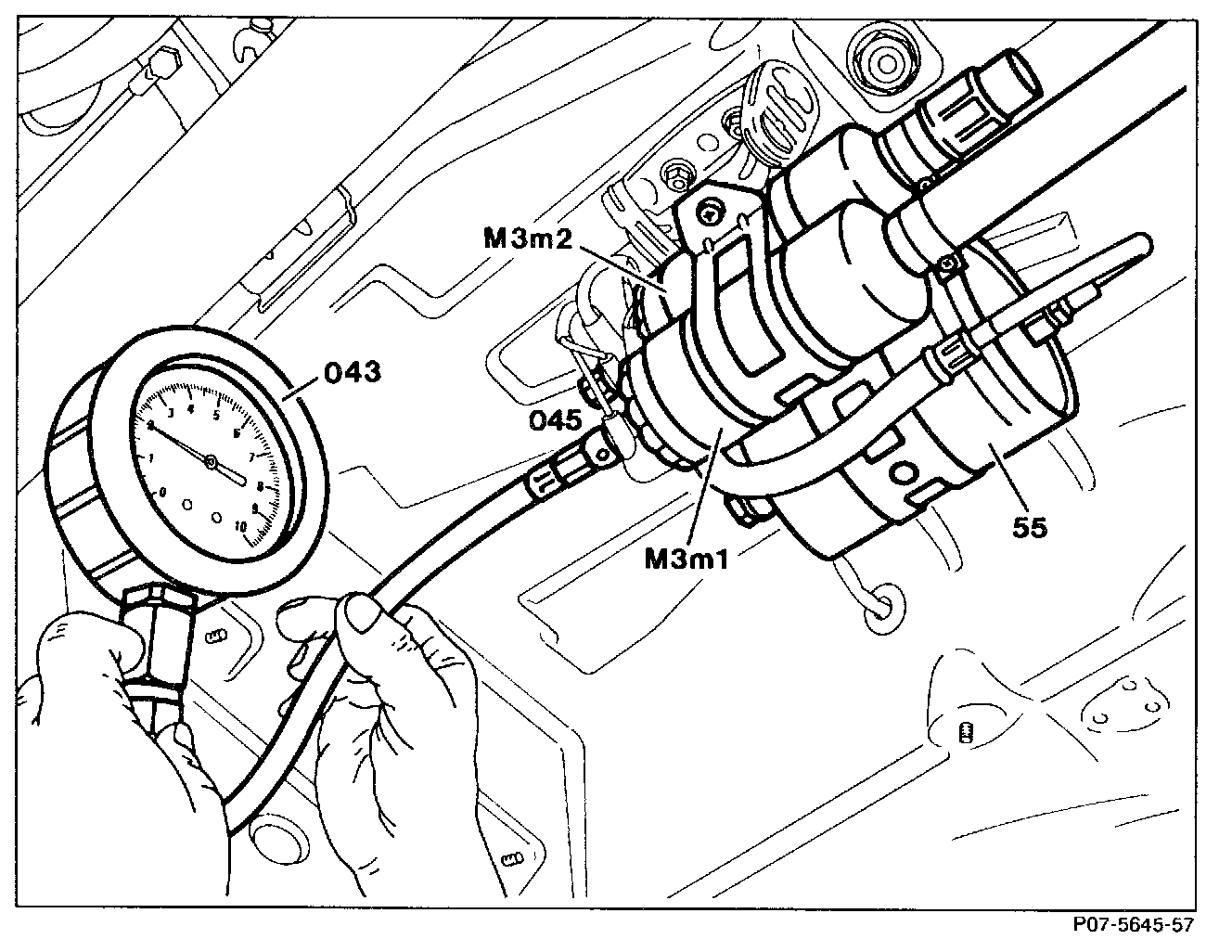

Figure 2:
043 Pressure gauge, part no. 103 589 00 21 00
045 Adaptor, part no. 103 589 02 63 00
55 Fuel filter
M3m1 Fuel pump 1
M3m2 Fuel pump 2

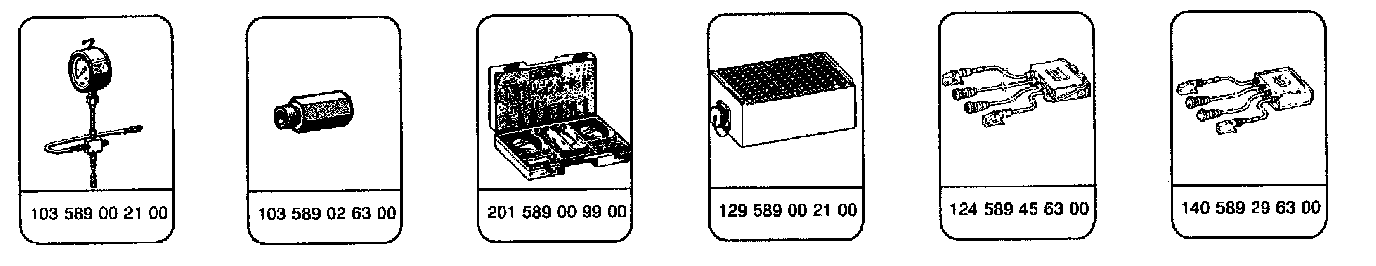

Special Tools:

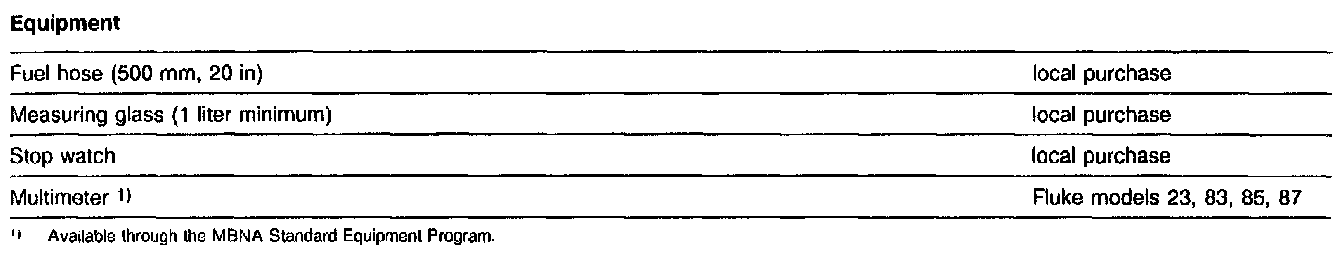

Equipment:
