Left Front Axle Speed Signal (VSS) PE00.19-U-2010YB

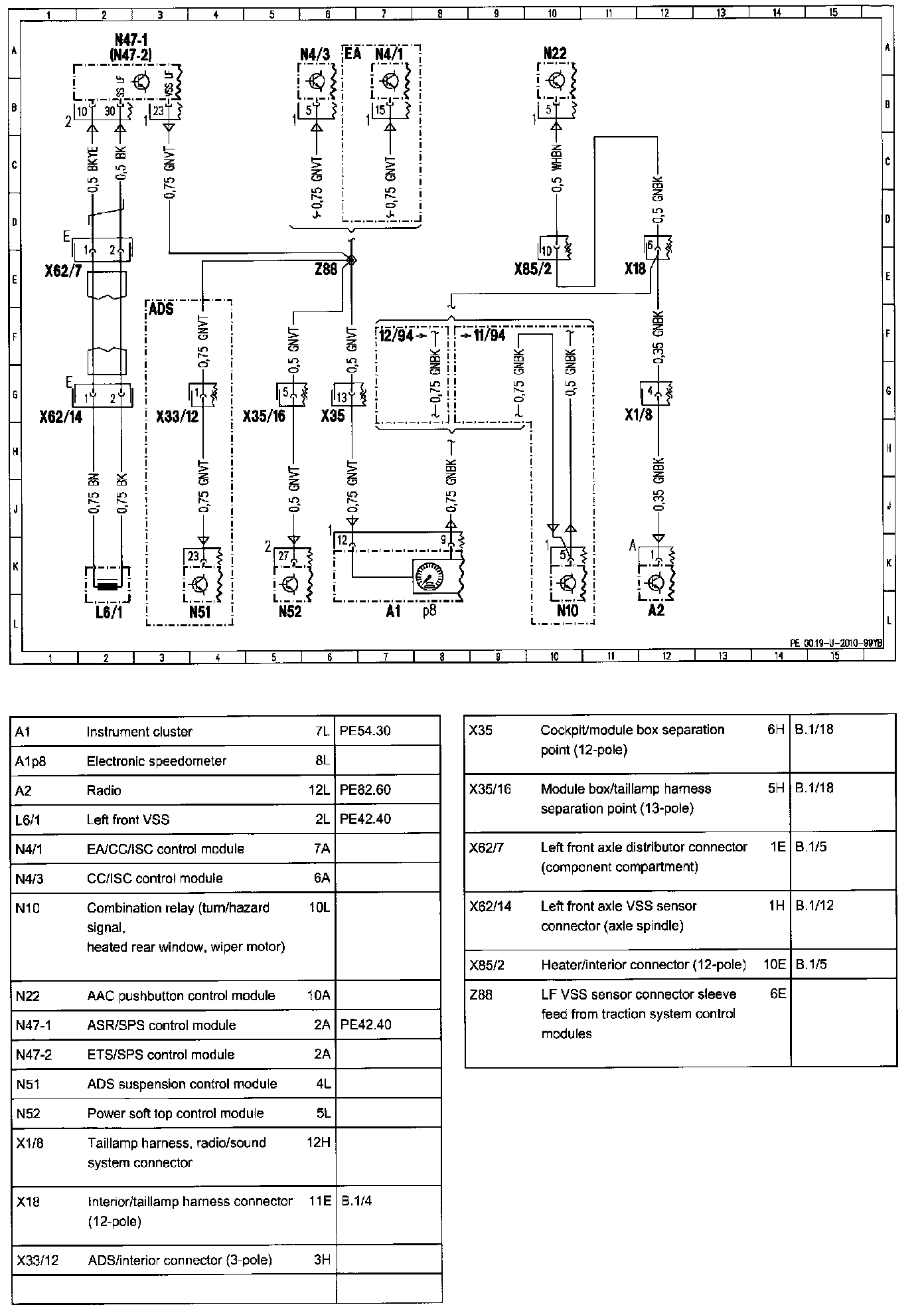

Wiring Diagram

PE00.19-U-2010YB - Left Front Axle VSS:

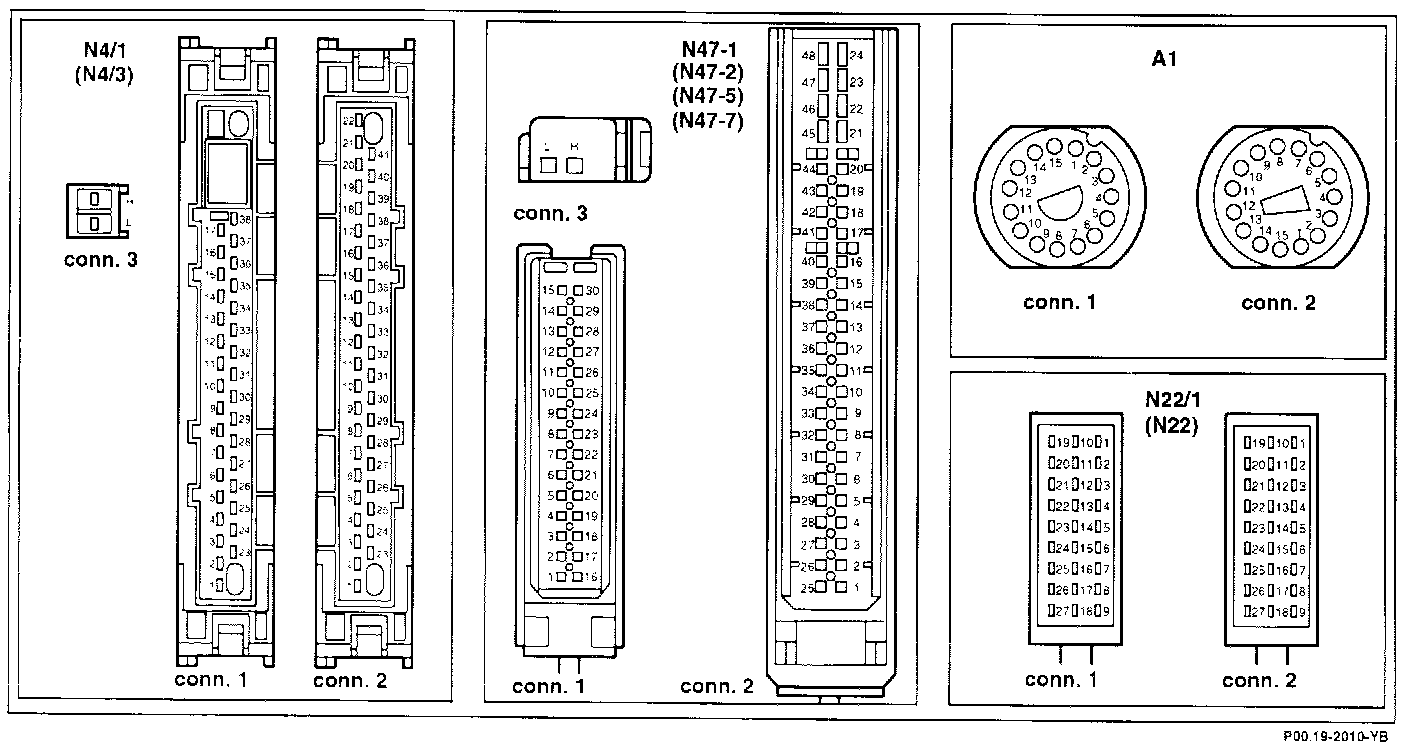

Connector Assignment:

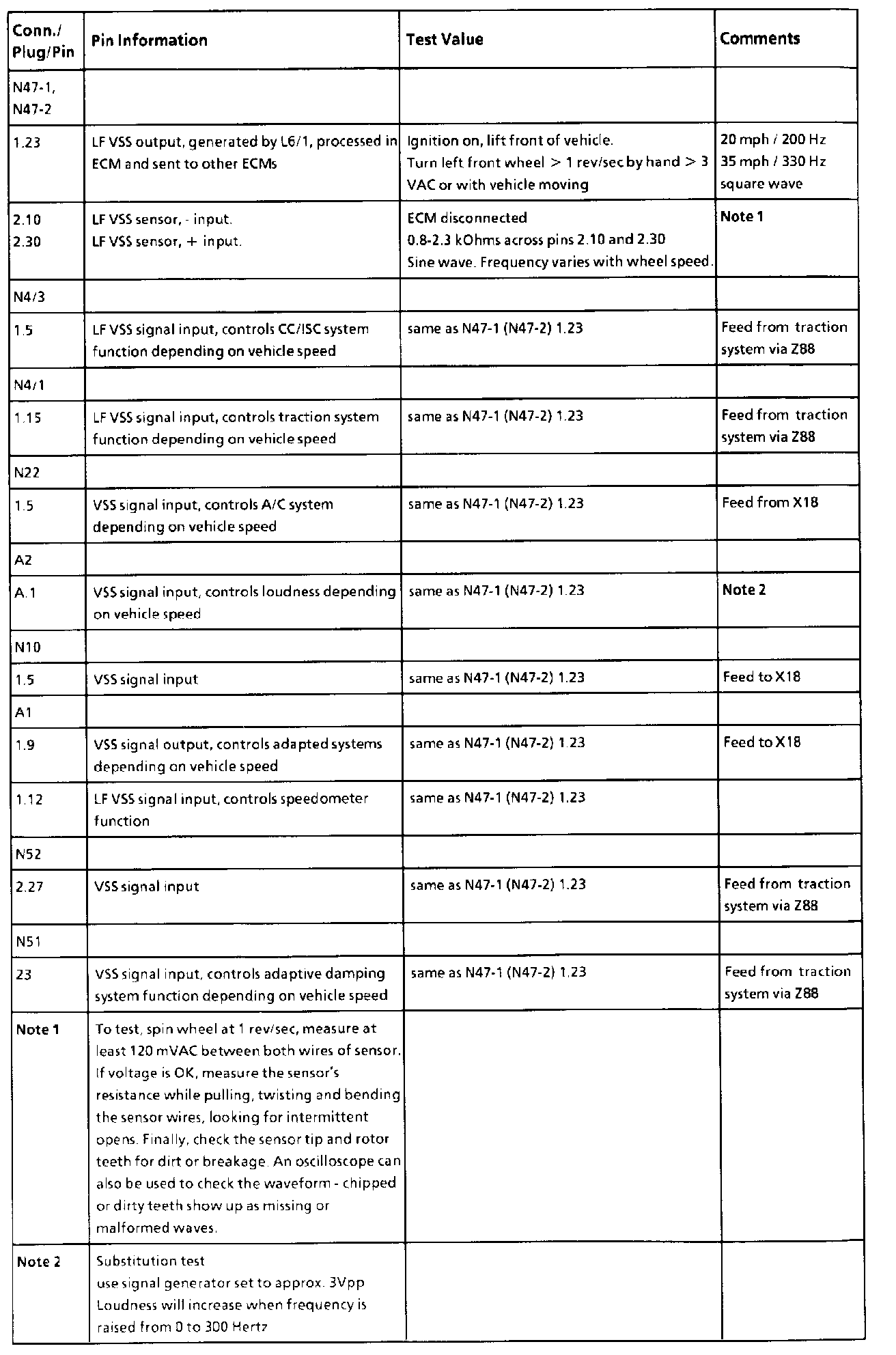

Pin Information:






All values measured to ground unless otherwise noted.
