Electrical Diagrams
Data Link Connector

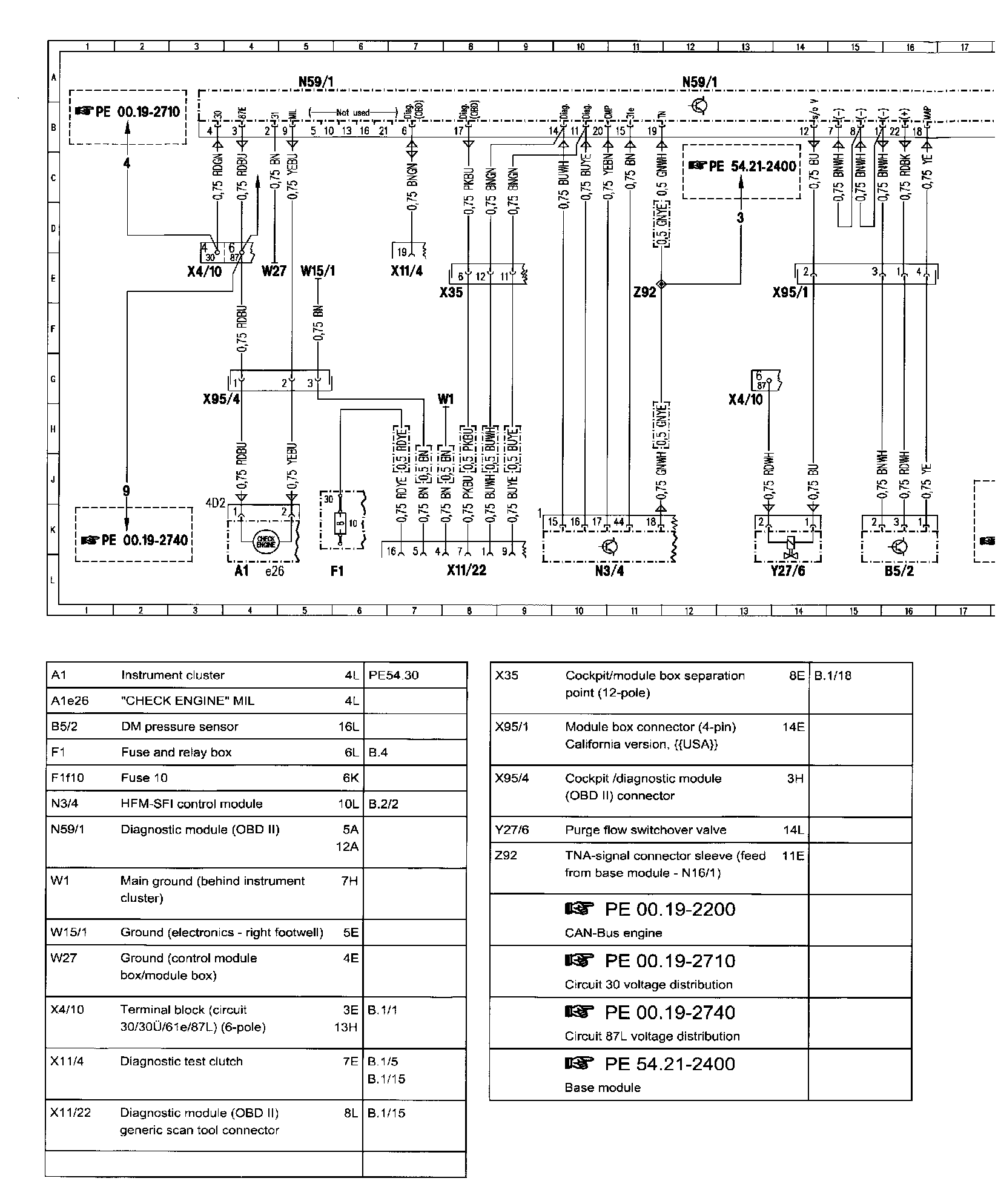

M��PE54.22-U-2000YC - OBD II:

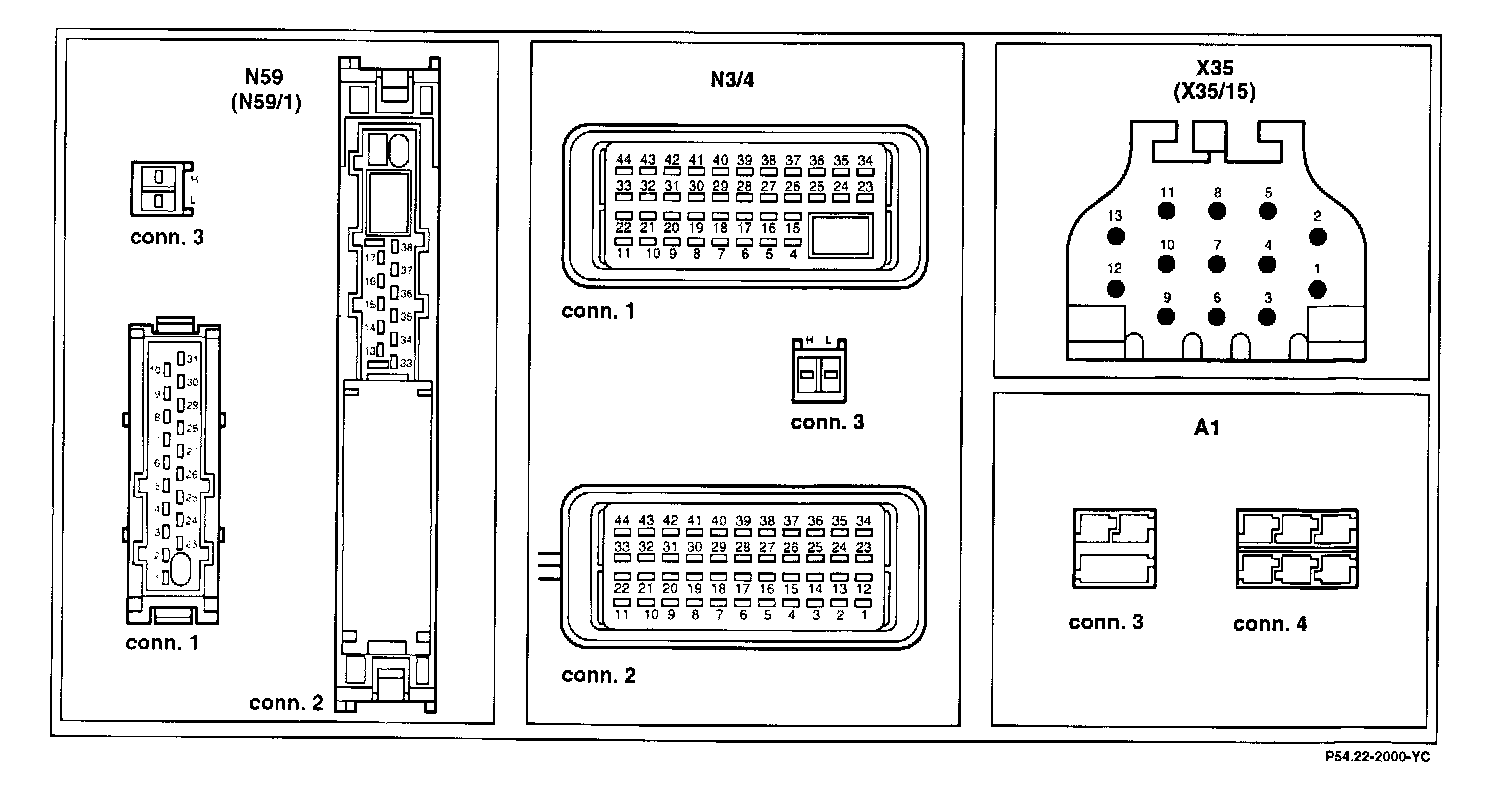

Connector Assignment:

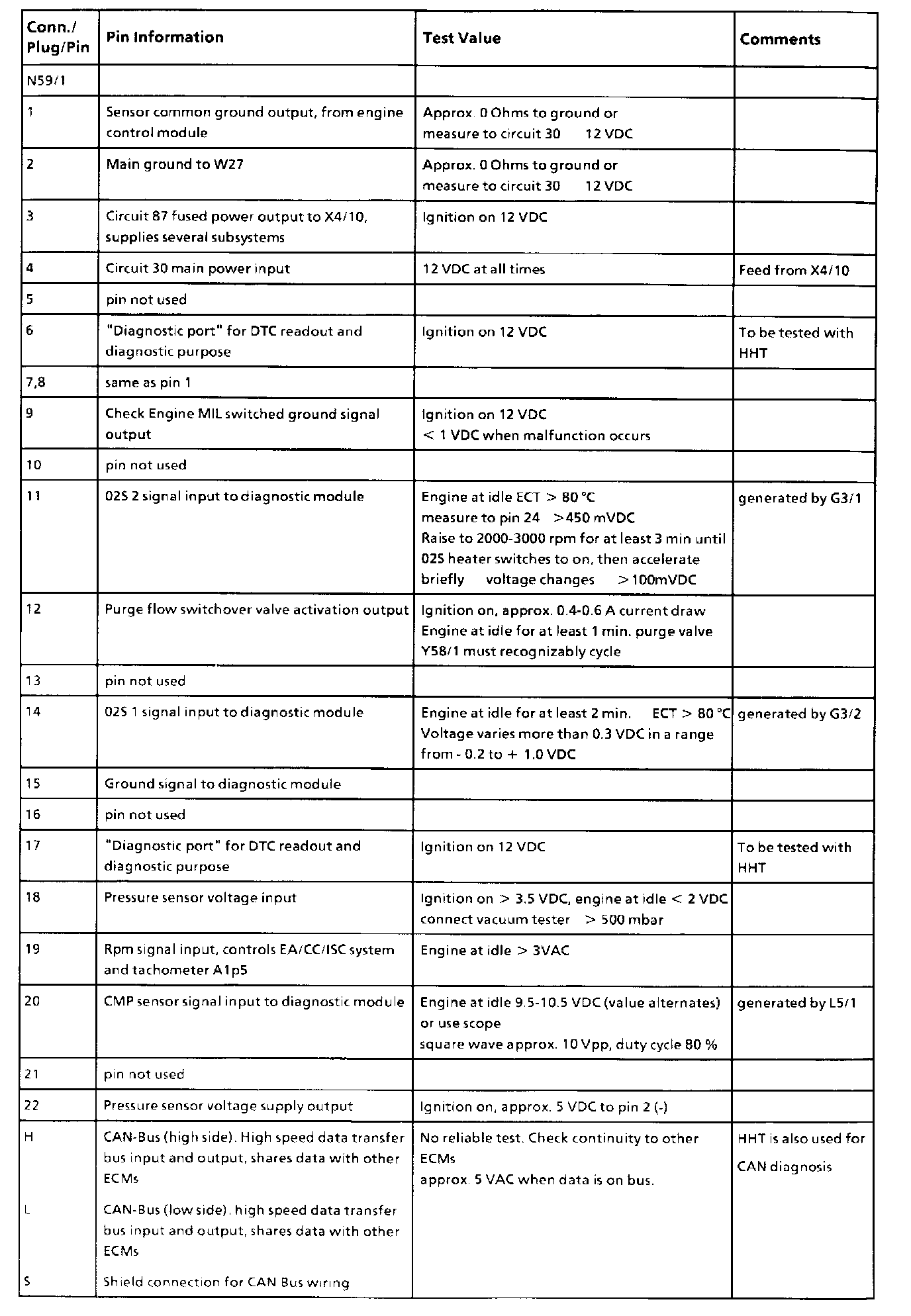

Pin Information, Part 1:

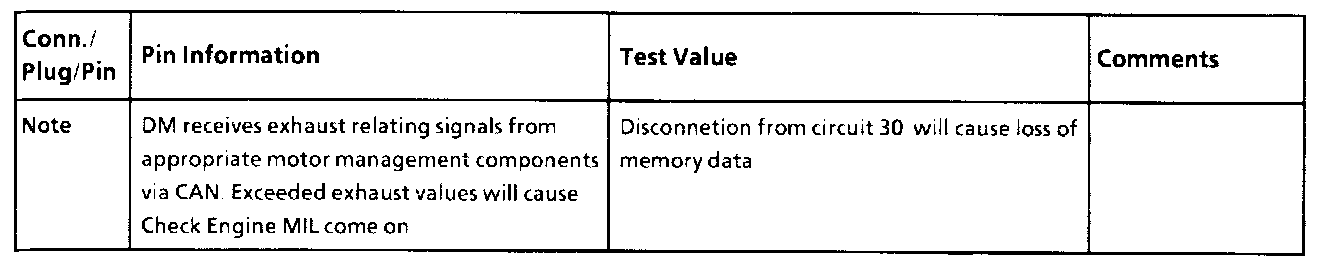

Pin Information, Part 2:
All values measured to ground unless otherwise noted
Data Link Connector
All values measured to ground unless otherwise noted
