SL 320 (129.063) L6-3.2L (104.991)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

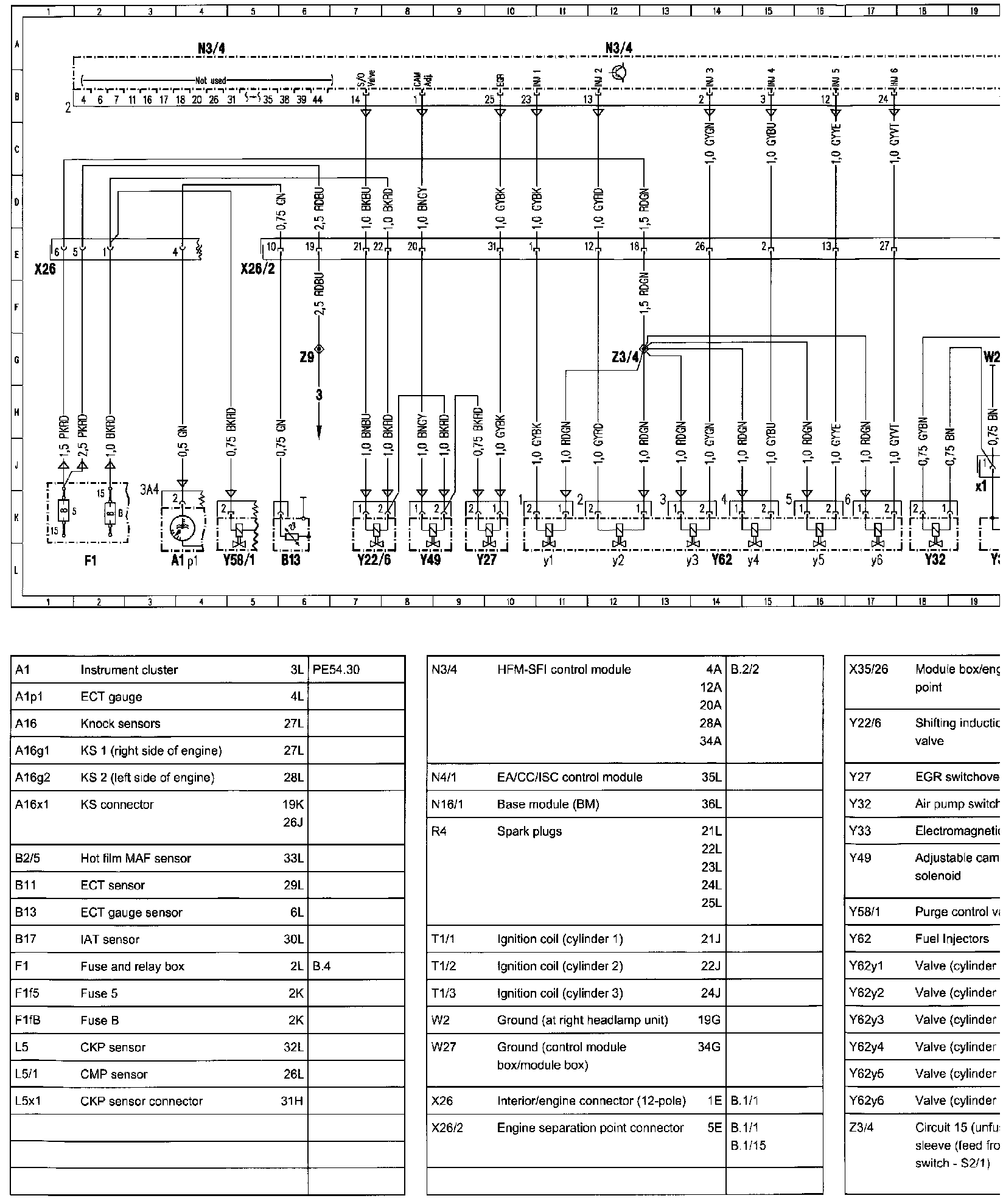

HFM-SFI Fuel Injection/Ignition System PE07.61-U-2000YB (Engine)
HFM-SFI Fuel Injection/Ignition System PE07.61-U-2000YB (Engine)
j} g� PE07.51-U-2000YB - HFM-SFI Fuel Injection/ Ignition System:
