Auto Dimming Inside Rear View Mirror PE68.49-U-2000YA
Auto Dimming Inside Rear View Mirror PE68.49-U-2000YA

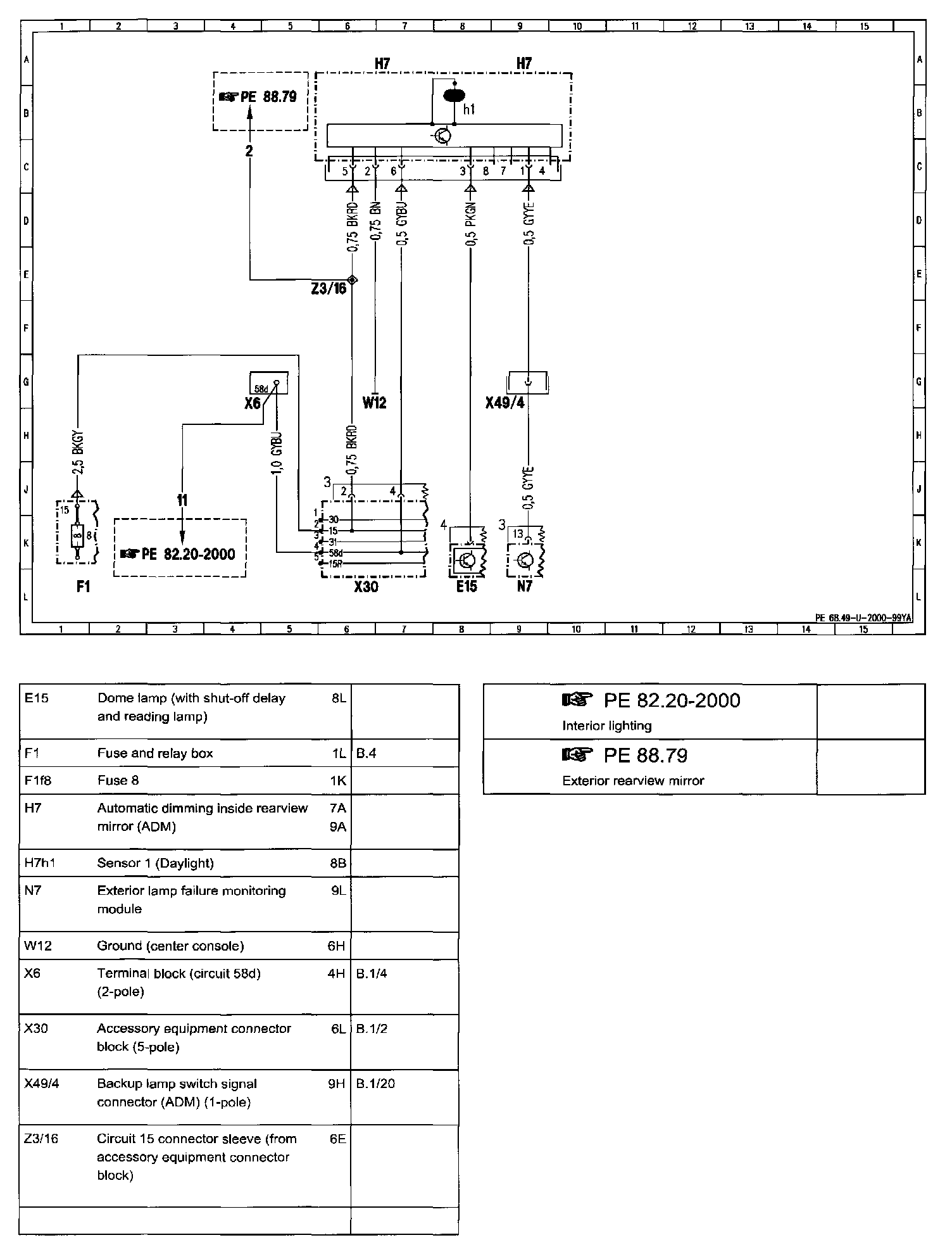

Wiring Diagram
PE68.49-U-2000YA:

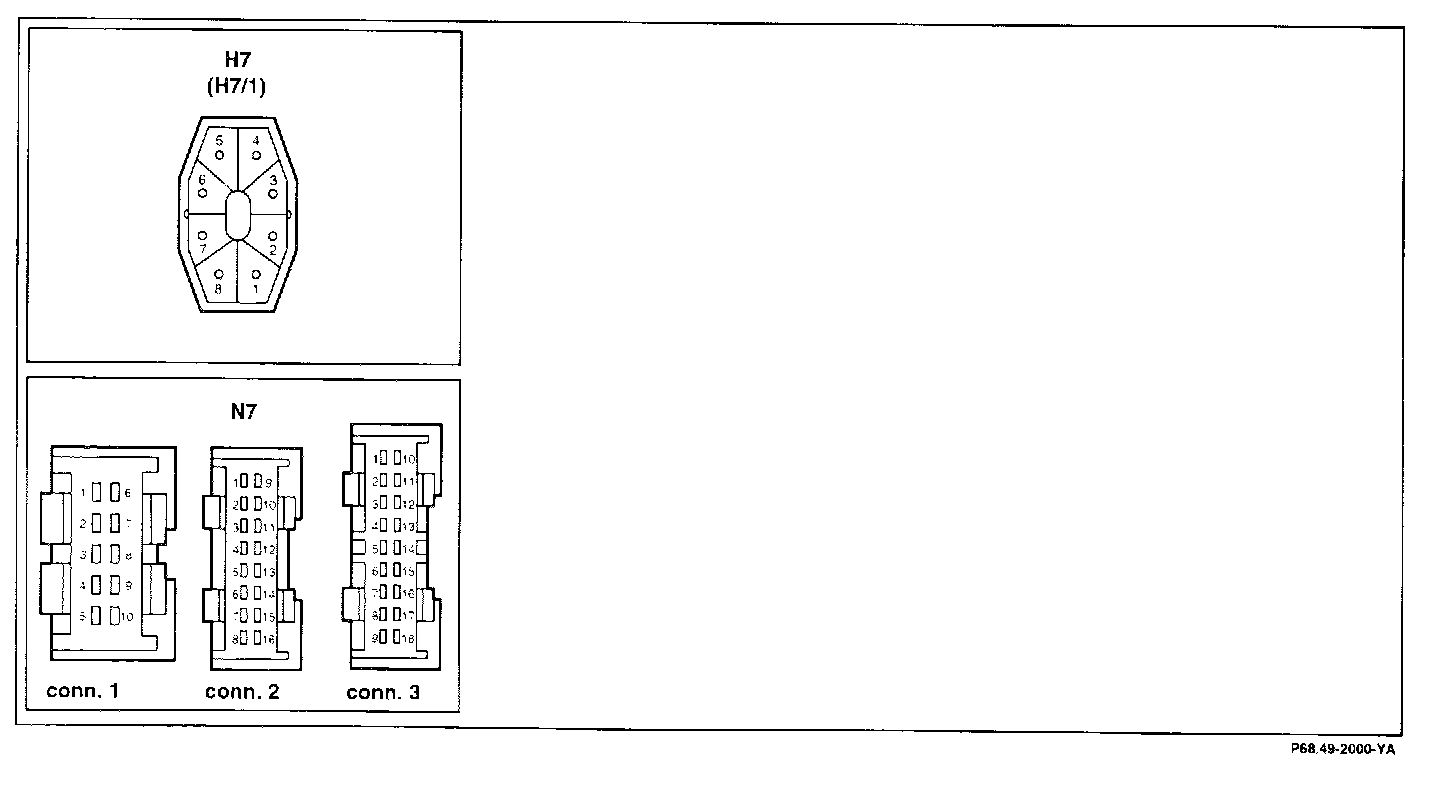

Connector Assignment:

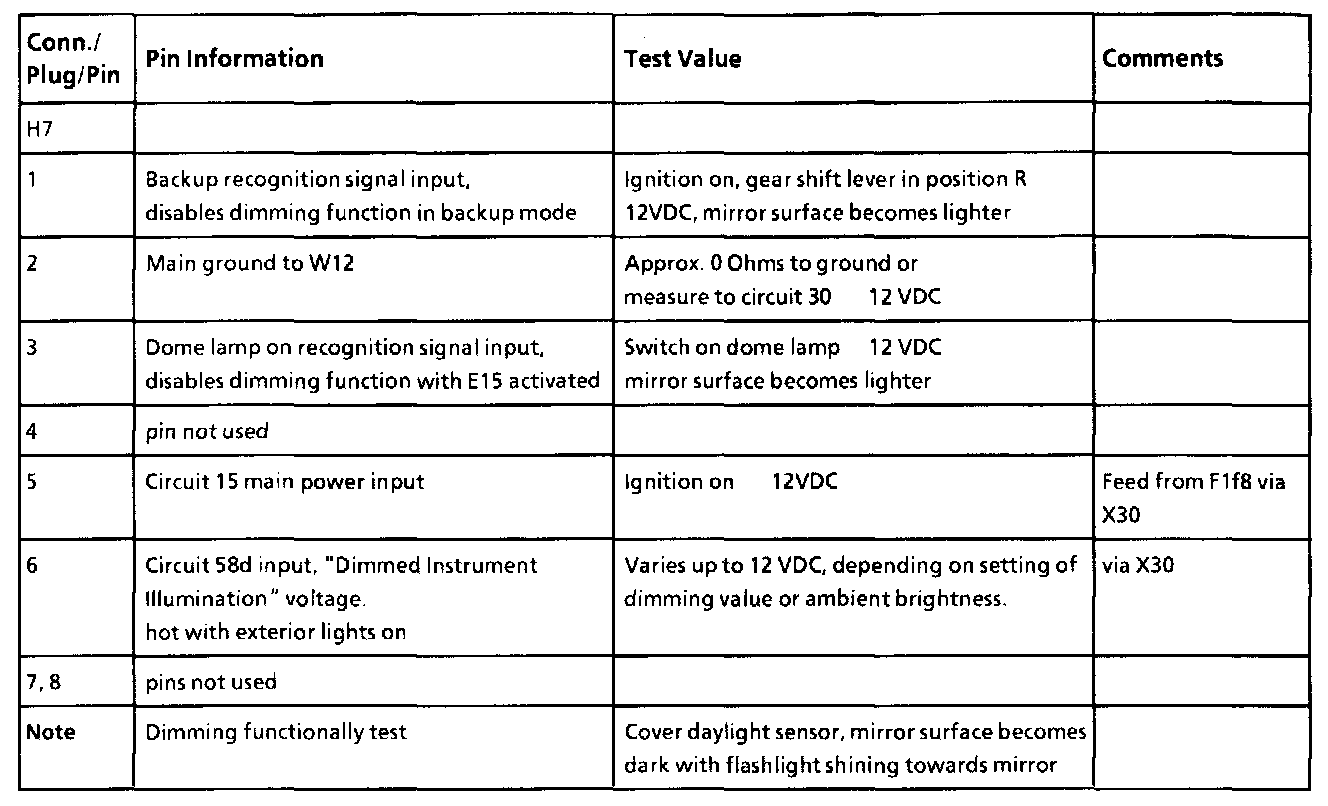

Pin Information:
All values measured to ground unless otherwise noted.
