Instrument Cluster (CLUS) PE54.30-U-2000YB (Part 1)

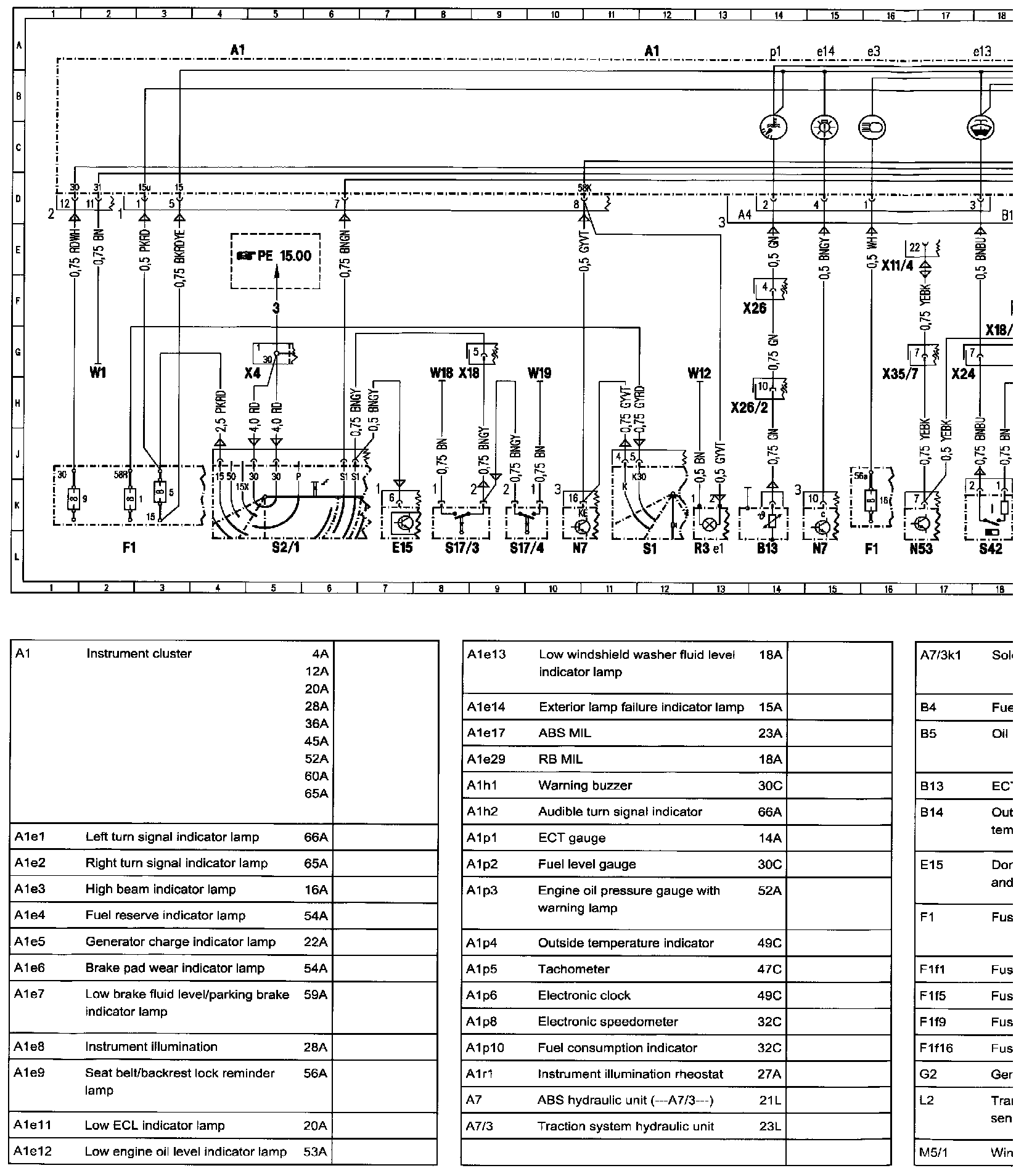

Instrument Cluster (CLUS)/Display Instruments/Warning Devices

V_�O���O/'�O�s�OPE54.30-U-2000YB:

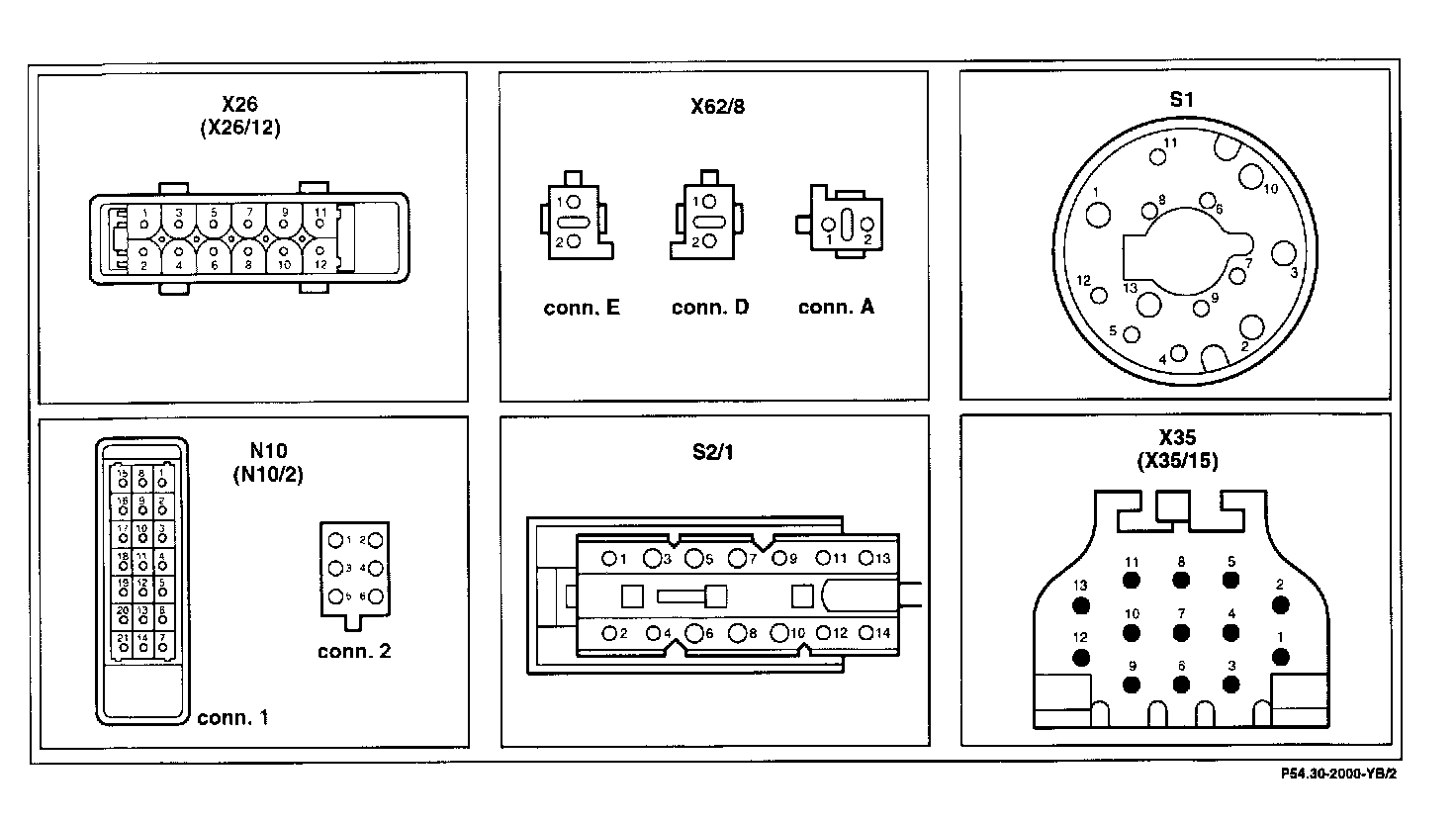

Connector Assignment:






Connector Assignment:

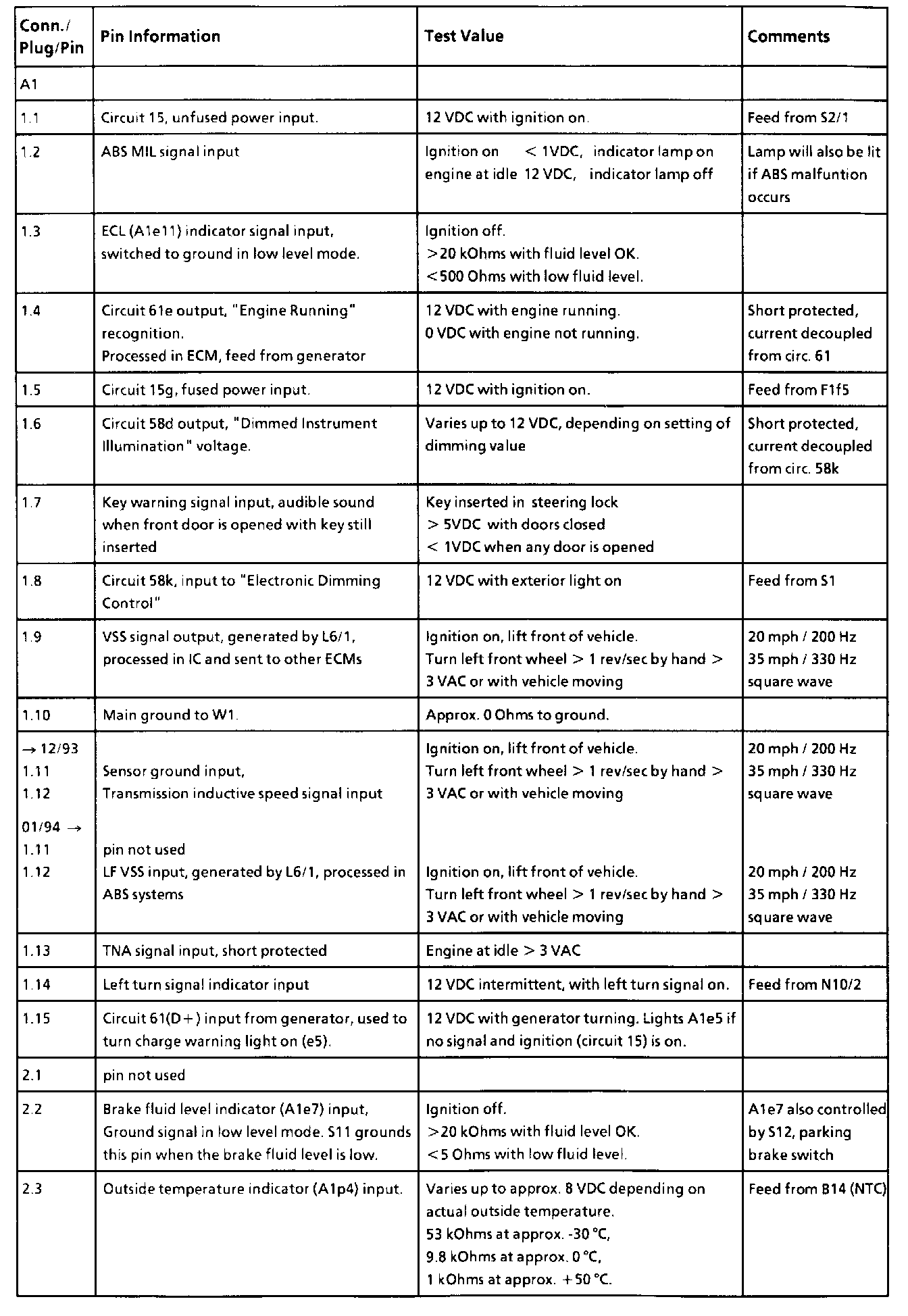

Pin Information, Part 1:

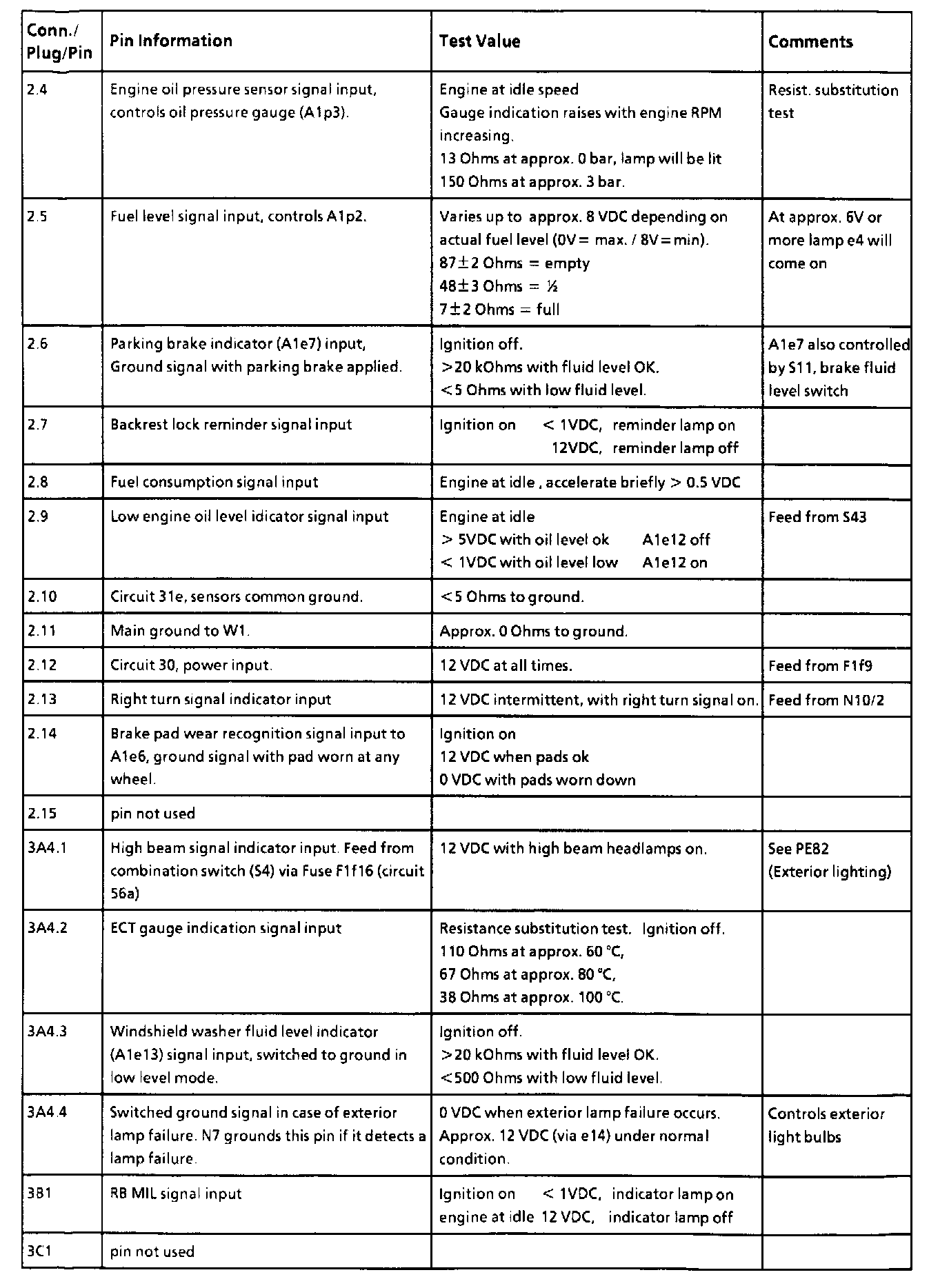

Pin Information, Part 2:








All values measured to ground unless otherwise noted.
